Carbide Spiral Flute Tap Metric 5CS
A French-brand spiral flute tap built from solid carbide, the 5CS, ideal for tapping blind (non-through) holes — its spiral flutes pull chips back toward the shank, keeping the hole bottom clear.

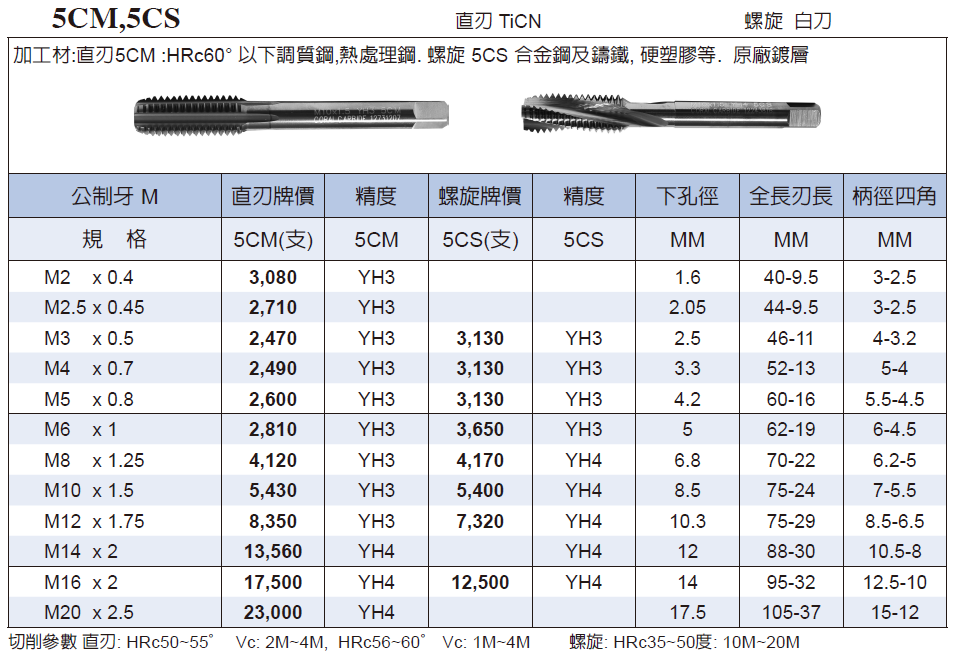

Specifications (7 items)
| Part No. | Standard | Dia. | Pitch | Flute L. | OAL | Shank Dia. | Square | Tol. Class |
|---|---|---|---|---|---|---|---|---|
| ANXCD5CSTC_M3-0.5 | Metric M | 3 | 0.5 | 11 | 46 | 4 | 3.2 | YH3 |
| ANXCD5CSTC_M4-0.7 | Metric M | 4 | 0.7 | 13 | 52 | 5 | 4 | YH3 |
| ANXCD5CSTC_M5-0.8 | Metric M | 5 | 0.8 | 16 | 60 | 5.5 | 4.5 | YH3 |
| ANXCD5CSTC_M6-1 | Metric M | 6 | 1 | 19 | 62 | 6 | 4.5 | YH3 |
| ANXCD5CSTC_M8-1.25 | Metric M | 8 | 1.25 | 22 | 70 | 6.2 | 5 | YH4 |
| ANXCD5CSTC_M10-1.5 | Metric M | 10 | 1.5 | 24 | 75 | 7 | 5.5 | YH4 |
| ANXCD5CSTC_M12-1.75 | Metric M | 12 | 1.75 | 18 | 82 | 8.5 | 6.5 | YH4 |
Specification Range
| Diameter | 3~12 |
|---|---|
| Pitch | 0.5~1.75 |
| Flute length | 11~24 |
| Effective length | 7.5~30mm |
| Overall length | 46~82 |
| Shank diameter | 4~8.5 |
Product Description
A French-brand spiral flute tap built from solid carbide, the 5CS, ideal for tapping blind (non-through) holes — its spiral flutes pull chips back toward the shank, keeping the hole bottom clear. Available in 7 sizes (thread dia 3~12, pitch 0.5~1.75, thread length 7.5~30mm, overall length 46~82mm, shank dia 4~8.5mm). A TiCN coating boosts wear resistance and tool life. Suitable for machining carbon and alloy steel, cast iron, non-ferrous metals like aluminium and copper, workpiece hardness up to HRC50. French brand, consistent quality.
Workpiece Materials & Hardness
- Steel (P)
- Cast iron (K)
- Non-ferrous metals (N)
Max. workpiece hardness HRC50
