HSS Titanium Alloy Spiral Flute Tap UNF 5ZFS
The UNF 5ZFS is a French-brand spiral flute tap made of powder-metallurgy HSS, ideal for tapping blind (non-through) holes — its spiral flutes pull chips back toward the shank, keeping the hole bottom clear.

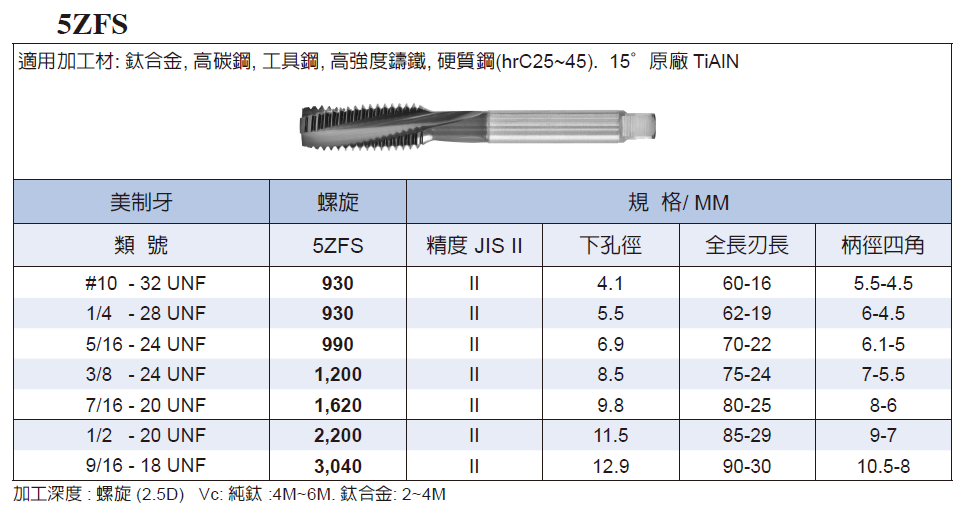

Specifications (9 items)
| Part No. | Standard | Dia. | Pitch | Flute L. | OAL | Shank Dia. | Square | Tol. Class |
|---|---|---|---|---|---|---|---|---|
| ANXCD5ZFSTA_UNF#10-32 | UNF | #10 | 32 | 16 | 60 | 5.5 | 4.5 | II |
| ANXCD5ZFSTA_UNF1/4-28 | UNF | 1/4 | 28 | 19 | 62 | 6 | 4.5 | II |
| ANXCD5ZFSTA_UNF5/16-24 | UNF | 5/16 | 24 | 22 | 70 | 6.1 | 5 | II |
| ANXCD5ZFSTA_UNF3/8-24 | UNF | 3/8 | 24 | 24 | 75 | 7 | 5.5 | II |
| ANXCD5ZFSTA_UNF7/16-20 | UNF | 7/16 | 20 | 25 | 80 | 8 | 6 | II |
| ANXCD5ZFSTA_UNF1/2-20 | UNF | 1/2 | 20 | 29 | 85 | 9 | 7 | II |
| ANXCD5ZFSTA_UNF9/16-18 | UNF | 9/16 | 18 | 30 | 90 | 10.5 | 8 | II |
| ANXCD5ZFSTA_UNF5/8-18 | UNF | 5/8 | 18 | 32 | 95 | 12 | 9 | II |
| ANXCD5ZFSTA_UNF3/4-16 | UNF | 3/4 | 16 | 37 | 105 | 14 | 11 | II |
Specification Range
| Diameter | #10~3/4 |
|---|---|
| Pitch | 16~32 |
| Flute length | 16~37 |
| Overall length | 60~105 |
| Shank diameter | 5.5~14 |
| Depth ratio | 2.5 |
Product Description
The UNF 5ZFS is a French-brand spiral flute tap made of powder-metallurgy HSS, ideal for tapping blind (non-through) holes — its spiral flutes pull chips back toward the shank, keeping the hole bottom clear. Available in 9 sizes (thread dia 1~9, pitch 16~32, thread length 2.5mm, overall length 60~105mm, shank dia 5.5~14mm). A TiAlN coating offers high-temperature wear resistance. Suitable for machining carbon and alloy steel, cast iron, workpiece hardness up to HRC45. French brand, consistent quality.
Workpiece Materials & Hardness
- Steel (P)
- Cast iron (K)
Max. workpiece hardness HRC45
Tags
- Fine Thread
- For Titanium Alloy
