High Speed PM Spiral Point Tap Metric 5HMC
Made of powder-metallurgy HSS, the 5HMC is a French-brand spiral point tap, ideal for tapping through holes — its spiral point pushes chips forward for fast, clean threading.

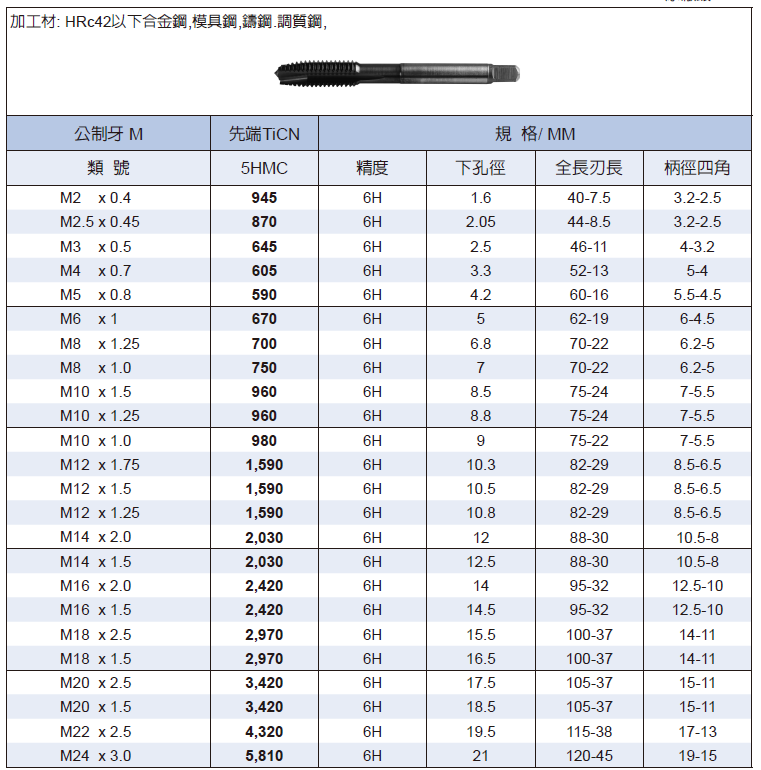

Specifications (25 items)
| Part No. | Standard | Dia. | Pitch | Flute L. | OAL | Shank Dia. | Square | Tol. Class |
|---|---|---|---|---|---|---|---|---|
| ANVCD5HMCTC_M2-0.4 | Metric M | 2 | 0.4 | 7.5 | 40 | 3.2 | 2.5 | 6H |
| ANVCD5HMCTC_M2.2-0.45 | Metric M | 2.2 | 0.45 | 9.5 | 42 | 3.2 | 2.5 | |
| ANVCD5HMCTC_M2.5-0.45 | Metric M | 2.5 | 0.45 | 8.5 | 44 | 3.2 | 2.5 | 6H |
| ANVCD5HMCTC_M3-0.5 | Metric M | 3 | 0.5 | 11 | 46 | 4 | 3.2 | 6H |
| ANVCD5HMCTC_M3.5-0.6 | Metric M | 3.5 | 0.6 | 4.2 | 48 | 4 | 3.2 | 6H |
| ANVCD5HMCTC_M4-0.7 | Metric M | 4 | 0.7 | 13 | 52 | 5 | 4 | 6H |
| ANVCD5HMCTC_M5-0.8 | Metric M | 5 | 0.8 | 16 | 60 | 5.5 | 4.5 | 6H |
| ANVCD5HMCTC_M6-1 | Metric M | 6 | 1 | 19 | 62 | 6 | 4.5 | 6H |
| ANVCD5HMCTC_M8-1.25 | Metric M | 8 | 1.25 | 22 | 70 | 6.2 | 5 | 6H |
| ANVCD5HMCTC_M8-1 | Metric M | 8 | 1 | 22 | 70 | 6.2 | 5 | 6H |
| ANVCD5HMCTC_M10-1.5 | Metric M | 10 | 1.5 | 24 | 75 | 7 | 5.5 | 6H |
| ANVCD5HMCTC_M10-1.25 | Metric M | 10 | 1.25 | 24 | 75 | 7 | 5.5 | 6H |
| ANVCD5HMCTC_M10-1 | Metric M | 10 | 1 | 22 | 75 | 7 | 5.5 | 6H |
| ANVCD5HMCTC_M12-1.75 | Metric M | 12 | 1.75 | 29 | 82 | 8.5 | 6.5 | 6H |
| ANVCD5HMCTC_M12-1.25 | Metric M | 12 | 1.25 | 29 | 82 | 8.5 | 6.5 | 6H |
| ANVCD5HMCTC_M14-2 | Metric M | 14 | 2 | 30 | 88 | 10.5 | 8 | 6H |
| ANVCD5HMCTC_M14-1.5 | Metric M | 14 | 1.5 | 30 | 88 | 10.5 | 8 | 6H |
| ANVCD5HMCTC_M16-2 | Metric M | 16 | 2 | 32 | 95 | 12.5 | 10 | 6H |
| ANVCD5HMCTC_M16-1.5 | Metric M | 16 | 1.5 | 32 | 95 | 12.5 | 10 | 6H |
| ANVCD5HMCTC_M18-2.5 | Metric M | 18 | 2.5 | 37 | 100 | 14 | 11 | 6H |
| ANVCD5HMCTC_M18-1.5 | Metric M | 18 | 1.5 | 37 | 100 | 14 | 11 | 6H |
| ANVCD5HMCTC_M20-2.5 | Metric M | 20 | 2.5 | 37 | 105 | 15 | 11 | 6H |
| ANVCD5HMCTC_M20-1.5 | Metric M | 20 | 1.5 | 37 | 105 | 15 | 11 | 6H |
| ANVCD5HMCTC_M22-2.5 | Metric M | 22 | 2.5 | 38 | 115 | 17 | 13 | 6H |
| ANVCD5HMCTC_M24-3 | Metric M | 24 | 3 | 45 | 120 | 19 | 15 | 6H |
Specification Range
| Diameter | 2~24 |
|---|---|
| Pitch | 0.4~3 |
| Flute length | 4.2~45 |
| Effective length | 6~72mm |
| Overall length | 40~120 |
| Shank diameter | 3.2~19 |
Product Description
Made of powder-metallurgy HSS, the 5HMC is a French-brand spiral point tap, ideal for tapping through holes — its spiral point pushes chips forward for fast, clean threading. Available in 25 sizes (thread dia 2~24, pitch 0.4~3, thread length 6~72mm, overall length 40~120mm, shank dia 3.2~19mm). A TiCN coating boosts wear resistance and tool life. Suitable for machining carbon and alloy steel, stainless steel, workpiece hardness up to HRC42. French brand, consistent quality.
Workpiece Materials & Hardness
- Steel (P)
- Stainless steel (M)
Max. workpiece hardness HRC42
