ANVCD5USLTLong Shank Spiral Point Tap UNC 5USLTSold0pcsA South African-brand spiral point tap built from HSS-EX, the UNC 5USLT, ideal for tapping through holes — its spiral point pushes chips forward for fast, clean threading. Available in 19 sizes (thread dia 1~5, pitch 13~40, thread length 3mm, overall length 100~150mm, shank dia 3~9mm). A TiN coating adds a hard golden film for better wear and anti-galling, extending tool life. Suitable for machining carbon and alloy steel, stainless steel, cast iron, workpiece hardness up to HRC30. South African brand, consistent quality.
Product Categories
Tags
Long Shank Tap
Product Overview: HSS Long Shank Spiral Point Tap Tiger UNC – 5USLT Series
【Product Features & Why We Recommend It】
- South African Brand Professional Quality: Originating from a professional South African cutting tool brand with rigorous quality control — recommended for users with standard demands on UNC long shank thread tapping stability and multi-material versatility.
- Tiger UNC Long Shank Deep-Cavity Solution: Features Tiger (TIGER) spiral point tap geometry combined with a long shank design — with overall length spanning 100–150mm, providing greater reach than standard shank models, recommended for UNC thread tapping in deep cavities, deep-cavity structures, or fixture interference situations where standard shank length cannot reach.
- HSS-EX Ultra-High Performance Substrate: Manufactured with HSS-EX ultra-high performance high-speed steel, delivering superior hardness, toughness, and wear resistance compared to standard HSS and HSS-CO — recommended for long-duration stable long shank UNC tapping of carbon steel, stainless steel, and cast iron.
- TiN Coating Enhancement: The surface is treated with TiN coating, providing good wear resistance and heat resistance — recommended for continuous UNC long shank tapping of carbon steel, alloy steel, stainless steel, and cast iron, effectively extending tool change intervals.
- Spiral Point Through-Hole Design: Features a spiral point tap design that pushes chips forward and out of the hole — recommended for multi-material UNC long shank through-hole tapping operations, ensuring smooth chip evacuation in deep cavities and thread accuracy.

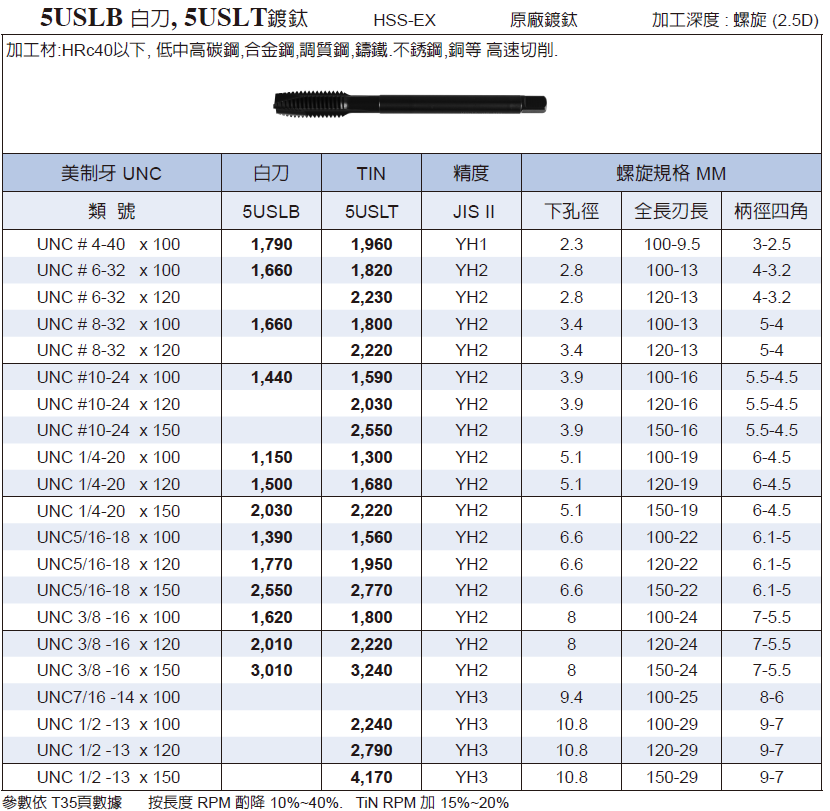

- 19 UNC Specification Precise Coverage: Available in thread diameter 1–5 inches and pitch 13–40 TPI across 19 specifications — recommended as the dedicated long shank stock tool for deep-cavity UNC through-hole tapping, covering common North American specification deep-cavity workpiece tapping requirements.
【Machining Applications & Uses】
- Primary Use: UNC deep-cavity through-hole thread tapping, extended-reach deep-cavity structure UNC thread forming, and NC machining center long shank UNC automatic tapping.
- Recommended Work Materials:
- P-Class (Carbon Steel / Alloy Steel): Structural steel, carbon steel, and alloy steel — recommended for hardness below HRC30, where HSS-EX combined with TiN coating delivers stable long shank deep-cavity UNC tapping performance.
- M-Class (Stainless Steel): SUS304, SUS316, and other high-toughness stainless steel — the Tiger geometry combined with HSS-EX substrate effectively addresses work hardening and continuous chip formation challenges during deep-cavity machining, recommended for use with appropriate cutting fluid.
- K-Class (Cast Iron): Cast iron and gray iron — the TiN coating provides outstanding wear-resistant long shank UNC tapping tool life.
