PM General Purpose Spiral Flute Tap UNF 5FS
A French-brand spiral flute tap built from powder-metallurgy HSS, the UNF 5FS, ideal for tapping blind (non-through) holes — its spiral flutes pull chips back toward the shank, keeping the hole bottom clear.
Specifications (28 items)

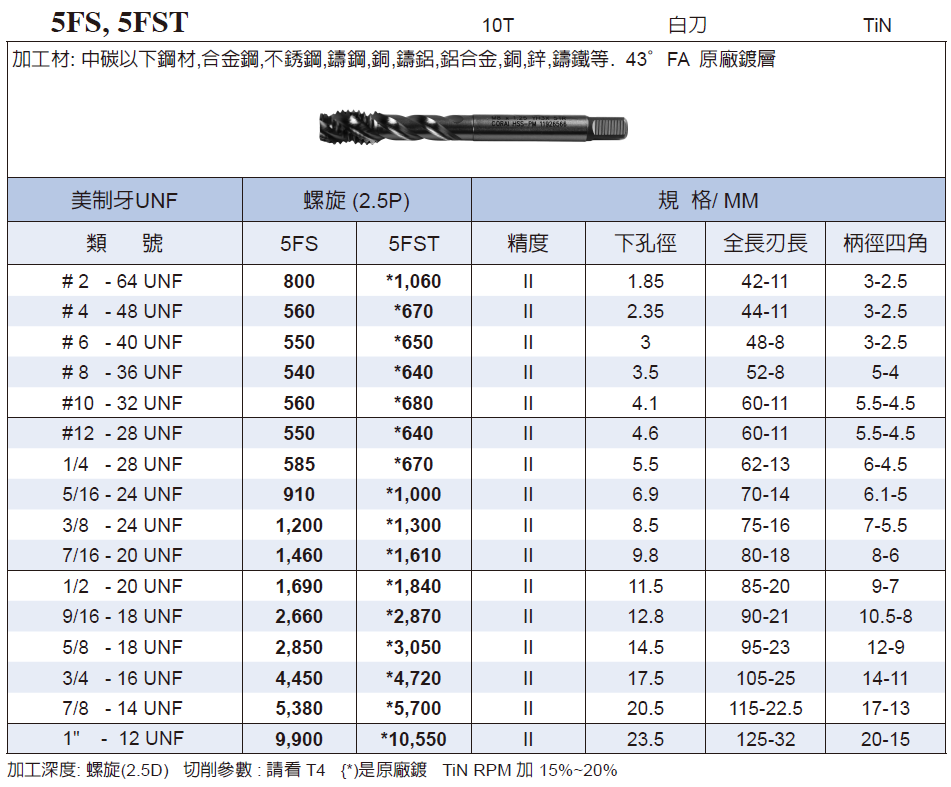

| Part No. | Standard | Dia. | Pitch | Flute L. | OAL | Shank Dia. | Square | Tol. Class | Helix |
|---|---|---|---|---|---|---|---|---|---|
| ANXCD5FS_UNF#2-64 | UNF | #2 | 64 | 11 | 42 | 3 | 2.5 | II | 43 |
| ANXCD5FST_UNF#2-64 | UNF | #2 | 64 | 11 | 42 | 3 | 2.5 | II | 43 |
| ANXCD5FS_UNF#4-48 | UNF | #4 | 48 | 11 | 44 | 3 | 2.5 | II | 43 |
| ANXCD5FST_UNF#4-48 | UNF | #4 | 48 | 11 | 44 | 3 | 2.5 | II | 43 |
| ANXCD5FS_UNF#6-40 | UNF | #6 | 40 | 8 | 48 | 3 | 2.5 | II | 43 |
| ANXCD5FST_UNF#6-40 | UNF | #6 | 40 | 8 | 48 | 3 | 2.5 | II | 43 |
| ANXCD5FS_UNF#8-36 | UNF | #8 | 36 | 8 | 52 | 5 | 4 | II | 43 |
| ANXCD5FST_UNF#8-36 | UNF | #8 | 36 | 8 | 52 | 5 | 4 | II | 43 |
| ANXCD5FS_UNF#10-32 | UNF | #10 | 32 | 11 | 60 | 5.5 | 4.5 | II | 43 |
| ANXCD5FST_UNF#10-32 | UNF | #10 | 32 | 11 | 60 | 5.5 | 4.5 | II | 43 |
| ANXCD5FS_UNF#12-28 | UNF | #12 | 28 | 11 | 60 | 5.5 | 4.5 | II | 43 |
| ANXCD5FST_UNF#12-28 | UNF | #12 | 28 | 11 | 60 | 5.5 | 4.5 | II | 43 |
| ANXCD5FS_UNF1/4-28 | UNF | 1/4 | 28 | 13 | 62 | 6 | 4.5 | II | 43 |
| ANXCD5FST_UNF1/4-28 | UNF | 1/4 | 28 | 13 | 62 | 6 | 4.5 | II | 43 |
| ANXCD5FS_UNF5/16-24 | UNF | 5/16 | 24 | 14 | 70 | 6.1 | 5 | II | 43 |
| ANXCD5FST_UNF5/16-24 | UNF | 5/16 | 24 | 14 | 70 | 6.1 | 5 | II | 43 |
| ANXCD5FS_UNF3/8-24 | UNF | 3/8 | 24 | 16 | 75 | 7 | 5.5 | II | 43 |
| ANXCD5FST_UNF3/8-24 | UNF | 3/8 | 24 | 16 | 75 | 7 | 5.5 | II | 43 |
| ANXCD5FS_UNF7/16-20 | UNF | 7/16 | 20 | 18 | 80 | 8 | 6 | II | 43 |
| ANXCD5FST_UNF7/16-20 | UNF | 7/16 | 20 | 18 | 80 | 8 | 6 | II | 43 |
| ANXCD5FS_UNF1/2-20 | UNF | 1/2 | 20 | 20 | 85 | 9 | 7 | II | 43 |
| ANXCD5FST_UNF1/2-20 | UNF | 1/2 | 20 | 20 | 85 | 9 | 7 | II | 43 |
| ANXCD5FS_UNF9/16-18 | UNF | 9/16 | 18 | 21 | 90 | 10.5 | 8 | II | 43 |
| ANXCD5FST_UNF9/16-18 | UNF | 9/16 | 18 | 21 | 90 | 10.5 | 8 | II | 43 |
| ANXCD5FS_UNF5/8-18 | UNF | 5/8 | 18 | 23 | 95 | 12 | 9 | II | 43 |
| ANXCD5FST_UNF5/8-18 | UNF | 5/8 | 18 | 23 | 95 | 12 | 9 | II | 43 |
| ANXCD5FS_UNF3/4-16 | UNF | 3/4 | 16 | 25 | 105 | 14 | 11 | II | 43 |
| ANXCD5FST_UNF3/4-16 | UNF | 3/4 | 16 | 25 | 105 | 14 | 11 | II | 43 |
Specification Range
| Diameter | #2~3/4 |
|---|---|
| Pitch | 16~64 |
| Flute length | 8~25 |
| Overall length | 42~105 |
| Shank diameter | 3~14 |
| Depth ratio | 2.5 |
Product Description
A French-brand spiral flute tap built from powder-metallurgy HSS, the UNF 5FS, ideal for tapping blind (non-through) holes — its spiral flutes pull chips back toward the shank, keeping the hole bottom clear. Available in 28 sizes (thread dia 1~9, pitch 16~64, thread length 2.5mm, overall length 42~105mm, shank dia 3~14mm). A TiN coating adds a hard golden film for better wear and anti-galling, extending tool life. Suitable for machining carbon and alloy steel, stainless steel, cast iron, non-ferrous metals like aluminium and copper, workpiece hardness up to HRC35. French brand, consistent quality.
Workpiece Materials & Hardness
- Steel (P)
- Stainless steel (M)
- Cast iron (K)
- Non-ferrous metals (N)
Max. workpiece hardness HRC35
