Short Thread Long Chip Spiral Flute Tap UNC 5AUS
Made of HSS-EX, the UNC 5AUS is a French-brand spiral flute tap, ideal for tapping blind (non-through) holes — its spiral flutes pull chips back toward the shank, keeping the hole bottom clear.

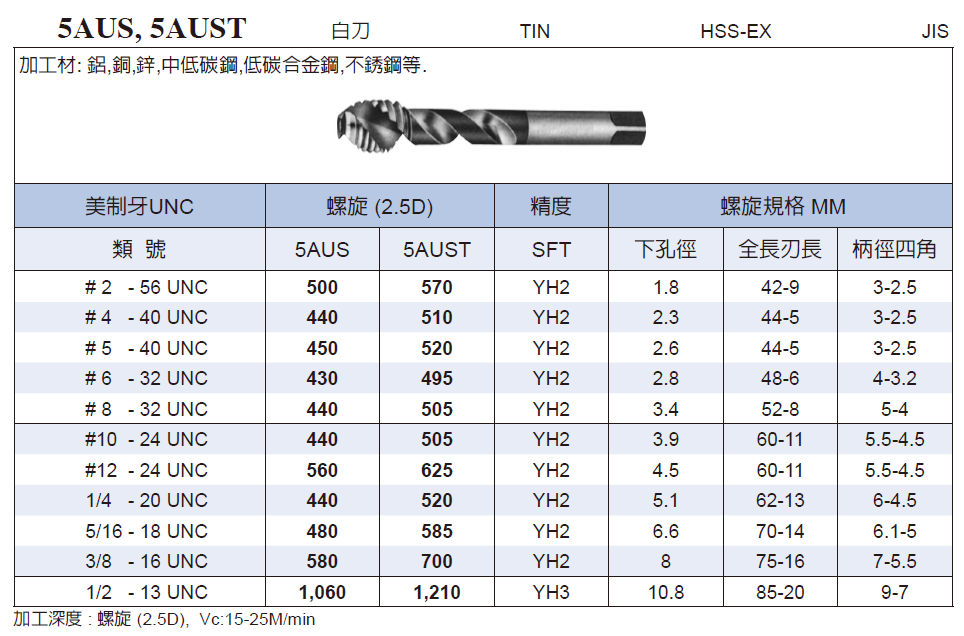

Specifications (22 items)
| Part No. | Standard | Dia. | Pitch | Flute L. | OAL | Shank Dia. | Square | Tol. Class |
|---|---|---|---|---|---|---|---|---|
| ANXCD5AUS_UNC#2-56 | UNC | #2 | 56 | 9 | 42 | 3 | 2.5 | YH2 |
| ANXCD5AUST_UNC#2-56 | UNC | #2 | 56 | 9 | 42 | 3 | 2.5 | YH2 |
| ANXCD5AUS_UNC#4-40 | UNC | #4 | 40 | 5 | 44 | 3 | 2.5 | YH2 |
| ANXCD5AUST_UNC#4-40 | UNC | #4 | 40 | 5 | 44 | 3 | 2.5 | YH2 |
| ANXCD5AUS_UNC#5-40 | UNC | #5 | 40 | 5 | 44 | 3 | 2.5 | YH2 |
| ANXCD5AUST_UNC#5-40 | UNC | #5 | 40 | 5 | 44 | 3 | 2.5 | YH2 |
| ANXCD5AUS_UNC#6-32 | UNC | #6 | 32 | 6 | 48 | 4 | 3.2 | YH2 |
| ANXCD5AUST_UNC#6-32 | UNC | #6 | 32 | 6 | 48 | 4 | 3.2 | YH2 |
| ANXCD5AUS_UNC#8-32 | UNC | #8 | 32 | 8 | 52 | 5 | 4 | YH2 |
| ANXCD5AUST_UNC#8-32 | UNC | #8 | 32 | 8 | 52 | 5 | 4 | YH2 |
| ANXCD5AUS_UNC#10-24 | UNC | #10 | 24 | 11 | 60 | 5.5 | 4.5 | YH2 |
| ANXCD5AUST_UNC#10-24 | UNC | #10 | 24 | 11 | 60 | 5.5 | 4.5 | YH2 |
| ANXCD5AUS_UNC#12-24 | UNC | #12 | 24 | 11 | 60 | 5.5 | 4.5 | YH2 |
| ANXCD5AUST_UNC#12-24 | UNC | #12 | 24 | 11 | 60 | 5.5 | 4.5 | YH2 |
| ANXCD5AUS_UNC1/4-20 | UNC | 1/4 | 20 | 13 | 62 | 6 | 4.5 | YH2 |
| ANXCD5AUST_UNC1/4-20 | UNC | 1/4 | 20 | 13 | 62 | 6 | 4.5 | YH2 |
| ANXCD5AUS_UNC5/16-18 | UNC | 5/16 | 18 | 14 | 70 | 6.1 | 5 | YH2 |
| ANXCD5AUST_UNC5/16-18 | UNC | 5/16 | 18 | 14 | 70 | 6.1 | 5 | YH2 |
| ANXCD5AUS_UNC3/8-16 | UNC | 3/8 | 16 | 16 | 75 | 7 | 5.5 | YH2 |
| ANXCD5AUST_UNC3/8-16 | UNC | 3/8 | 16 | 16 | 75 | 7 | 5.5 | YH2 |
| ANXCD5AUS_UNC1/2-13 | UNC | 1/2 | 13 | 20 | 85 | 9 | 7 | YH3 |
| ANXCD5AUST_UNC1/2-13 | UNC | 1/2 | 13 | 20 | 85 | 9 | 7 | YH3 |
Specification Range
| Diameter | #2~1/2 |
|---|---|
| Pitch | 13~56 |
| Flute length | 5~20 |
| Overall length | 42~85 |
| Shank diameter | 3~9 |
| Depth ratio | 2.5 |
Product Description
Made of HSS-EX, the UNC 5AUS is a French-brand spiral flute tap, ideal for tapping blind (non-through) holes — its spiral flutes pull chips back toward the shank, keeping the hole bottom clear. Available in 22 sizes (thread dia 1~5, pitch 13~56, thread length 2.5mm, overall length 42~85mm, shank dia 3~9mm). A TiN coating adds a hard golden film for better wear and anti-galling, extending tool life. Suitable for machining stainless steel, non-ferrous metals like aluminium and copper, workpiece hardness up to HRC40. French brand, consistent quality.
Workpiece Materials & Hardness
- Stainless steel (M)
- Non-ferrous metals (N)
Max. workpiece hardness HRC40
Tags
- Short Chamfer
