Short Thread Long Chip Spiral Flute Tap Whitworth 5AWS
Made of HSS-EX, the 5AWS is a French-brand spiral flute tap, ideal for tapping blind (non-through) holes — its spiral flutes pull chips back toward the shank, keeping the hole bottom clear.
Specifications (22 items)

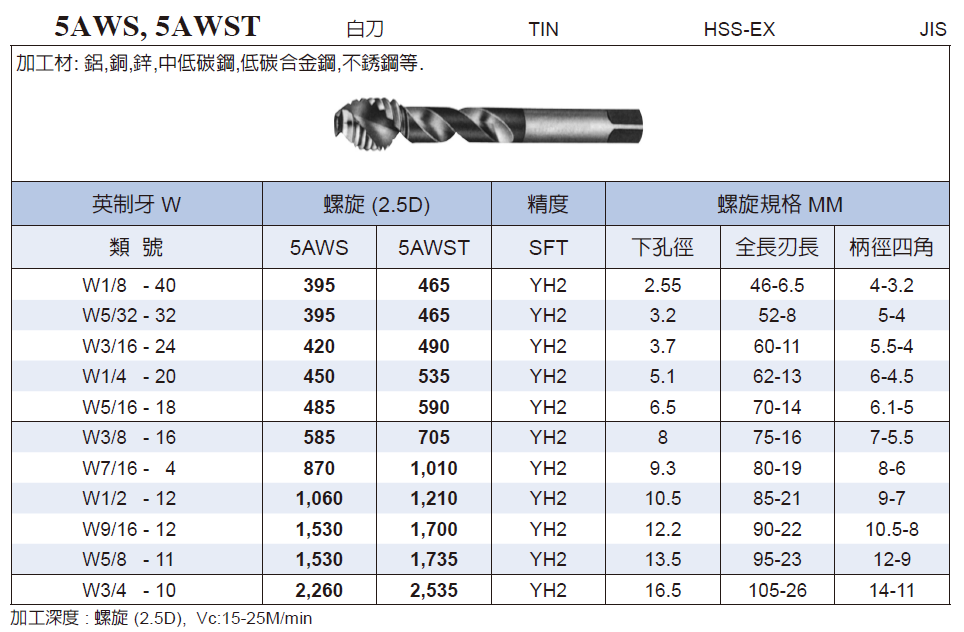

| Part No. | Standard | Dia. | Pitch | Flute L. | OAL | Shank Dia. | Square | Tol. Class |
|---|---|---|---|---|---|---|---|---|
| ANXCD5AWS_W1/8-40 | Whitworth W | 1/8 | 40 | 6.5 | 46 | 4 | 3.2 | YH2 |
| ANXCD5AWST_W1/8-40 | Whitworth W | 1/8 | 40 | 6.5 | 46 | 4 | 3.2 | YH2 |
| ANXCD5AWS_W5/32-32 | Whitworth W | 5/32 | 32 | 8 | 52 | 5 | 4 | YH2 |
| ANXCD5AWST_W5/32-32 | Whitworth W | 5/32 | 32 | 8 | 52 | 5 | 4 | YH2 |
| ANXCD5AWS_W3/16-24 | Whitworth W | 3/16 | 24 | 11 | 60 | 5.5 | 4 | YH2 |
| ANXCD5AWST_W3/16-24 | Whitworth W | 3/16 | 24 | 11 | 60 | 5.5 | 4 | YH2 |
| ANXCD5AWS_W1/4-20 | Whitworth W | 1/4 | 20 | 13 | 62 | 6 | 4.5 | YH2 |
| ANXCD5AWST_W1/4-20 | Whitworth W | 1/4 | 20 | 13 | 62 | 6 | 4.5 | YH2 |
| ANXCD5AWS_W5/16-18 | Whitworth W | 5/16 | 18 | 14 | 70 | 6.1 | 5 | YH2 |
| ANXCD5AWST_W5/16-18 | Whitworth W | 5/16 | 18 | 14 | 70 | 6.1 | 5 | YH2 |
| ANXCD5AWS_W3/8-16 | Whitworth W | 3/8 | 16 | 16 | 75 | 7 | 5.5 | YH2 |
| ANXCD5AWST_W3/8-16 | Whitworth W | 3/8 | 16 | 16 | 75 | 7 | 5.5 | YH2 |
| ANXCD5AWS_W7/16-14 | Whitworth W | 7/16 | 14 | 19 | 80 | 8 | 6 | YH2 |
| ANXCD5AWST_W7/16-14 | Whitworth W | 7/16 | 14 | 19 | 80 | 8 | 6 | YH2 |
| ANXCD5AWS_W1/2-12 | Whitworth W | 1/2 | 12 | 21 | 85 | 9 | 7 | YH2 |
| ANXCD5AWST_W1/2-12 | Whitworth W | 1/2 | 12 | 21 | 85 | 9 | 7 | YH2 |
| ANXCD5AWS_W9/16-12 | Whitworth W | 9/16 | 12 | 22 | 90 | 10.5 | 8 | YH2 |
| ANXCD5AWST_W9/16-12 | Whitworth W | 9/16 | 12 | 22 | 90 | 10.5 | 8 | YH2 |
| ANXCD5AWS_W5/8-11 | Whitworth W | 5/8 | 11 | 23 | 95 | 12 | 9 | YH2 |
| ANXCD5AWST_W5/8-11 | Whitworth W | 5/8 | 11 | 23 | 95 | 12 | 9 | YH2 |
| ANXCD5AWS_W3/4-10 | Whitworth W | 3/4 | 10 | 26 | 105 | 14 | 11 | YH2 |
| ANXCD5AWST_W3/4-10 | Whitworth W | 3/4 | 10 | 26 | 105 | 14 | 11 | YH2 |
Specification Range
| Diameter | 1/8~3/4 |
|---|---|
| Pitch | 10~40 |
| Flute length | 6.5~26 |
| Overall length | 46~105 |
| Shank diameter | 4~14 |
| Depth ratio | 2.5 |
Product Description
Made of HSS-EX, the 5AWS is a French-brand spiral flute tap, ideal for tapping blind (non-through) holes — its spiral flutes pull chips back toward the shank, keeping the hole bottom clear. Available in 22 sizes (thread dia 1~9, pitch 10~40, thread length 2.5mm, overall length 46~105mm, shank dia 4~14mm). A TiN coating adds a hard golden film for better wear and anti-galling, extending tool life. Suitable for machining non-ferrous metals like aluminium and copper, workpiece hardness up to HRC40. French brand, consistent quality.
Workpiece Materials & Hardness
- Non-ferrous metals (N)
Max. workpiece hardness HRC40
