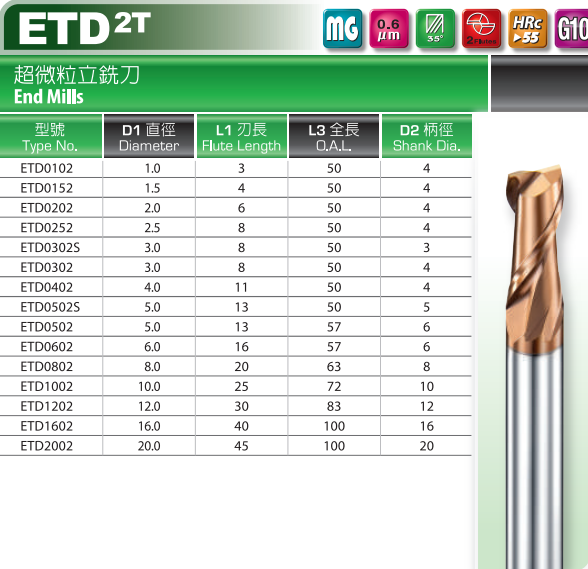

AVQDHETDSolid Carbide Standard End Mill ETDSold0pcsSolid Carbide Standard End Mill ETD is a Taiwan-made solid carbide end mill, suitable for general milling, profiling and slotting. Available in diameter 1~20mm, flute length 3~45mm, overall length 50~100mm, 2 flutes. G10-coated edge for wear/heat resistance and longer tool life. Machines carbon & alloy steel, up to HRC55. An ideal choice for machining hardened or high-hardness mold steel.
Specification
Please select a specification (you can type keywords to search)
Quantity
Minimum purchase quantity: 1
$ 358 ~ $ 6,474
Product Categories
Cutting ToolsEnd MillsFlat End Mill
Solid Carbide Standard End Mill ETD
Tags

【Product Name】The ETD Series End Mill (Product Code: AVQDHETD) is a standard tool developed for low-to-medium hardness steel, primarily focusing on balancing consistent performance with overall procurement costs.

【Key Features & Benefits】

  • Broad Versatility: Recommended for processing structural steel, carbon steel, and alloy steel under HRC30. As a standard mill, it fulfills most basic component manufacturing needs.

  • Standard Material Specs: Built with MG0.6 micro-grain carbide and G10 coating, offering dependable wear resistance for ISO P materials that do not require high-temperature specialized coatings.

  • Balanced Geometry: The classic 35-degree helix angle provides a stable balance for profiling, slotting, and side milling, minimizing vibration. It is a highly recommended tool for everyday workshop tasks.

  • Cost-Efficient Solution: For conventional cutting tasks, the ETD series offers a highly competitive cost-per-part, making it a practical choice for budget-conscious production.

【Applications & Usage】

  • Primary Applications: Ideal for profiling, slotting, and side milling of mass-produced precision parts.

  • Recommended Materials: ISO P (Structural Steel, Carbon Steel, Alloy Steel). Especially recommended for materials under HRC30 where process stability is preferred.
