Solid Carbide Unequal Flute Spacing & Variable Helix End Mill XEB
DHF Solid Carbide Unequal Flute Spacing & Variable Helix End Mill XEB, commonly called a flat or square end mill, shapes contours, side walls and slots. Sister series include KSE (G18 coating), UPZ (G10 coating), XEA (rated to HRC55).
Specifications (9 items)

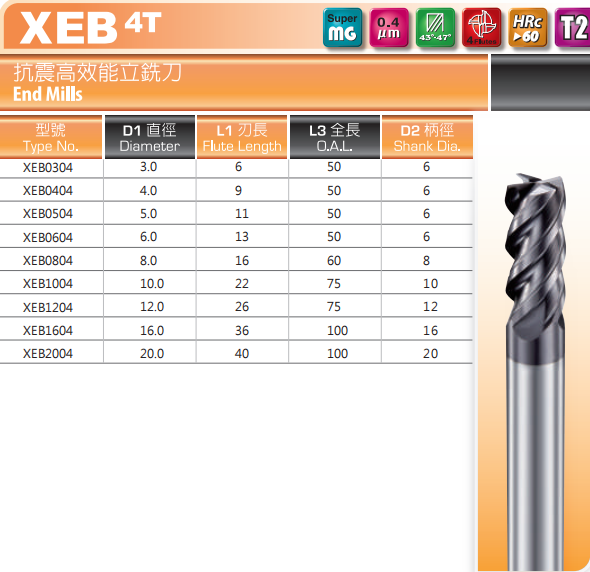

| Part No. | Dia. | Flute length | Overall length | Shank dia. | Flutes |
|---|---|---|---|---|---|
| AVQDHXEB0304 | 3 | 6 | 50 | 6 | 4 |
| AVQDHXEB0404 | 4 | 9 | 50 | 6 | 4 |
| AVQDHXEB0504 | 5 | 11 | 50 | 6 | 4 |
| AVQDHXEB0604 | 6 | 13 | 50 | 6 | 4 |
| AVQDHXEB0804 | 8 | 16 | 60 | 8 | 4 |
| AVQDHXEB1004 | 10 | 22 | 75 | 10 | 4 |
| AVQDHXEB1204 | 12 | 26 | 75 | 12 | 4 |
| AVQDHXEB1604 | 16 | 36 | 100 | 16 | 4 |
| AVQDHXEB2004 | 20 | 40 | 100 | 20 | 4 |
Specification Range
| Diameter | 3~20mm |
|---|---|
| Flute length | 6~40mm |
| Overall length | 50~100mm |
| Shank diameter | 6~20mm |
Product Description
DHF Solid Carbide Unequal Flute Spacing & Variable Helix End Mill XEB, commonly called a flat or square end mill, shapes contours, side walls and slots. Sister series include KSE (G18 coating), UPZ (G10 coating), XEA (rated to HRC55). What sets this one apart is a sub-micron SMG0.4 substrate with a T2 coating, rated to HRC60. It covers diameter 3~20mm, flute length 6~40mm, overall length 50~100mm, 4 flutes, in 9 sizes, made in Taiwan. It machines carbon and alloy steel. What is the smallest diameter? 3mm. Can it cut hardened steel? Yes — that is exactly what it is for. Typical uses: general contouring and wall milling, slot and keyway cutting, roughing and semi-finishing of mould parts.
Workpiece Materials & Hardness
- Steel (P)
Max. workpiece hardness HRC60
