Spiral Flute Pipe Tap NPTF 586F
The NPTF 586F is a French-brand pipe thread tap made of HSS-E, ideal for PT/PF pipe threads, commonly used for sealing water, hydraulic and pneumatic line connections.
Specifications (3 items)

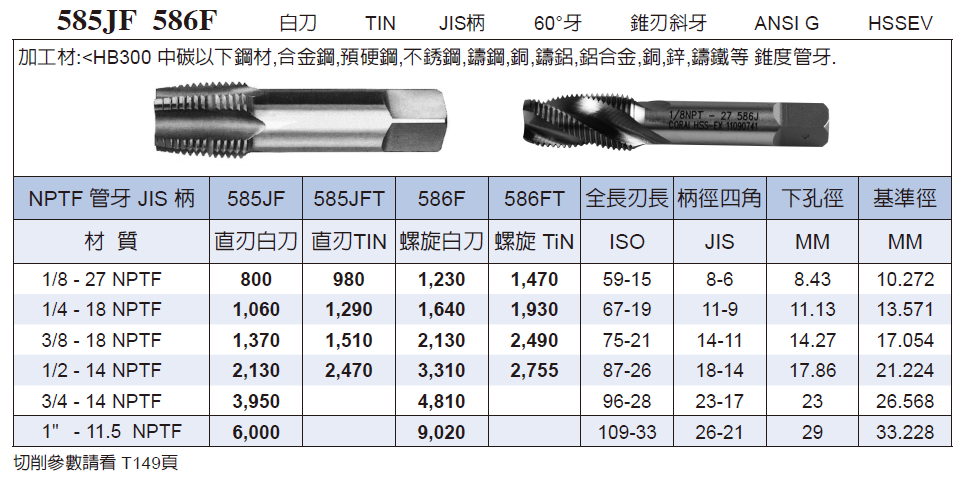

| Part No. | Standard | Dia. | Pitch | Flute L. | OAL | Shank Dia. | Square |
|---|---|---|---|---|---|---|---|
| ANECD586F_NPTF1/8-27 | NPTF | 1/8 | 27 | 15 | 59 | 8 | 6 |
| ANECD586F_NPTF1/4-18 | NPTF | 1/4 | 18 | 19 | 67 | 11 | 9 |
| ANECD586F_NPTF3/8-18 | NPTF | 3/8 | 18 | 21 | 75 | 14 | 11 |
Specification Range
| Diameter | 1/8~3/8 |
|---|---|
| Pitch | 18~27 |
| Flute length | 15~21 |
| Overall length | 59~75 |
| Shank diameter | 8~14 |
Product Description
The NPTF 586F is a French-brand pipe thread tap made of HSS-E, ideal for PT/PF pipe threads, commonly used for sealing water, hydraulic and pneumatic line connections. Available in 3 sizes (thread dia 1~3, pitch 18~27, overall length 59~75mm, shank dia 8~14mm). Suitable for machining carbon and alloy steel, stainless steel, cast iron, non-ferrous metals like aluminium and copper, workpiece hardness up to HRC40. French brand, consistent quality.
Workpiece Materials & Hardness
- Steel (P)
- Stainless steel (M)
- Cast iron (K)
- Non-ferrous metals (N)
Max. workpiece hardness HRC40
