Yatora Stainless Spiral Flute Tap UNC 5SUS
Crafted in HSS-EX, the UNC 5SUS is a high-quality French-brand spiral flute tap, ideal for tapping blind (non-through) holes — its spiral flutes pull chips back toward the shank, keeping the hole bottom clear.

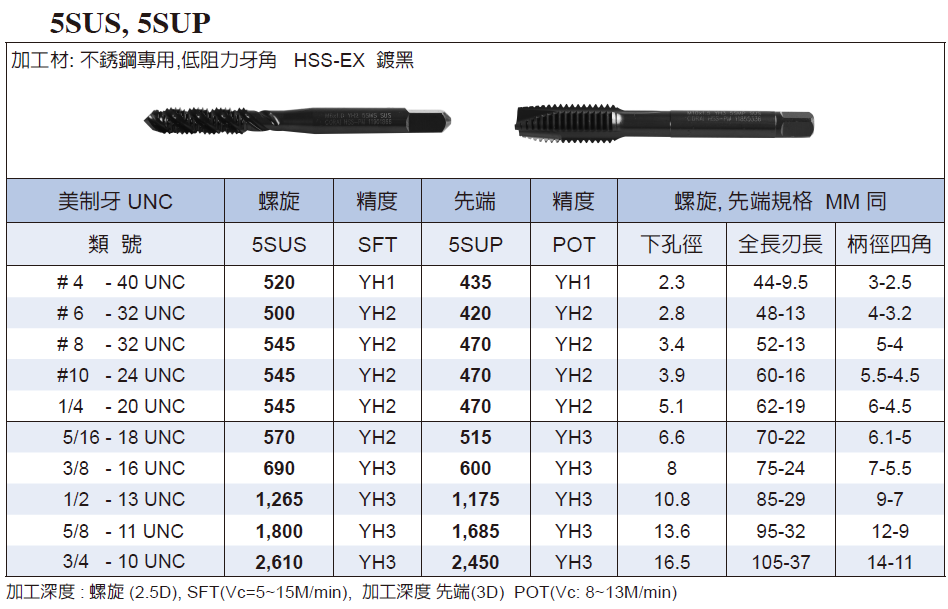

Specifications (10 items)
| Part No. | Standard | Dia. | Pitch | Flute L. | OAL | Shank Dia. | Square | Tol. Class |
|---|---|---|---|---|---|---|---|---|
| ANXCD5SUS_UNC#4-40-B | UNC | #4 | 40 | 9.5 | 44 | 3 | 2.5 | YH1 |
| ANXCD5SUS_UNC#6-32-B | UNC | #6 | 32 | 13 | 48 | 4 | 3.2 | YH2 |
| ANXCD5SUS_UNC#8-32-B | UNC | #8 | 32 | 13 | 52 | 5 | 4 | YH2 |
| ANXCD5SUS_UNC#10-24-B | UNC | #10 | 24 | 16 | 60 | 5.5 | 4.5 | YH2 |
| ANXCD5SUS_UNC1/4-20-B | UNC | 1/4 | 20 | 19 | 62 | 6 | 4.5 | YH2 |
| ANXCD5SUS_UNC5/16-18-B | UNC | 5/16 | 18 | 22 | 70 | 6.1 | 5 | YH2 |
| ANXCD5SUS_UNC3/8-16-B | UNC | 3/8 | 16 | 24 | 75 | 7 | 5.5 | YH3 |
| ANXCD5SUS_UNC1/2-13-B | UNC | 1/2 | 13 | 29 | 85 | 9 | 7 | YH3 |
| ANXCD5SUS_UNC5/8-11-B | UNC | 5/8 | 11 | 32 | 95 | 12 | 9 | YH3 |
| ANXCD5SUS_UNC3/4-10-B | UNC | 3/4 | 10 | 37 | 105 | 14 | 11 | YH3 |
Specification Range
| Diameter | #4~3/4 |
|---|---|
| Pitch | 10~40 |
| Flute length | 9.5~37 |
| Overall length | 44~105 |
| Shank diameter | 3~14 |
| Depth ratio | 2.5 |
Product Description
Crafted in HSS-EX, the UNC 5SUS is a high-quality French-brand spiral flute tap, ideal for tapping blind (non-through) holes — its spiral flutes pull chips back toward the shank, keeping the hole bottom clear. Available in 10 sizes (thread dia 1~5, pitch 10~40, thread length 2.5mm, overall length 44~105mm, shank dia 3~14mm). Black-oxide finish resists galling and rust. Suitable for machining stainless steel, workpiece hardness up to HRC40. French brand, consistent quality.
Workpiece Materials & Hardness
- Stainless steel (M)
Max. workpiece hardness HRC40
Tags
- For Stainless Steel
