AYSCD154HSS-CO Drill for Short-Chip Material 154已售出0個HSS-CO Drill for Short-Chip Material 154 (5D UDS_154), a cobalt HSS straight shank drill with flute geometry tuned for short-chip materials like cast iron, reaching 5xD depth in one feed. Diameter 3.8~15mm, overall length 75~169mm, 8~11xD, available in 64 sizes. TiN coating boosts wear resistance and tool life. Drills carbon steel, alloy steel and cast iron up to HRC40 - a practical 5xD drilling-depth choice. French brand, consistent quality.
商品分類
標籤
5xD Drilling Depth
Product Overview: HSS Heavy-Duty High-Speed Steel Drill Short-Chip Materials 5D – UDS Series
【Product Features & Why We Recommend It】
- French Brand Professional Quality: Originating from a professional French cutting tool brand with rigorous quality control — recommended for users with high demands on short-chip material 5× diameter deep hole drilling stability and tool durability.
- Short-Chip Material Dedicated Geometry: Features a drill geometry specifically optimized for short-chip materials such as carbon steel, alloy steel, and cast iron — recommended for deep hole drilling applications with higher chip-breaking performance requirements, effectively preventing chip evacuation blockage during deep hole machining.
- HSS-CO Cobalt High-Performance Substrate: Manufactured with cobalt high-speed steel (HSS-CO), with maximum machining hardness up to HRC40 — delivering superior red hardness and wear resistance compared to standard HSS, recommended for long-duration stable deep hole drilling of harder steel materials and cast iron.
- TiN Coating Enhancement: The surface is treated with TiN coating, providing good wear resistance and heat resistance — recommended for continuous 5× diameter deep hole drilling of carbon steel, alloy steel, and cast iron materials, effectively extending tool change intervals.

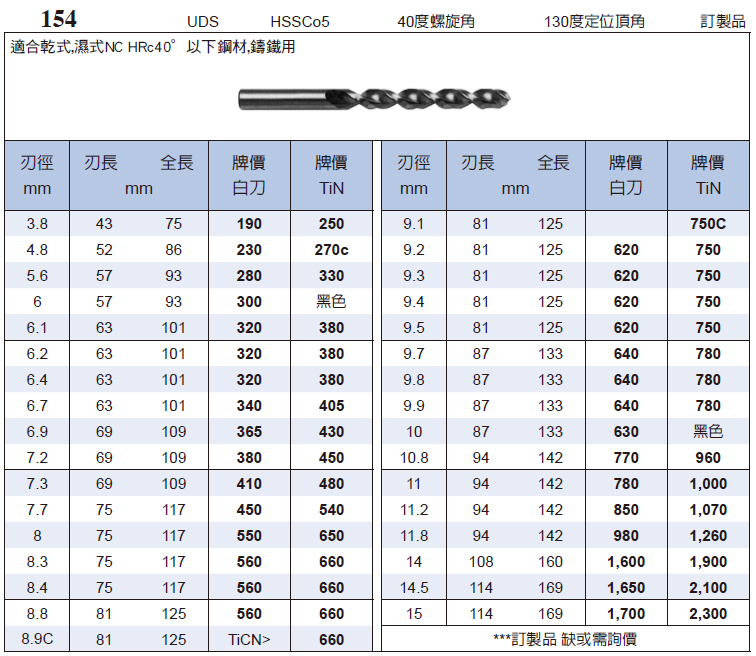

- 64 Specification Wide Coverage: Available in diameter 3.8–15mm, flute length 43–114mm, and overall length 75–169mm across 64 specifications — recommended for flexible selection based on workpiece hole diameter and depth requirements.
【Machining Applications & Uses】
- Primary Use: Short-chip material 5× diameter deep hole drilling, carbon steel and alloy steel through-hole and blind hole machining, and cast iron component deep hole operations.
- Recommended Work Materials:
- P-Class (Carbon Steel / Alloy Steel): Structural steel, carbon steel, and alloy steel — recommended for hardness below HRC40, where the short-chip dedicated geometry combined with HSS-CO substrate delivers stable deep hole drilling performance, representing the ideal application scenario for this series.
- K-Class (Cast Iron): Cast iron and gray iron — typical short-chip materials where the short-chip geometry ensures smooth chip evacuation in deep holes, and the TiN coating provides outstanding wear-resistant drilling tool life.
