AVTJRTCHSS-CO Staggered Tooth T Slot Cutter Straight Shank TC已售出0個HSS-CO Staggered Tooth T Slot Cutter Straight Shank TC is a Japan-made HSS form milling cutter, ideal for T-slots, relief grooves and machine slide rails. Available in diameter 15~50mm, flute length 3~10mm, effective length 12~28mm, overall length 100~180mm, 6-10 flutes. Machines carbon & alloy steel, stainless steel, aluminum/copper & non-ferrous, up to HRC35.
商品分類
標籤
T-Slot Cutter
Staggered Tooth
Cross Tooth
Product Overview: HSS Staggered-Tooth T-Slot End Mill Straight Shank – TC Series
【Product Features & Why We Recommend It】
- Japanese Original Manufacturer Quality: Manufactured directly by a Japanese original factory with rigorous quality control — recommended for users with high demands on T-slot machining accuracy and tool durability.
- Staggered-Tooth (Alternating-Tooth) Design: Features a specialized staggered-tooth geometry where alternating left and right cutting edges effectively distribute cutting load and reduce cutting resistance — recommended for stable T-slot cutting, with chip evacuation performance notably superior to standard straight-tooth designs, particularly when machining high-toughness stainless steel or softer adhesion-prone non-ferrous metals.

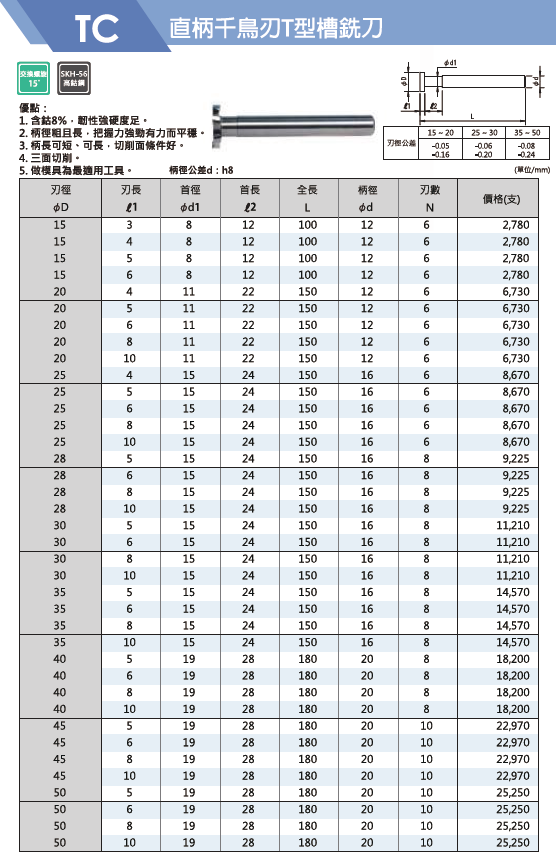

- Multi-Flute Large-Diameter Specification: Available in diameter 15–50mm with 6–10 flute options — recommended for flexible selection based on T-slot width and workpiece material, ensuring flat slot bottom and dimensional accuracy.
- Straight Shank Universal Clamping: The straight shank design is compatible with standard end mill holders — recommended as the standard configuration for general T-slot machining, offering convenient and stable clamping.
- Broad Material Compatibility: Maximum machining hardness up to HRC35 — recommended to cover T-slot machining needs across steel, stainless steel, aluminum alloys, copper materials, and engineering plastics.
【Machining Applications & Uses】
- Primary Use: T-slot milling, machine table T-slot forming, and mechanical structure T-groove machining.
- Recommended Work Materials:
- P-Class (Carbon Steel / Alloy Steel): Structural steel, carbon steel, and alloy steel — recommended for hardness below HRC30, with the staggered-tooth design delivering stable T-slot cutting performance.
- M-Class (Stainless Steel): SUS304, SUS316, SUS420, and other high-toughness stainless steel and white iron — the alternating staggered-tooth design effectively reduces cutting resistance while suppressing adhesion and work hardening.
- N-Class (Non-Ferrous Metals): Aluminum alloys, pure copper, brass, and engineering plastics — softer and adhesion-prone materials where the staggered-tooth large chip clearance design ensures smooth chip evacuation and prevents built-up edge formation.
