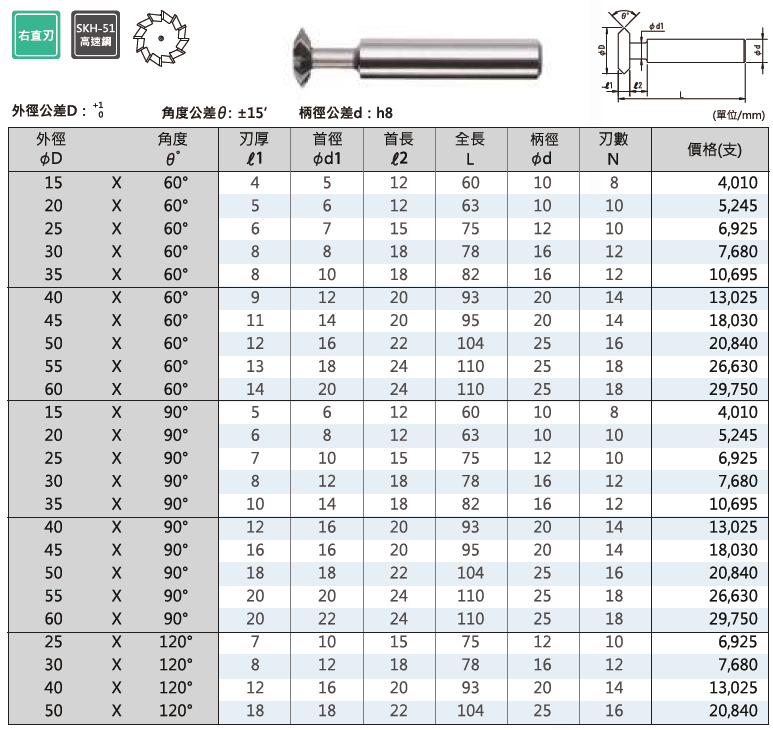

AVTJRACSWHSS W Type Dovetail Cutter Straight Shank ACSW已售出0個HSS W Type Dovetail Cutter Straight Shank ACSW is a Japan-made HSS form milling cutter, ideal for dovetail grooves, slide rails and wedge-shaped slots. Available in diameter 15~60mm, angle 60~120°, flute length 4~20mm, effective length 12~24mm, overall length 60~110mm, 8-18 flutes. Machines carbon & alloy steel, aluminum/copper & non-ferrous, up to HRC30.
商品分類
標籤
Equal-Angle Dovetail Cutter
Product Overview: HSS W-Type Dovetail Slot Cutter Straight Shank – ACSW Series
【Product Features & Why We Recommend It】
- Japanese Original Manufacturer Quality: Manufactured directly by a Japanese original factory with rigorous quality control — recommended for users with high demands on large-size W-type dovetail slot forming accuracy and tool consistency.
- W-Type Equal-Angle Dovetail Dedicated Geometry: Features a specialized W-type equal-angle dovetail forming geometry with included angle coverage spanning 60–120° — recommended for precise selection based on workpiece dovetail slot specifications, ensuring slot profile symmetry and fit accuracy meet requirements.
- Large-Diameter High Flute Count Design: Available in diameter 15–60mm with 8–18 flute options — recommended for high-efficiency precision forming of large-size dovetail slots, with evenly distributed cutting load per flute to effectively improve slot surface finish quality.
- Wide Flute Length Full Coverage: Flute lengths spanning the wide range of 4–20mm — recommended for flexible selection based on dovetail slot depth and bevel dimensions, suitable for all types of W-type dovetail slot machining from small precision components to large mechanical structural parts.
- Straight Shank Universal Clamping: The straight shank design is compatible with standard end mill holders — recommended as the standard configuration for W-type dovetail slot machining, offering convenient and stable clamping.
【Machining Applications & Uses】
- Primary Use: W-type equal-angle dovetail slot precision forming milling, large-size guideway dovetail slot machining, and mechanical sliding table equal-angle guide slot forming.
- Recommended Work Materials:
- P-Class (Carbon Steel / Alloy Steel): Structural steel, carbon steel, and alloy steel — recommended for hardness below HRC30, with the high flute count design delivering stable large-size W-type dovetail slot forming cutting performance.
- N-Class (Non-Ferrous Metals): Aluminum alloys, pure copper, brass, and engineering plastics — softer and adhesion-prone materials where the use of appropriate cutting fluid is recommended to ensure smooth chip evacuation and surface quality during large-diameter W-type dovetail slot machining.
