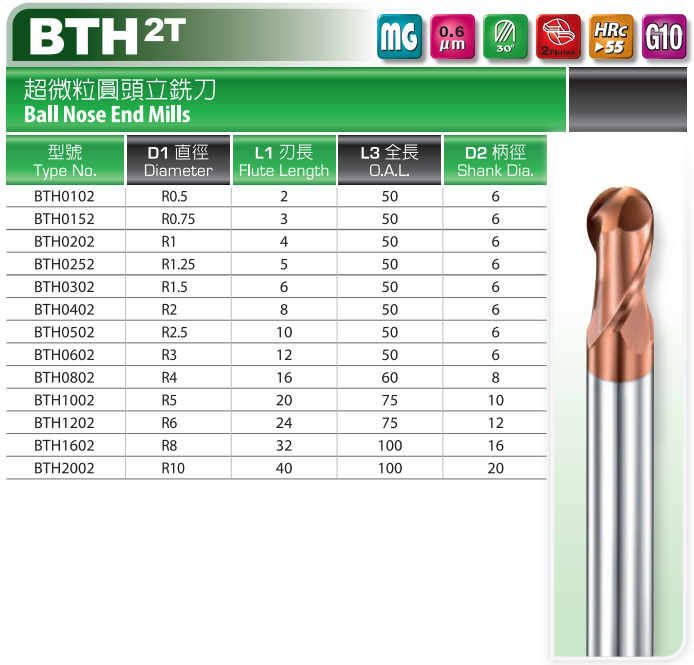

AVFDHBTHSolid Carbide Ball Nose End Mill BTH已售出0個Solid Carbide Ball Nose End Mill BTH is a Taiwan-made solid carbide ball nose end mill, ideal for 3D contours, mold cavities, curved surfaces and finishing. Available in ball radius R 0.5~10mm, flute length 2~40mm, overall length 50~100mm, 2 flutes. G10-coated edge for wear/heat resistance and longer tool life. Machines carbon & alloy steel, stainless steel, cast iron, up to HRC55. An ideal choice for machining hardened or high-hardness mold steel.
規格
請選擇規格 (可輸入關鍵字快速搜尋)
數量
最低購買數量：1
$ 553 ~ $ 7,737
商品分類
Cutting ToolsEnd MillsBall Nose End Mill
Solid Carbide Ball Nose End Mill BTH
標籤

[Product Name] DHF Solid Carbide Ball Nose End Mill - BTH Series (Part No: AVFDHBTH)

[Features & Recommended Reasons]

  • Standard R0.5 Specification: Features an R0.5 ball nose, recommended for intricate surface finishing, circular grooves, and 5-axis profiling in precision components.

  • Tough MG0.6 Carbide: Built with MG0.6 carbide substrate, which offers superior impact resistance. We recommend this for environments where vibration or intermittent cutting may occur.

  • Wear-Resistant G10 Coating: Equipped with the G10 coating. Highly recommended for users seeking consistent tool life, particularly when machining carbon steels and stainless steels.

  • Reliable 30° Helix Angle: Features the classic 30-degree helix, recommended for general-purpose machining of common metals, balancing effective chip evacuation and edge durability.

[Applications]

  • Primary Use: Circular groove milling, 3D contour finishing, and copy milling for mold parts.

  • Recommended Materials: Carbon steels (P-class), Stainless steels (M-class), and high-hardness Cast Irons (K-class).
