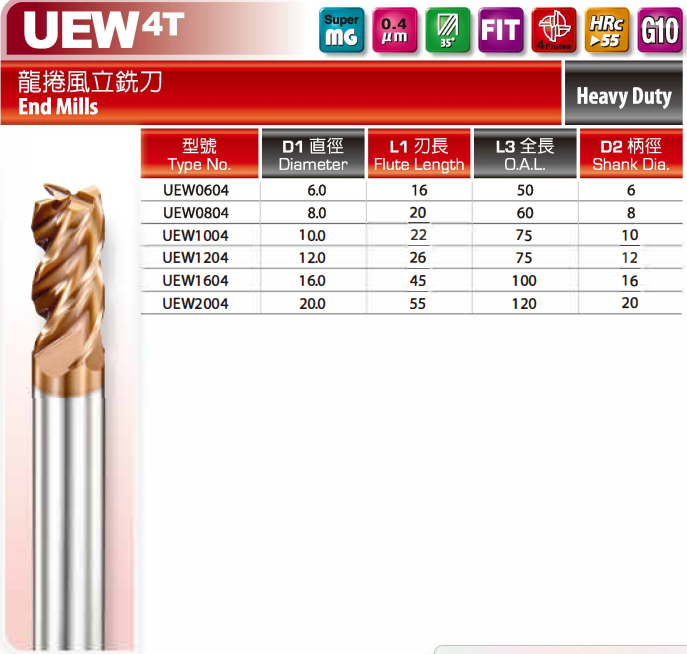

AVQDHUEWSolid Carbide End Mill (Tornado Series) UEW已售出0個Solid Carbide End Mill (Tornado Series) UEW is a Taiwan-made solid carbide end mill, suitable for general milling, profiling and slotting. Available in diameter 6~20mm, flute length 16~55mm, overall length 50~120mm, 4 flutes. G10-coated edge for wear/heat resistance and longer tool life. Machines carbon & alloy steel, up to HRC55. An ideal choice for machining hardened or high-hardness mold steel.
規格
請選擇規格 (可輸入關鍵字快速搜尋)
數量
最低購買數量：1
$ 1,263 ~ $ 10,526
商品分類
Cutting ToolsEnd MillsFlat End Mill
Solid Carbide End Mill (Tornado Series) UEW
標籤

【Product Name】The UEW Series Tornado End Mill (Product Code: AVQDHUEW) is a high-performance tool developed for efficient material removal, primarily solving vibration and chip evacuation issues during heavy-duty machining.

【Key Features & Benefits】

  • Engineered for Heavy Cutting: Optimized for "High-Efficiency Heavy Cutting," allowing for larger feed rates in structural and alloy steels to significantly reduce cycle times.

  • Specialized for P-class Steel: Recommended for materials below HRC30. It provides ample chip space while maintaining structural stability during aggressive cutting.

  • Balanced Helix Design: The 35-degree helix angle strikes a balance between cutting force and rigidity, making it suitable for profiling, slotting, and side milling with reduced chatter.

  • Coating Reliability: Combining G10 coating with SMG0.4 micro-grain carbide, it offers dependable wear resistance for mold roughing and mass production of steel parts.

【Applications & Usage】

  • Primary Applications: Ideal for high-efficiency profiling, slotting, and heavy-duty side milling of precision components.

  • Recommended Materials: ISO P (Structural Steel, Carbon Steel, Alloy Steel). Specially recommended for applications requiring high material removal rates under HRC30.
