AVQDHETGSolid Carbide Micro Grain End Mill ETG已售出0個Solid Carbide Micro Grain End Mill ETG is a Taiwan-made solid carbide end mill, suitable for general milling, profiling and slotting. Available in diameter 1~16mm, flute length 3~40mm, overall length 50~100mm, 4 flutes. G10-coated edge for wear/heat resistance and longer tool life. Machines carbon & alloy steel, up to HRC55. An ideal choice for machining hardened or high-hardness mold steel.
規格
請選擇規格 (可輸入關鍵字快速搜尋)
數量
最低購買數量：1
$ 379 ~ $ 4,211
商品分類
Cutting ToolsEnd MillsFlat End Mill

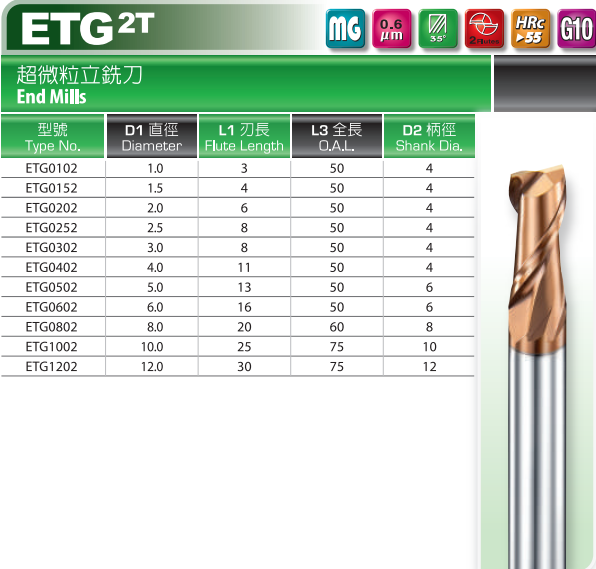

Solid Carbide Micro Grain End Mill ETG
標籤

【Product Name】The ETG Series End Mill (Product Code: AVQDHETG) is a versatile tool developed for low-to-medium hardness steels, primarily focused on balancing performance and cost in everyday component machining.

【Key Features & Benefits】

  • Wide Versatility: Recommended for processing structural steel, carbon steel, and alloy steel under HRC30. It shows excellent adaptability in general-purpose manufacturing environments.

  • Reinforced Material: Built with MG0.6 micro-grain carbide and G10 coating, providing dependable wear resistance and consistent tool life for common ISO P materials.

  • Balanced Geometry: The 35-degree helix angle design balances cutting forces during side milling and slotting, reducing vibration. It is a highly recommended choice for standard machining processes.

  • Cost-Efficient Choice: For conventional cutting that doesn't require extreme hardness, the ETG series offers a practical solution to control the cost-per-part effectively.

【Applications & Usage】

  • Primary Applications: Ideal for profiling, slotting, and side milling of mass-produced precision parts.

  • Recommended Materials: ISO P (Structural Steel, Carbon Steel, Alloy Steel). Especially recommended for materials with hardness below HRC30 for smooth operation.
