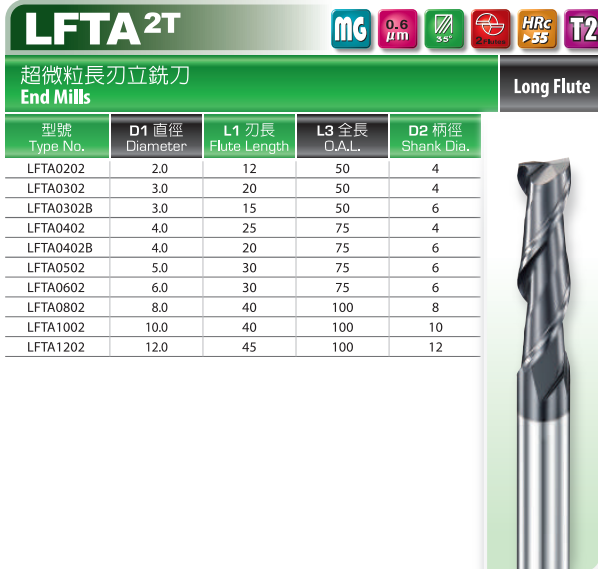

AVQDHLFTASolid Carbide Micro Grain Long Flute End Mill LFTA已售出0個Solid Carbide Micro Grain Long Flute End Mill LFTA is a Taiwan-made solid carbide end mill, suitable for general milling, profiling and slotting. Available in diameter 2~20mm, flute length 12~75mm, overall length 50~150mm, 2-4 flutes. T2-coated edge for wear/heat resistance and longer tool life. Machines carbon & alloy steel, stainless steel, up to HRC55. An ideal choice for machining hardened or high-hardness mold steel.
規格
請選擇規格 (可輸入關鍵字快速搜尋)
數量
最低購買數量：1
$ 589 ~ $ 10,211
商品分類
Cutting ToolsEnd MillsFlat End Mill
Solid Carbide Micro Grain Long Flute End Mill LFTA
標籤

【Product Name】The LFTA Series Long Flute End Mill (Product Code: AVQDHLFTA) is a specialized tool developed for applications requiring significant cutting depths, primarily addressing the inefficiency of multiple passes required by standard length tools.

【Key Features & Benefits】

  • Extended Flute Advantage: Features a longer cutting edge than standard mills, allowing for greater axial depth of cut in a single pass. This significantly reduces cycle times and improves production throughput.

  • Material Versatility: Recommended for structural and carbon steels under HRC30, and reliable for ISO M materials (Stainless Steel like SUS304, SUS316) known for high toughness and difficult chip control.

  • Durable Build Specs: Built with MG0.6 carbide and T2 coating, supporting hardness up to HRC55. The T2 coating enhances thermal resistance and wear protection for extended contact during deep cuts.

  • Balanced Geometry: The 35-degree helix angle balances cutting performance and tool rigidity, which is essential for minimizing the deflection and vibration typically associated with long flute tools.

【Applications & Usage】

  • Primary Applications: Ideal for large-depth profiling, deep slotting, and side milling of precision components.

  • Recommended Materials:

    • ISO P (Structural, Carbon, and Alloy Steel): Best for high material removal rates under HRC30.

    • ISO M (Stainless Steel): Reliable performance for tough, stringy materials.
