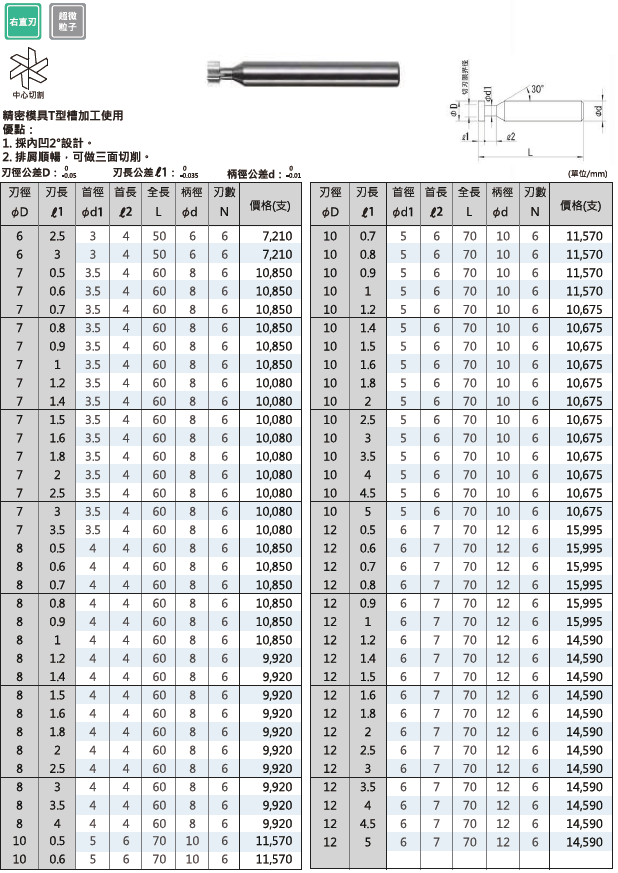

AVTJRCSMTSolid Carbide Mini Keyseat Cutter CSMT已售出0個Solid Carbide Mini Keyseat Cutter CSMT is a Japan-made solid carbide form milling cutter, ideal for keyways, slots and profile milling. Available in diameter 2~12mm, flute length 0.5~5mm, effective length 3.5~7mm, overall length 40~70mm, 4-6 flutes. Machines carbon & alloy steel, stainless steel, cast iron, aluminum/copper & non-ferrous, up to HRC50.
商品分類
標籤
Keyseat Cutter
Product Overview: Tungsten Carbide Super-Hard Key Seat Cutter – CSMT Series
【Product Features & Why We Recommend It】
- Japanese Original Manufacturer Quality: Manufactured directly by a Japanese original factory with rigorous quality control — recommended for users with high demands on key seat forming accuracy and tool durability.
- Tungsten Carbide Super-Hard Capability: Manufactured with tungsten carbide, capable of machining materials up to HRC50 — delivering superior wear resistance and cutting edge strength compared to HSS key seat cutters, recommended for precision key seat forming on higher-hardness steel, cast iron, and stainless steel materials.
- Micro-Diameter Precision Specification: Available down to a minimum diameter of 2mm — recommended for micro key seat machining on small shaft components and precision mechanical parts, where the tungsten carbide material ensures cutting edge strength and machining stability at micro-diameter dimensions.
- Multi-Flute Stable Forming: The 4–6 flute configuration evenly distributes cutting load — recommended for precision key seat forming and finishing operations, effectively improving slot wall surface finish and dimensional consistency.
- Precision Thin Flute Length Full Coverage: Flute lengths spanning the precision thin range of 0.5–5mm — recommended for flexible selection based on standard key seat widths for shaft diameters, ensuring key seat fit tolerances meet specification requirements.
【Machining Applications & Uses】
- Primary Use: Precision key seat forming, micro-diameter shaft component key slot milling, and mechanical power transmission component fit slot machining.
- Recommended Work Materials:
- P-Class (Carbon Steel / Alloy Steel): Structural steel, carbon steel, and alloy steel — recommended for hardness below HRC30, where the tungsten carbide super-hard characteristics deliver stable key seat forming cutting performance.
- M-Class (Stainless Steel): SUS304, SUS316, SUS420, and other high-toughness stainless steel and white iron — the tungsten carbide substrate combined with multi-flute design effectively suppresses adhesion and maintains cutting stability.
- K-Class (Cast Iron): Cast iron and gray iron wear-resistant materials — the tungsten carbide high-hardness capability provides outstanding wear-resistant tool life.
- N-Class (Non-Ferrous Metals): Aluminum alloys, pure copper, brass, and engineering plastics — softer and adhesion-prone materials where the use of appropriate cutting fluid is recommended to ensure smooth chip evacuation and surface quality during key seat machining.
