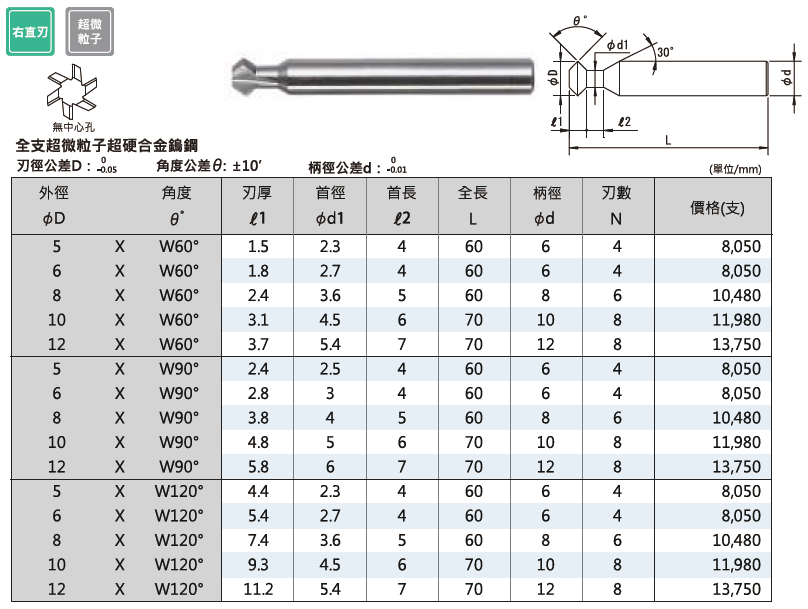

AVTJRCSMWSolid Carbide Mini W Type Dovetail Cutter CSMW已售出0個Solid Carbide Mini W Type Dovetail Cutter CSMW is a Japan-made solid carbide form milling cutter, ideal for dovetail grooves, slide rails and wedge-shaped slots. Available in diameter 5~12mm, angle 60~120°, flute length 1.5~11.2mm, effective length 4~7mm, overall length 60~70mm, 4-8 flutes. Machines carbon & alloy steel, stainless steel, cast iron, aluminum/copper & non-ferrous, up to HRC50.
商品分類
標籤
Keyseat Cutter
Product Overview: Tungsten Carbide W-Type Dovetail Slot Cutter – CSMW Series
【Product Features & Why We Recommend It】
- Japanese Original Manufacturer Quality: Manufactured directly by a Japanese original factory with rigorous quality control — recommended for users with high demands on W-type dovetail slot forming accuracy and tool durability.
- W-Type Dovetail Dedicated Geometry: Features a specialized W-type geometry with included angle coverage spanning 60–120° — recommended for precise selection based on workpiece dovetail slot specifications, ensuring slot profile dimensions and fit accuracy meet requirements.
- Tungsten Carbide High-Hardness Capability: Manufactured with tungsten carbide, capable of machining materials up to HRC50 — offering superior wear resistance compared to HSS dovetail cutters, recommended for higher-hardness steel and cast iron machining applications.
- Multi-Flute Stable Forming: The 4–8 flute configuration evenly distributes cutting load — recommended for precision dovetail slot forming and finishing operations, effectively improving slot surface finish and dimensional consistency.
- Compact Specification Flexible Selection: Available in diameter 5–12mm and flute length 1.5–11.2mm — recommended for flexible selection based on dovetail slot dimensions and workpiece material, suitable for dovetail slot machining needs across various mechanical structural components.
【Machining Applications & Uses】
- Primary Use: W-type dovetail slot forming milling, slideway dovetail slot machining, and mechanical guide slot precision forming.
- Recommended Work Materials:
- P-Class (Carbon Steel / Alloy Steel): Structural steel, carbon steel, and alloy steel — recommended for hardness below HRC30, delivering stable dovetail slot forming cutting performance.
- M-Class (Stainless Steel): SUS304, SUS316, SUS420, and other high-toughness stainless steel and white iron — the tungsten carbide substrate combined with multi-flute design effectively suppresses adhesion and maintains cutting stability.
- K-Class (Cast Iron): Cast iron and gray iron wear-resistant materials — the tungsten carbide high-hardness capability provides outstanding wear-resistant tool life.
- N-Class (Non-Ferrous Metals): Aluminum alloys, pure copper, brass, and engineering plastics — softer and adhesion-prone materials where the use of appropriate cutting fluid is recommended to ensure smooth chip evacuation during dovetail slot machining.
