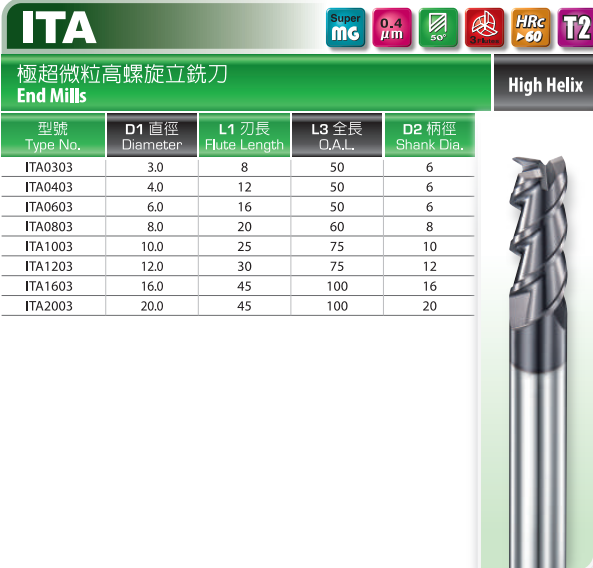

AVQDHITASolid Carbide Super Micro Grain High Spiral End Mill ITA已售出0個Solid Carbide Super Micro Grain High Spiral End Mill ITA is a Taiwan-made solid carbide end mill, suitable for general milling, profiling and slotting. Available in diameter 3~20mm, flute length 8~45mm, overall length 50~100mm, 3 flutes. T2-coated edge for wear/heat resistance and longer tool life. Machines carbon & alloy steel, up to HRC60. An ideal choice for machining hardened or high-hardness mold steel.
規格
請選擇規格 (可輸入關鍵字快速搜尋)
數量
最低購買數量：1
$ 547 ~ $ 6,947
商品分類
Cutting ToolsEnd MillsFlat End Mill
Solid Carbide Super Micro Grain High Spiral End Mill ITA
標籤

【Product Name】The ITA Series End Mill (Product Code: AVQDHITA) is a high-helix tool developed for precision machining, primarily addressing high cutting resistance and poor surface roughness in steel components.

【Key Features & Benefits】

  • 50-Degree High Helix Design: The steep helix angle provides a much sharper cutting action, efficiently evacuating chips and reducing heat buildup, which significantly improves the surface finish of the workpiece.

  • Optimized for P-class Steel: Recommended for structural steel, carbon steel, and alloy steel under HRC30. It excels in applications where high precision and aesthetic surface quality are required.

  • Premium Material Specs: Built with SMG0.4 carbide and T2 coating, capable of handling up to HRC60. This ensures excellent wear resistance and edge strength during high-speed operations.

  • Precision Choice: Due to its low cutting force, it is highly recommended for thin-walled parts or slender profiling where vibration control and dimensional stability are critical.

【Applications & Usage】

  • Primary Applications: Ideal for high-quality profiling, slotting, and side finishing of precision molds and components.

  • Recommended Materials: ISO P (Structural Steel, Carbon Steel, Alloy Steel). Specially recommended for materials under HRC30 with strict surface integrity requirements.
