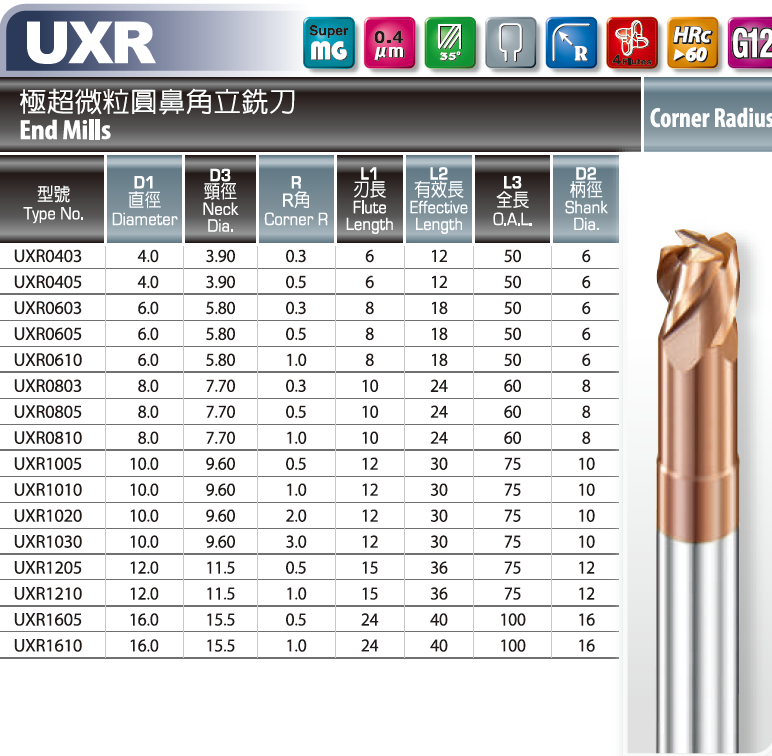

AVRDHULXRSolid Carbide Corner Radius End Mill for High Hardness Long Shank ULXRSold0pcsDHF Solid Carbide Corner Radius End Mill for High Hardness Long Shank ULXR, commonly called a bull nose or corner radius cutter, carries a corner radius so it can rough and clean floors in one tool. Sister series include UXR (sizes 4~16mm). What sets this one apart is a sub-micron SMG0.4 substrate with a G12 coating, rated to HRC60. It covers diameter 6~16mm, corner radius 0.5~2mm, flute length 6~16mm, effective length 18~40mm, overall length 75~150mm, 4 flutes, in 12 sizes, made in Taiwan. It machines cast iron, hardened and high-hardness mould steel. What is the smallest diameter? 6mm. Can it cut hardened steel? Yes — that is exactly what it is for. Why the long shank? Only when the holder would foul a deep workpiece — otherwise a standard shank is stiffer. Typical uses: deep-cavity mould roughing, floor clean-up and wall profiling, continuous milling where edge life matters.
Specification
Please select a specification (you can type keywords to search)
Quantity
Minimum purchase quantity: 1
$ 1,120 ~ $ 8,421
Product Categories
Cutting ToolsEnd MillCorner Radius End Mill
Solid Carbide Corner Radius End Mill for High Hardness Long Shank ULXR
Tags
Long Shank
For Hardened Steel

Solid Carbide Corner Radius End Mill for High Hardness Long Shank ULXR



DHF Solid Carbide Corner Radius End Mill for High Hardness Long Shank ULXR, commonly called a bull nose or corner radius cutter, carries a corner radius so it can rough and clean floors in one tool.

  • Dia. 6 ~ 16
  • Corner radius 0.5 ~ 2
  • Flutes 4
  • Material Carbide SMG0.4
  • Coating G12
  • Max. hardness HRC60

Specifications (12 items)

Part No. Dia. Corner radius Flute length Usable length Overall length Shank dia. Flutes
AVRDHULXR0605 6 0.5 6 18 75 6 4
AVRDHULXR0610 6 1 6 18 75 6 4
AVRDHULXR0805 8 0.5 8 24 100 8 4
AVRDHULXR0810 8 1 8 24 100 8 4
AVRDHULXR1005 10 0.5 10 30 100 10 4
AVRDHULXR1010 10 1 10 30 100 10 4
AVRDHULXR1020 10 2 10 30 100 10 4
AVRDHULXR1205 12 0.5 12 36 100 12 4
AVRDHULXR1210 12 1 12 36 100 12 4
AVRDHULXR1220 12 2 12 36 100 12 4
AVRDHULXR1610 16 1 16 40 150 16 4
AVRDHULXR1620 16 2 16 40 150 16 4

Size range

Dia. 6 ~ 16
Corner radius 0.5 ~ 2
Flute length 6 ~ 16
Usable length 18 ~ 40
Overall length 75 ~ 150
Shank dia. 6 ~ 16

Product description

DHF Solid Carbide Corner Radius End Mill for High Hardness Long Shank ULXR, commonly called a bull nose or corner radius cutter, carries a corner radius so it can rough and clean floors in one tool. Sister series include UXR (sizes 4~16mm). What sets this one apart is a sub-micron SMG0.4 substrate with a G12 coating, rated to HRC60. It covers diameter 6~16mm, corner radius 0.5~2mm, flute length 6~16mm, effective length 18~40mm, overall length 75~150mm, 4 flutes, in 12 sizes, made in Taiwan. It machines cast iron, hardened and high-hardness mould steel. What is the smallest diameter? 6mm. Can it cut hardened steel? Yes — that is exactly what it is for. Why the long shank? Only when the holder would foul a deep workpiece — otherwise a standard shank is stiffer. Typical uses: deep-cavity mould roughing, floor clean-up and wall profiling, continuous milling where edge life matters.

Workpiece materials & hardness

  • K – Cast iron
  • H – Hardened materials

Max. workpiece hardness HRC60 · Through coolant No

Tags

  • Long Shank
  • For Hardened Steel
