AVRDHUPJSolid Carbide Heavy Duty End Mill UPJSold0pcsDHF Solid Carbide Heavy Duty End Mill UPJ, commonly called a bull nose or corner radius cutter, carries a corner radius so it can rough and clean floors in one tool. It is built on a sub-micron SMG0.4 substrate with a G10 coating, rated to HRC60. It covers diameter 3~20mm, corner radius 0.2~1mm, flute length 8~50mm, overall length 50~110mm, 4 flutes, in 9 sizes, made in Taiwan. It machines stainless steel. What is the smallest diameter? 3mm. Can it cut hardened steel? Yes — that is exactly what it is for. Typical uses: mould roughing, floor clean-up and wall profiling, continuous milling where edge life matters.
Specification
Please select a specification (you can type keywords to search)
Quantity
Minimum purchase quantity: 1
$ 1,263 ~ $ 10,526
Product Categories
Cutting ToolsEnd MillCorner Radius End Mill
Solid Carbide Heavy Duty End Mill UPJ
Tags
High Rigidity

Solid Carbide Heavy Duty End Mill UPJ



DHF Solid Carbide Heavy Duty End Mill UPJ, commonly called a bull nose or corner radius cutter, carries a corner radius so it can rough and clean floors in one tool.

  • Dia. 3 ~ 20
  • Corner radius 0.2 ~ 1
  • Flutes 4
  • Material Carbide SMG0.4
  • Coating G10
  • Max. hardness HRC60

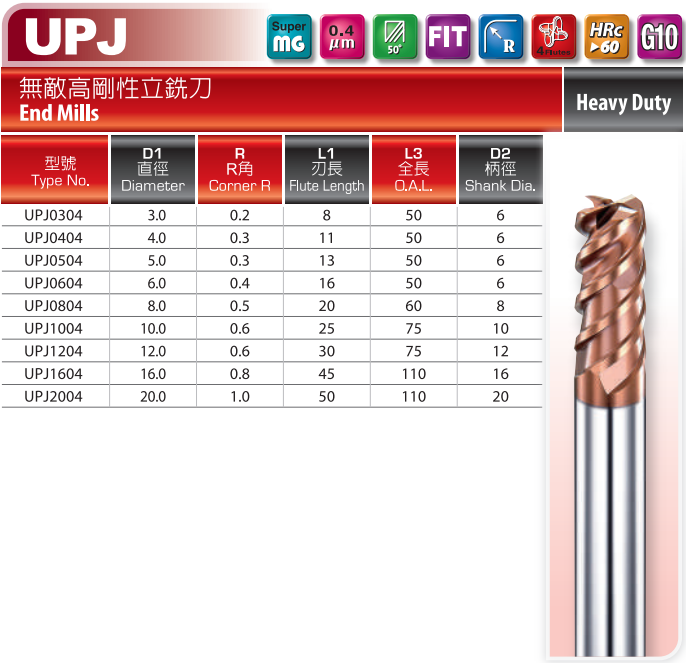

Specifications (9 items)

Part No. Dia. Corner radius Flute length Overall length Shank dia. Flutes
AVRDHUPJ0304 3 0.2 8 50 6 4
AVRDHUPJ0404 4 0.3 11 50 6 4
AVRDHUPJ0504 5 0.3 13 50 6 4
AVRDHUPJ0604 6 0.4 16 50 6 4
AVRDHUPJ0804 8 0.5 20 60 8 4
AVRDHUPJ1004 10 0.6 25 75 10 4
AVRDHUPJ1204 12 0.6 30 75 12 4
AVRDHUPJ1604 16 0.8 45 110 16 4
AVRDHUPJ2004 20 1 50 110 20 4

Size range

Dia. 3 ~ 20
Corner radius 0.2 ~ 1
Flute length 8 ~ 50
Overall length 50 ~ 110
Shank dia. 6 ~ 20

Product description

DHF Solid Carbide Heavy Duty End Mill UPJ, commonly called a bull nose or corner radius cutter, carries a corner radius so it can rough and clean floors in one tool. It is built on a sub-micron SMG0.4 substrate with a G10 coating, rated to HRC60. It covers diameter 3~20mm, corner radius 0.2~1mm, flute length 8~50mm, overall length 50~110mm, 4 flutes, in 9 sizes, made in Taiwan. It machines stainless steel. What is the smallest diameter? 3mm. Can it cut hardened steel? Yes — that is exactly what it is for. Typical uses: mould roughing, floor clean-up and wall profiling, continuous milling where edge life matters.

Workpiece materials & hardness

  • M – Stainless steel

Max. workpiece hardness HRC60 · Through coolant No

Tags

  • High Rigidity
