AVRDHUNERSolid Carbide Long Neck Corner Radius End Mill UNERSold0pcsDHF Solid Carbide Long Neck Corner Radius End Mill UNER, commonly called a bull nose or corner radius cutter, carries a corner radius so it can rough and clean floors in one tool. Sister series include UNE (rated to HRC65), UXE (rated to HRC65). What sets this one apart is a sub-micron SMG0.2 substrate with a G15 coating, rated to HRC60. It covers diameter 1~3mm, corner radius 0.1~0.3mm, flute length 1.5~4mm, effective length 4~25mm, overall length 50~60mm, 2 flutes, in 123 sizes, made in Taiwan. It machines carbon and alloy steel, stainless steel, cast iron, titanium and other superalloys, hardened and high-hardness mould steel. What is the smallest diameter? 1mm. Can it cut hardened steel? Yes — that is exactly what it is for. Typical uses: mould roughing, floor clean-up and wall profiling, continuous milling where edge life matters.
Specification
Please select a specification (you can type keywords to search)
Quantity
Minimum purchase quantity: 1
$ 850 ~ $ 1,200
Product Categories
Cutting ToolsEnd MillCorner Radius End Mill
Solid Carbide Long Neck Corner Radius End Mill UNER
Tags
Deep Groove

Solid Carbide Long Neck Corner Radius End Mill UNER

DHF Solid Carbide Long Neck Corner Radius End Mill UNER, commonly called a bull nose or corner radius cutter, carries a corner radius so it can rough and clean floors in one tool.

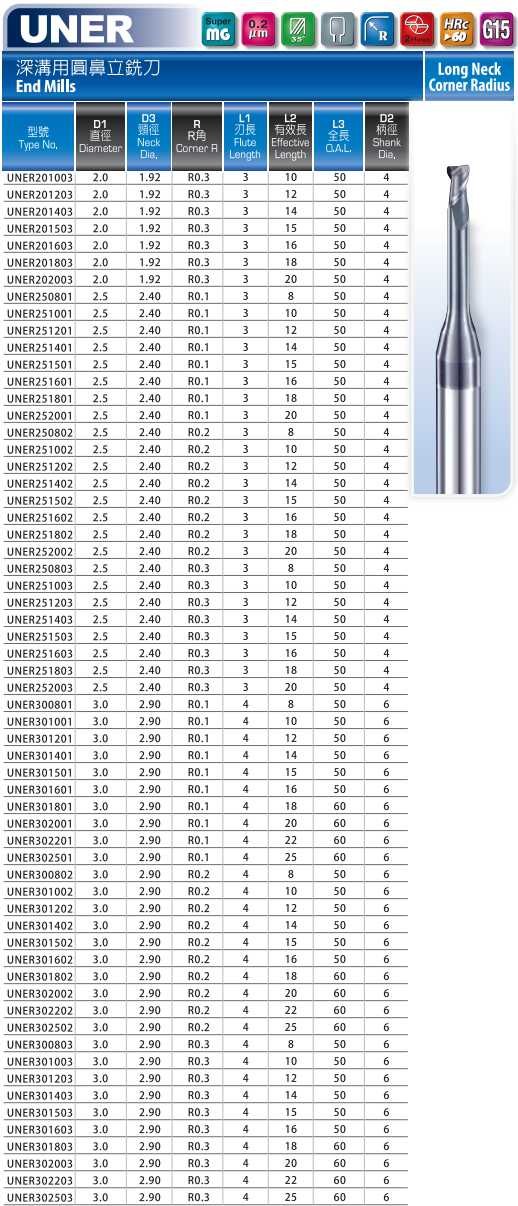

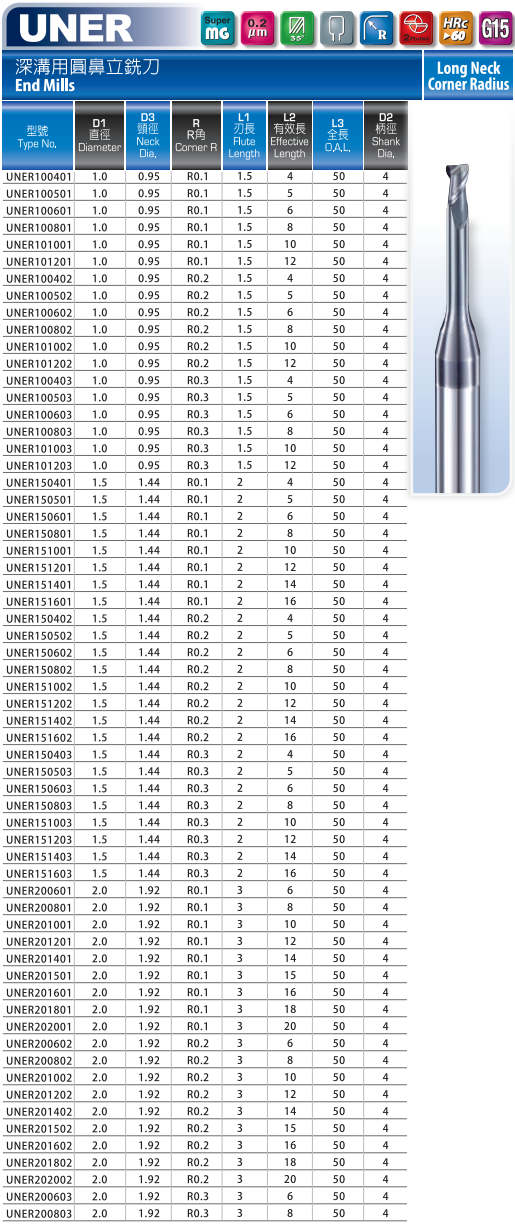

Specifications (123 items)

Dia. Corner radius Flute length Overall length Shank dia. Flutes
1 0.1~0.3 1.5 50 4 2
Expand this group (18 specs)
Part No. Dia. Corner radius Flute length Usable length Overall length Shank dia. Flutes
AVRDHUNER100401 1 0.1 1.5 4 50 4 2
AVRDHUNER100501 1 0.1 1.5 5 50 4 2
AVRDHUNER100601 1 0.1 1.5 6 50 4 2
AVRDHUNER100801 1 0.1 1.5 8 50 4 2
AVRDHUNER101001 1 0.1 1.5 10 50 4 2
AVRDHUNER101201 1 0.1 1.5 12 50 4 2
AVRDHUNER100402 1 0.2 1.5 4 50 4 2
AVRDHUNER100502 1 0.2 1.5 5 50 4 2
AVRDHUNER100602 1 0.2 1.5 6 50 4 2
AVRDHUNER100802 1 0.2 1.5 8 50 4 2
AVRDHUNER101002 1 0.2 1.5 10 50 4 2
AVRDHUNER101202 1 0.2 1.5 12 50 4 2
AVRDHUNER100403 1 0.3 1.5 4 50 4 2
AVRDHUNER100503 1 0.3 1.5 5 50 4 2
AVRDHUNER100603 1 0.3 1.5 6 50 4 2
AVRDHUNER100803 1 0.3 1.5 8 50 4 2
AVRDHUNER101003 1 0.3 1.5 10 50 4 2
AVRDHUNER101203 1 0.3 1.5 12 50 4 2
1.5 0.1~0.3 2 50 4 2
Expand this group (24 specs)
Part No. Dia. Corner radius Flute length Usable length Overall length Shank dia. Flutes
AVRDHUNER150401 1.5 0.1 2 4 50 4 2
AVRDHUNER150501 1.5 0.1 2 5 50 4 2
AVRDHUNER150601 1.5 0.1 2 6 50 4 2
AVRDHUNER150801 1.5 0.1 2 8 50 4 2
AVRDHUNER151001 1.5 0.1 2 10 50 4 2
AVRDHUNER151201 1.5 0.1 2 12 50 4 2
AVRDHUNER151401 1.5 0.1 2 14 50 4 2
AVRDHUNER151601 1.5 0.1 2 16 50 4 2
AVRDHUNER150402 1.5 0.2 2 4 50 4 2
AVRDHUNER150502 1.5 0.2 2 5 50 4 2
AVRDHUNER150602 1.5 0.2 2 6 50 4 2
AVRDHUNER150802 1.5 0.2 2 8 50 4 2
AVRDHUNER151002 1.5 0.2 2 10 50 4 2
AVRDHUNER151202 1.5 0.2 2 12 50 4 2
AVRDHUNER151402 1.5 0.2 2 14 50 4 2
AVRDHUNER151602 1.5 0.2 2 16 50 4 2
AVRDHUNER150403 1.5 0.3 2 4 50 4 2
AVRDHUNER150503 1.5 0.3 2 5 50 4 2
AVRDHUNER150603 1.5 0.3 2 6 50 4 2
AVRDHUNER150803 1.5 0.3 2 8 50 4 2
AVRDHUNER151003 1.5 0.3 2 10 50 4 2
AVRDHUNER151203 1.5 0.3 2 12 50 4 2
AVRDHUNER151403 1.5 0.3 2 14 50 4 2
AVRDHUNER151603 1.5 0.3 2 16 50 4 2
2 0.1~0.3 3 50 4 2
Expand this group (27 specs)
Part No. Dia. Corner radius Flute length Usable length Overall length Shank dia. Flutes
AVRDHUNER200601 2 0.1 3 6 50 4 2
AVRDHUNER200801 2 0.1 3 8 50 4 2
AVRDHUNER201001 2 0.1 3 10 50 4 2
AVRDHUNER201201 2 0.1 3 12 50 4 2
AVRDHUNER201401 2 0.1 3 14 50 4 2
AVRDHUNER201501 2 0.1 3 15 50 4 2
AVRDHUNER201601 2 0.1 3 16 50 4 2
AVRDHUNER201801 2 0.1 3 18 50 4 2
AVRDHUNER202001 2 0.1 3 20 50 4 2
AVRDHUNER200602 2 0.2 3 6 50 4 2
AVRDHUNER200802 2 0.2 3 8 50 4 2
AVRDHUNER201002 2 0.2 3 10 50 4 2
AVRDHUNER201202 2 0.2 3 12 50 4 2
AVRDHUNER201402 2 0.2 3 14 50 4 2
AVRDHUNER201502 2 0.2 3 15 50 4 2
AVRDHUNER201602 2 0.2 3 16 50 4 2
AVRDHUNER201802 2 0.2 3 18 50 4 2
AVRDHUNER202002 2 0.2 3 20 50 4 2
AVRDHUNER200603 2 0.3 3 6 50 4 2
AVRDHUNER200803 2 0.3 3 8 50 4 2
AVRDHUNER201003 2 0.3 3 10 50 4 2
AVRDHUNER201203 2 0.3 3 12 50 4 2
AVRDHUNER201403 2 0.3 3 14 50 4 2
AVRDHUNER201503 2 0.3 3 15 50 4 2
AVRDHUNER201603 2 0.3 3 16 50 4 2
AVRDHUNER201803 2 0.3 3 18 50 4 2
AVRDHUNER202003 2 0.3 3 20 50 4 2
2.5 0.1~0.3 3 50 4 2
Expand this group (24 specs)
Part No. Dia. Corner radius Flute length Usable length Overall length Shank dia. Flutes
AVRDHUNER250801 2.5 0.1 3 8 50 4 2
AVRDHUNER251001 2.5 0.1 3 10 50 4 2
AVRDHUNER251201 2.5 0.1 3 12 50 4 2
AVRDHUNER251401 2.5 0.1 3 14 50 4 2
AVRDHUNER251501 2.5 0.1 3 15 50 4 2
AVRDHUNER251601 2.5 0.1 3 16 50 4 2
AVRDHUNER251801 2.5 0.1 3 18 50 4 2
AVRDHUNER252001 2.5 0.1 3 20 50 4 2
AVRDHUNER250802 2.5 0.2 3 8 50 4 2
AVRDHUNER251002 2.5 0.2 3 10 50 4 2
AVRDHUNER251202 2.5 0.2 3 12 50 4 2
AVRDHUNER251402 2.5 0.2 3 14 50 4 2
AVRDHUNER251502 2.5 0.2 3 15 50 4 2
AVRDHUNER251602 2.5 0.2 3 16 50 4 2
AVRDHUNER251802 2.5 0.2 3 18 50 4 2
AVRDHUNER252002 2.5 0.2 3 20 50 4 2
AVRDHUNER250803 2.5 0.3 3 8 50 4 2
AVRDHUNER251003 2.5 0.3 3 10 50 4 2
AVRDHUNER251203 2.5 0.3 3 12 50 4 2
AVRDHUNER251403 2.5 0.3 3 14 50 4 2
AVRDHUNER251503 2.5 0.3 3 15 50 4 2
AVRDHUNER251603 2.5 0.3 3 16 50 4 2
AVRDHUNER251803 2.5 0.3 3 18 50 4 2
AVRDHUNER252003 2.5 0.3 3 20 50 4 2
3 0.1~0.3 4 50~60 6 2
Expand this group (30 specs)
Part No. Dia. Corner radius Flute length Usable length Overall length Shank dia. Flutes
AVRDHUNER300801 3 0.1 4 8 50 6 2
AVRDHUNER301001 3 0.1 4 10 50 6 2
AVRDHUNER301201 3 0.1 4 12 50 6 2
AVRDHUNER301401 3 0.1 4 14 50 6 2
AVRDHUNER301501 3 0.1 4 15 50 6 2
AVRDHUNER301601 3 0.1 4 16 50 6 2
AVRDHUNER301801 3 0.1 4 18 60 6 2
AVRDHUNER302001 3 0.1 4 20 60 6 2
AVRDHUNER302201 3 0.1 4 22 60 6 2
AVRDHUNER302501 3 0.1 4 25 60 6 2
AVRDHUNER300802 3 0.2 4 8 50 6 2
AVRDHUNER301002 3 0.2 4 10 50 6 2
AVRDHUNER301202 3 0.2 4 12 50 6 2
AVRDHUNER301402 3 0.2 4 14 50 6 2
AVRDHUNER301502 3 0.2 4 15 50 6 2
AVRDHUNER301602 3 0.2 4 16 50 6 2
AVRDHUNER301802 3 0.2 4 18 60 6 2
AVRDHUNER302002 3 0.2 4 20 60 6 2
AVRDHUNER302202 3 0.2 4 22 60 6 2
AVRDHUNER302502 3 0.2 4 25 60 6 2
AVRDHUNER300803 3 0.3 4 8 50 6 2
AVRDHUNER301003 3 0.3 4 10 50 6 2
AVRDHUNER301203 3 0.3 4 12 50 6 2
AVRDHUNER301403 3 0.3 4 14 50 6 2
AVRDHUNER301503 3 0.3 4 15 50 6 2
AVRDHUNER301603 3 0.3 4 16 50 6 2
AVRDHUNER301803 3 0.3 4 18 60 6 2
AVRDHUNER302003 3 0.3 4 20 60 6 2
AVRDHUNER302203 3 0.3 4 22 60 6 2
AVRDHUNER302503 3 0.3 4 25 60 6 2

Specification Range

Diameter 1~3mm
Corner radius 0.1~0.3mm
Flute length 1.5~4mm
Effective length 4~25mm
Overall length 50~60mm
Shank diameter 4~6mm

Product Description

DHF Solid Carbide Long Neck Corner Radius End Mill UNER, commonly called a bull nose or corner radius cutter, carries a corner radius so it can rough and clean floors in one tool. Sister series include UNE (rated to HRC65), UXE (rated to HRC65). What sets this one apart is a sub-micron SMG0.2 substrate with a G15 coating, rated to HRC60. It covers diameter 1~3mm, corner radius 0.1~0.3mm, flute length 1.5~4mm, effective length 4~25mm, overall length 50~60mm, 2 flutes, in 123 sizes, made in Taiwan. It machines carbon and alloy steel, stainless steel, cast iron, titanium and other superalloys, hardened and high-hardness mould steel. What is the smallest diameter? 1mm. Can it cut hardened steel? Yes — that is exactly what it is for. Typical uses: mould roughing, floor clean-up and wall profiling, continuous milling where edge life matters.

Workpiece Materials & Hardness

  • Steel (P)
  • Stainless steel (M)
  • Cast iron (K)
  • Heat-resistant superalloys (S)
  • Hardened steel (H)

Max. workpiece hardness HRC60
