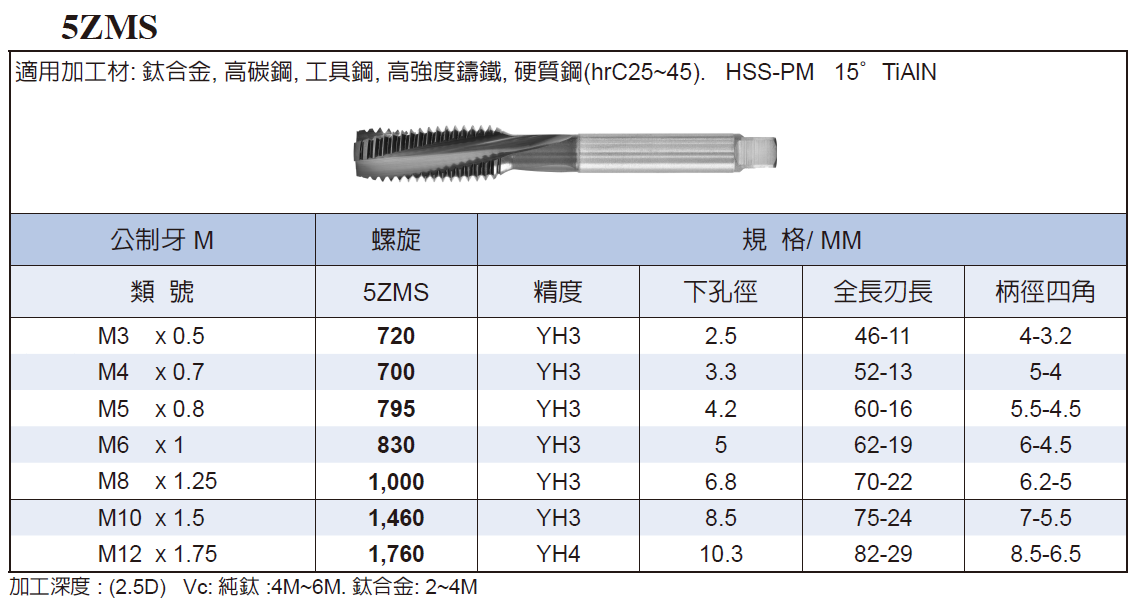

ANXCD5ZMSHSS Titanium Alloy Spiral Flute Tap Metric 5ZMS已售出0個A French-brand spiral flute tap built from powder-metallurgy HSS, the 5ZMS, ideal for tapping blind (non-through) holes — its spiral flutes pull chips back toward the shank, keeping the hole bottom clear. Available in 7 sizes (thread dia 3~12, pitch 0.5~1.75, thread length 7.5~30mm, overall length 46~82mm, shank dia 4~8.5mm). A TiAlN coating offers high-temperature wear resistance. Suitable for machining carbon and alloy steel, cast iron, workpiece hardness up to HRC35. French brand, consistent quality.
商品分類
標籤
Titanium Alloy Tap
Product Overview: HSS Titanium Alloy Dedicated Spiral Flute Tap Metric – 5ZMS Series
【Product Features & Why We Recommend It】
- French Brand Professional Quality: Originating from a professional French cutting tool brand with rigorous quality control — recommended for users with high demands on titanium alloy and other difficult-to-machine material metric spiral blind hole tapping accuracy and tool durability.
- Titanium Alloy Dedicated Optimized Geometry: Features a spiral flute tap geometry specifically optimized for the extreme difficult-to-machine characteristics of titanium alloys — including high strength, low thermal conductivity, and susceptibility to chemical reactions with tool materials — the spiral design pulls chips upward and out, recommended for titanium alloy metric blind hole tapping operations, effectively managing chip evacuation and reducing cutting heat accumulation risk.
- HSS-PM Powder Metallurgy Premium Substrate: Manufactured with powder metallurgy high-speed steel (HSS-PM), delivering extremely uniform carbide distribution, outstanding toughness, and wear resistance — recommended for long-duration stable spiral blind hole tapping of extremely difficult-to-machine materials such as titanium alloys, providing superior tool life compared to standard HSS and HSS-CO.
- TiAlN Premium Coating Enhancement: The surface is treated with TiAlN coating, providing higher heat resistance and oxidation resistance compared to TiN and TiCN coatings — recommended for spiral tapping of difficult-to-machine materials with high cutting temperatures such as titanium alloys, maintaining outstanding wear resistance performance even at elevated temperatures and significantly extending tool change intervals.
- 7 Metric Specification Precise Coverage: Available in thread diameter 3–12mm and pitch 0.5–1.75mm across 7 specifications — recommended as the dedicated high-performance stock tool for titanium alloy and carbon steel/cast iron metric blind hole spiral tapping.
【Machining Applications & Uses】
- Primary Use: Titanium alloy precision metric blind hole spiral tapping, carbon steel, alloy steel, and cast iron high-hardness blind hole thread forming, and difficult-to-machine material tapping operations in aerospace and precision machinery.
- Recommended Work Materials:
- S-Class (Titanium Alloys): Ti-6Al-4V, pure titanium, and various titanium alloys — the most advantageous core recommended application scenario for this series, where the titanium alloy dedicated geometry combined with HSS-PM substrate and TiAlN coating effectively addresses the extreme challenges of high temperature, adhesion, and chemical reactions during titanium alloy tapping, recommended for use with appropriate cutting fluid.
- P-Class (Carbon Steel / Alloy Steel): Structural steel, carbon steel, and alloy steel — recommended for hardness below HRC35, where the TiAlN coating provides outstanding wear-resistant blind hole tapping performance.
- K-Class (Cast Iron): Cast iron and gray iron — the TiAlN coating's outstanding wear resistance characteristics provide excellent blind hole tapping tool life.
