ANVCD5GPMulti Purpose Spiral Point Tap Metric 5GP已售出0個The 5GP is a French-brand spiral point tap made of HSS-EX, ideal for tapping through holes — its spiral point pushes chips forward for fast, clean threading. Available in 65 sizes (thread dia 1.4~36, pitch 0.3~4, thread length 4.2~108mm, overall length 36~155mm, shank dia 3~28mm). Black-oxide finish resists galling and rust. Suitable for machining carbon and alloy steel, non-ferrous metals like aluminium and copper, workpiece hardness up to HRC30. French brand, consistent quality.
商品分類
標籤
Product Overview: HSS Multi-Purpose Spiral Point Tap Metric – 5GP Series
【Product Features & Why We Recommend It】
- French Brand Professional Quality: Originating from a professional French cutting tool brand with rigorous quality control — recommended for users with standard demands on metric thread tapping cost-effectiveness and multi-material versatility.
- Multi-Purpose Versatile Design: Features a multi-purpose spiral point tap geometry — recommended for metric through-hole tapping across multiple materials from carbon steel and alloy steel to non-ferrous metals, effectively addressing diverse daily machining application needs with a single tool to reduce stock tool variety.
- HSS-EX Ultra-High Performance Substrate: Manufactured with HSS-EX ultra-high performance high-speed steel, delivering superior hardness, toughness, and wear resistance compared to standard HSS and HSS-CO — recommended for long-duration stable tapping in daily machining applications, providing superior tool life compared to standard HSS.
- Black Oxide Surface Treatment: The surface is treated with black oxide (Steam Oxide) finishing, providing good lubricity and anti-adhesion characteristics — recommended for metric tapping of carbon steel and non-ferrous metals, effectively reducing friction between chips and the tool and preventing built-up edge formation.
- Spiral Point Through-Hole Design: Features a spiral point tap design that pushes chips forward and out of the hole — recommended for multi-material metric through-hole tapping operations, ensuring smooth chip evacuation and thread accuracy.

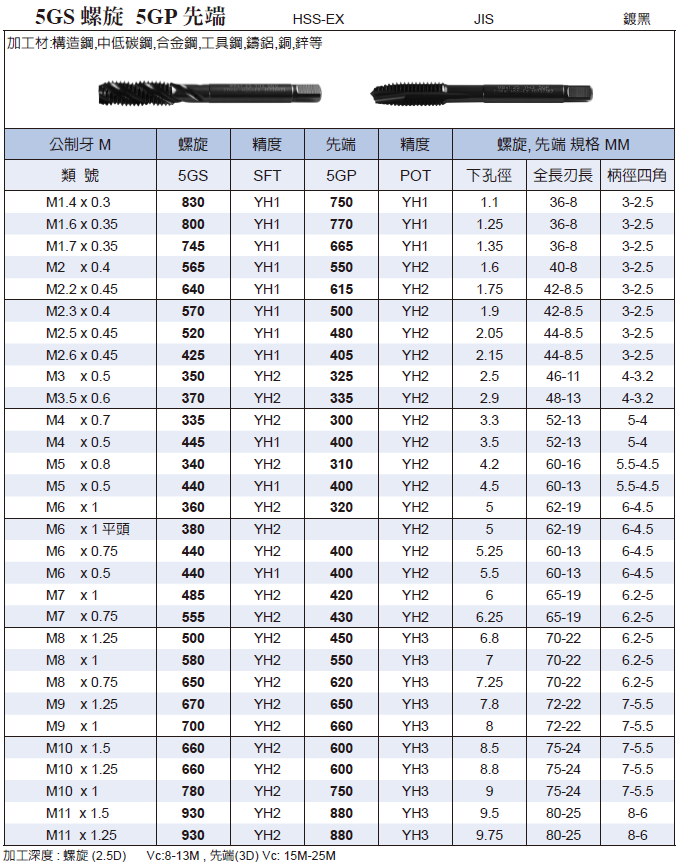

- 65 Metric Specification Wide Coverage: Available in thread diameter 1.4–36mm and pitch 0.3–4mm across 65 specifications — recommended as the economical and practical general-purpose stock tool for daily metric through-hole tapping in factories and machining centers.
【Machining Applications & Uses】
- Primary Use: Metric multi-material through-hole daily tapping, carbon steel and alloy steel thread forming, and non-ferrous metal metric thread machining.
- Recommended Work Materials:
- P-Class (Carbon Steel / Alloy Steel): Structural steel, carbon steel, and alloy steel — recommended for hardness below HRC30, where HSS-EX combined with black oxide treatment delivers stable daily metric tapping performance.
- N-Class (Non-Ferrous Metals): Aluminum alloys, pure copper, brass, and other non-ferrous metals — the black oxide surface treatment effectively suppresses built-up edge adhesion, while the spiral point design ensures smooth long chip evacuation, recommended for use with appropriate cutting fluid.
