ANVCD5GFPMulti Purpose Spiral Point Tap UNF 5GFP已售出0個The UNF 5GFP is a French-brand spiral point tap made of HSS-EX, ideal for tapping through holes — its spiral point pushes chips forward for fast, clean threading. Available in 16 sizes (thread dia 1~9, pitch 12~48, thread length 3mm, overall length 44~125mm, shank dia 3~20mm). Black-oxide finish resists galling and rust. Suitable for machining carbon and alloy steel, non-ferrous metals like aluminium and copper, workpiece hardness up to HRC30. French brand, consistent quality.
商品分類
標籤
Product Overview: HSS Multi-Purpose Spiral Point Tap UNF – 5GFP Series
【Product Features & Why We Recommend It】
- French Brand Professional Quality: Originating from a professional French cutting tool brand with rigorous quality control — recommended for users with standard demands on UNF American standard fine thread tapping cost-effectiveness and multi-material versatility.
- Multi-Purpose UNF Fine Thread Versatile Design: Features a multi-purpose spiral point tap geometry — recommended for UNF fine thread through-hole tapping across multiple materials from carbon steel and alloy steel to non-ferrous metals, effectively addressing diverse daily North American fine thread specification machining needs with a single tool to reduce stock tool variety and management costs, where the fine thread design provides higher thread strength and locking reliability compared to UNC coarse threads.
- HSS-EX Ultra-High Performance Substrate: Manufactured with HSS-EX ultra-high performance high-speed steel, delivering superior hardness, toughness, and wear resistance compared to standard HSS and HSS-CO — recommended for long-duration stable UNF fine thread tapping in daily machining applications, providing superior tool life compared to standard HSS.
- Black Oxide Surface Treatment: The surface is treated with black oxide (Steam Oxide) finishing, providing good lubricity and anti-adhesion characteristics — recommended for UNF fine thread tapping of carbon steel and non-ferrous metals, effectively reducing friction between chips and the tool and preventing built-up edge formation.
- Spiral Point Through-Hole Design: Features a spiral point tap design that pushes chips forward and out of the hole — recommended for multi-material UNF fine thread through-hole tapping operations, ensuring smooth chip evacuation and thread accuracy.

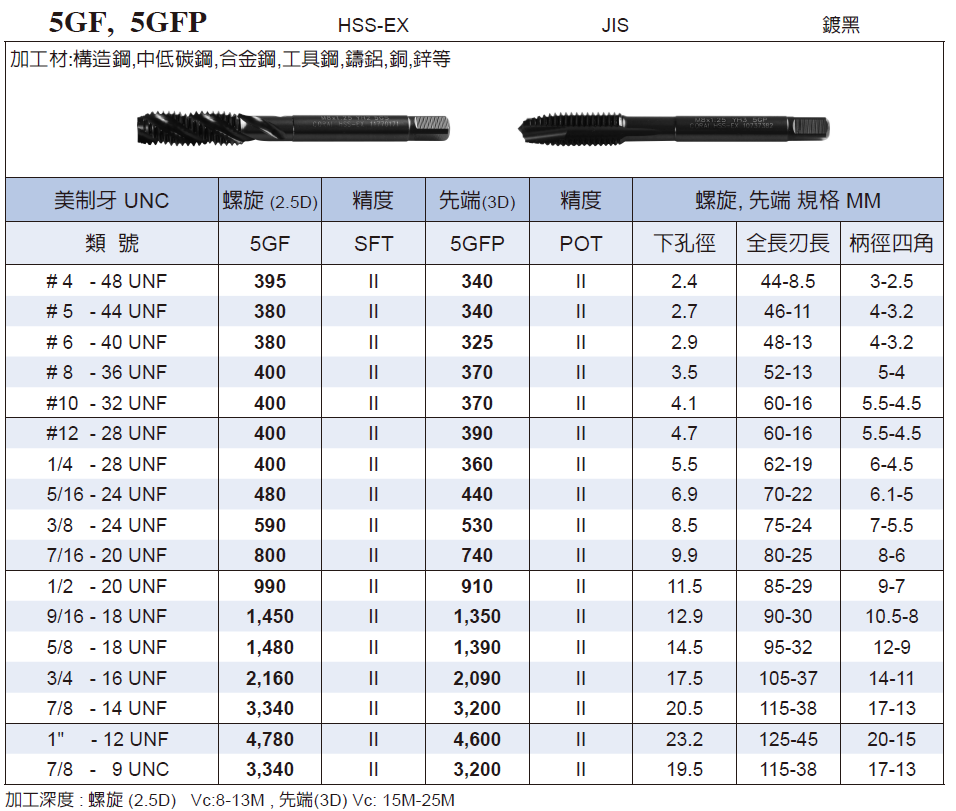

- 16 UNF Specification Precise Coverage: Available in thread diameter 1–9 inches and pitch 12–48 TPI across 16 specifications — recommended as the economical and practical stock tool for daily UNF fine thread through-hole tapping in factories and machining centers, covering common North American fine thread specification workpiece tapping requirements.
【Machining Applications & Uses】
- Primary Use: UNF fine thread multi-material through-hole daily tapping, precision machinery UNF fine thread forming, and non-ferrous metal UNF fine thread machining.
- Recommended Work Materials:
- P-Class (Carbon Steel / Alloy Steel): Structural steel, carbon steel, and alloy steel — recommended for hardness below HRC30, where HSS-EX combined with black oxide treatment delivers stable daily UNF fine thread tapping performance.
- N-Class (Non-Ferrous Metals): Aluminum alloys, pure copper, brass, and other non-ferrous metals — the black oxide surface treatment effectively suppresses built-up edge adhesion, while the spiral point design ensures smooth chip evacuation for fine threads, recommended for use with appropriate cutting fluid.
