ANBCD5OMPOversize Spiral Point Tap Metric 5OMP已售出0個Made of HSS-EX, the 5OMP is a French-brand oversize tap, ideal for slightly oversized threads, made for repairing stripped/damaged threads or compensating casting shrinkage. Available in 144 sizes (thread dia 3~20, pitch 0.5~2.5, thread length 7.5~50mm). Suitable for machining carbon and alloy steel, stainless steel, cast iron, non-ferrous metals like aluminium and copper, workpiece hardness up to HRC45. French brand, consistent quality.
商品分類
標籤
Oversize Tap
Shrinkage Prevention
Product Overview: HSS Oversize Tap Spiral Point Metric – 5OMP Series
【Product Features & Why We Recommend It】
- French Brand Professional Quality: Originating from a professional French cutting tool brand with rigorous quality control — recommended for users with high demands on metric thread repair and oversize through-hole tapping accuracy and multi-material versatility.
- Oversize Tap Spiral Point Through-Hole Repair Design: Features a spiral point oversize tap geometry that pushes chips forward and out of the hole — with a thread diameter specification larger than standard taps, recommended for metric through-hole thread repair and oversize machining after thread stripping, chipping, or damage, providing higher repair tapping efficiency in through-hole applications compared to the spiral flute version (5OMS), effectively restoring threaded hole functionality.
- HSS-EX Ultra-High Performance Substrate: Manufactured with HSS-EX ultra-high performance high-speed steel, with maximum machining hardness up to HRC45 — delivering superior hardness, toughness, and wear resistance compared to standard HSS and HSS-CO, recommended for long-duration stable metric spiral point through-hole repair tapping across various materials.
- TiN Coating Enhancement: The surface is treated with TiN coating, providing good wear resistance and heat resistance — recommended for continuous oversize spiral point repair tapping of carbon steel, stainless steel, cast iron, and non-ferrous metals, effectively extending tool change intervals.

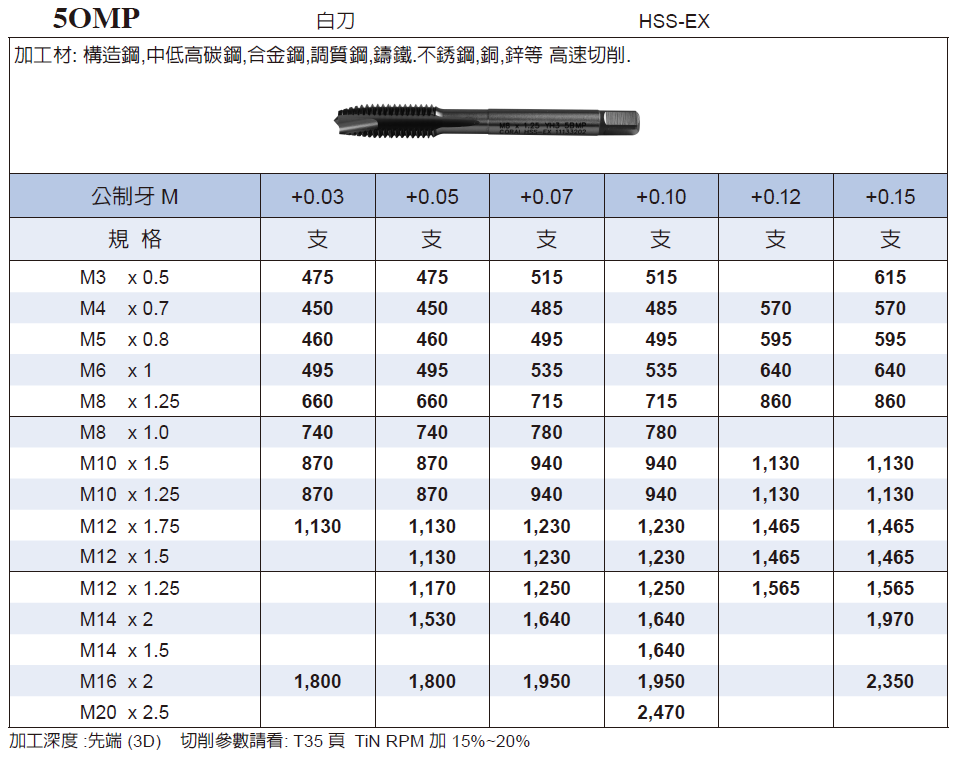

- 144 Metric Specification Ultra-Wide Coverage: Available in thread diameter 3–20mm and pitch 0.5–2.5mm across 144 specifications — recommended as the most comprehensive metric through-hole spiral point oversize repair tapping stock tool for factories and maintenance centers, covering thread repair needs across all types of workpieces.
【Machining Applications & Uses】
- Primary Use: Metric through-hole stripped thread repair and oversize tapping, damaged threaded hole functionality restoration, and mold and equipment on-site maintenance metric through-hole thread repair.
- Recommended Work Materials:
- P-Class (Carbon Steel / Alloy Steel): Structural steel, carbon steel, and alloy steel — recommended for hardness below HRC45, where HSS-EX combined with TiN coating delivers stable spiral point oversize repair tapping performance.
- M-Class (Stainless Steel): SUS304, SUS316, and other high-toughness stainless steel — the spiral point design effectively manages continuous chip forward evacuation, recommended for use with appropriate cutting fluid.
- K-Class (Cast Iron): Cast iron and gray iron — the TiN coating provides outstanding wear-resistant repair tapping tool life.
- N-Class (Non-Ferrous Metals): Aluminum alloys, pure copper, brass, and other non-ferrous metals — the spiral point design ensures smooth through-hole chip evacuation, preventing built-up edge from affecting repair thread quality.
