ANVCD5WPPM General Purpose Spiral Point Tap Whitworth 5WP已售出0個Crafted in powder-metallurgy HSS, the 5WP is a high-quality French-brand spiral point tap, ideal for tapping through holes — its spiral point pushes chips forward for fast, clean threading. Available in 26 sizes (thread dia 1~9, pitch 8~40, thread length 3mm, overall length 46~125mm, shank dia 4~20mm). A TiN coating adds a hard golden film for better wear and anti-galling, extending tool life. Suitable for machining carbon and alloy steel, stainless steel, cast iron, non-ferrous metals like aluminium and copper, workpiece hardness up to HRC35. French brand, consistent quality.
商品分類
Cutting ToolsTapSpiral Point Tap (for Through Holes)
PM General Purpose Spiral Point Tap Whitworth 5WP
標籤
Product Overview: Powder Metallurgy General-Purpose Spiral Point Tap Imperial – 5WP Series
【Product Features & Why We Recommend It】
- French Brand Professional Quality: Originating from a professional French cutting tool brand with rigorous quality control — recommended for users with high demands on imperial thread tapping accuracy and tool consistency.
- HSS-PM Powder Metallurgy High-Performance Substrate: Manufactured with powder metallurgy high-speed steel (HSS-PM), delivering more uniform carbide distribution, higher toughness, and superior wear resistance compared to standard HSS and HSS-CO — recommended for applications requiring long-duration stable imperial thread tapping or machining of harder materials.
- Spiral Point Through-Hole Design: Features a spiral point tap design that pushes chips forward and out of the hole — recommended for imperial through-hole tapping operations, effectively preventing chip accumulation at the hole bottom to ensure smooth tapping and thread accuracy.
- TiN Coating Enhancement: The surface is treated with TiN coating, providing good wear resistance and heat resistance — recommended for continuous imperial thread tapping of carbon steel, alloy steel, stainless steel, and cast iron, effectively extending tool change intervals.

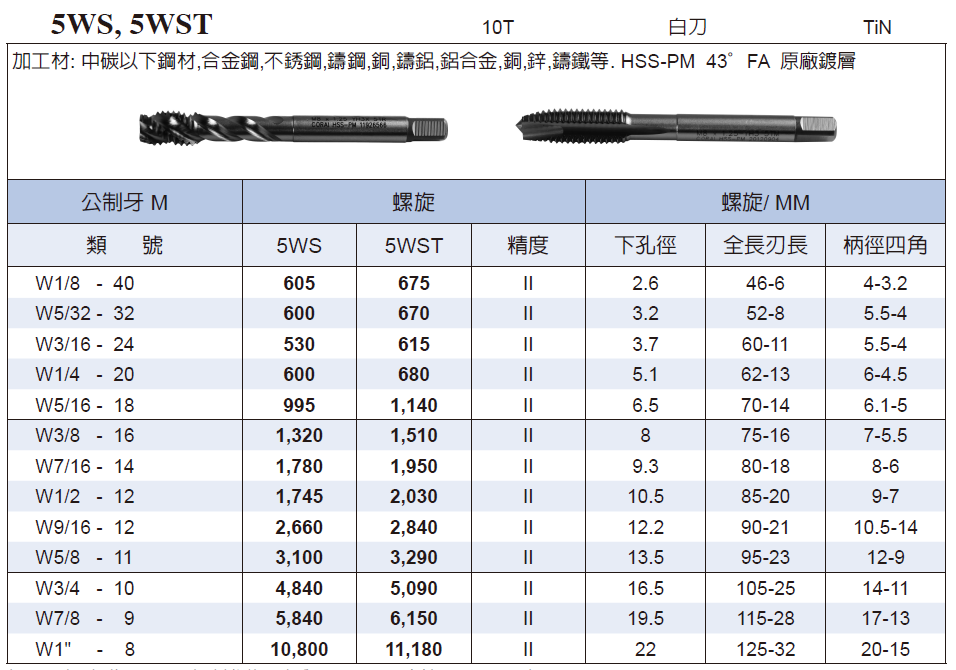

- Imperial Specification Dedicated Coverage: Available in thread diameter 1–9 inches and pitch 8–40 TPI across 26 specifications — recommended as the dedicated tapping stock tool for applications requiring imperial specification workpieces, imported equipment maintenance, or imperial standard component manufacturing.
【Machining Applications & Uses】
- Primary Use: Imperial through-hole thread tapping, imported equipment component imperial thread repair, and NC machining center imperial automatic tapping.
- Recommended Work Materials:
- P-Class (Carbon Steel / Alloy Steel): Structural steel, carbon steel, and alloy steel — recommended for hardness below HRC35, where HSS-PM combined with TiN coating delivers stable and long-lasting imperial tapping performance.
- M-Class (Stainless Steel): SUS304, SUS316, and other high-toughness stainless steel — the HSS-PM powder metallurgy characteristics effectively address the challenges of work hardening and continuous chip formation, recommended for use with appropriate cutting fluid.
- K-Class (Cast Iron): Cast iron and gray iron — the TiN coating provides outstanding wear-resistant tapping tool life.
- N-Class (Non-Ferrous Metals): Aluminum alloys, pure copper, brass, and other non-ferrous metals — the spiral point design ensures smooth chip evacuation, preventing built-up edge from affecting imperial thread quality.
