ANVCD5AMPShort Thread Long Chip Spiral Point Tap Metric 5AMP已售出0個The 5AMP is a French-brand spiral point tap made of HSS-EX, ideal for tapping through holes — its spiral point pushes chips forward for fast, clean threading. Available in 68 sizes (thread dia 1.2~30, pitch 0.25~3.5, thread length 3.6~90mm, overall length 32~135mm, shank dia 3~23mm). A TiN coating adds a hard golden film for better wear and anti-galling, extending tool life. Suitable for machining non-ferrous metals like aluminium and copper, workpiece hardness up to HRC30. French brand, consistent quality.
商品分類
Cutting ToolsTapSpiral Point Tap (for Through Holes)
Short Thread Long Chip Spiral Point Tap Metric 5AMP
標籤
Copper & Aluminum Tap
Product Overview: HSS Short Thread Long-Chip Material Spiral Point Tap Metric – 5AMP Series
【Product Features & Why We Recommend It】
- French Brand Professional Quality: Originating from a professional French cutting tool brand with rigorous quality control — recommended for users with high demands on aluminum alloy, copper, and other non-ferrous metal metric thread tapping accuracy and tool consistency.
- Short Thread Long-Chip Material Dedicated Geometry: Features a spiral point tap geometry specifically optimized for the cutting characteristics of aluminum alloys, copper, and other non-ferrous metals that produce long, continuous, difficult-to-break chips — recommended for applications prone to built-up edge, chip wrapping, and adhesion issues during non-ferrous metal tapping, effectively improving tapping smoothness and thread quality.
- HSS-EX Ultra-High Performance Substrate: Manufactured with HSS-EX ultra-high performance high-speed steel, delivering superior hardness, toughness, and wear resistance compared to standard HSS and HSS-CO — recommended for long-duration stable tapping of non-ferrous metals such as aluminum alloys and copper materials.
- TiN Coating Enhancement: The surface is treated with TiN coating, providing good wear resistance — combined with the short thread geometry design to effectively suppress built-up edge adhesion during non-ferrous metal machining, recommended for continuous tapping of aluminum alloys and copper materials to extend tool service life.
- Spiral Point Through-Hole Design: Features a spiral point tap design that pushes chips forward and out of the hole — recommended for non-ferrous metal through-hole tapping operations, effectively managing long chip evacuation to ensure smooth tapping and thread accuracy.

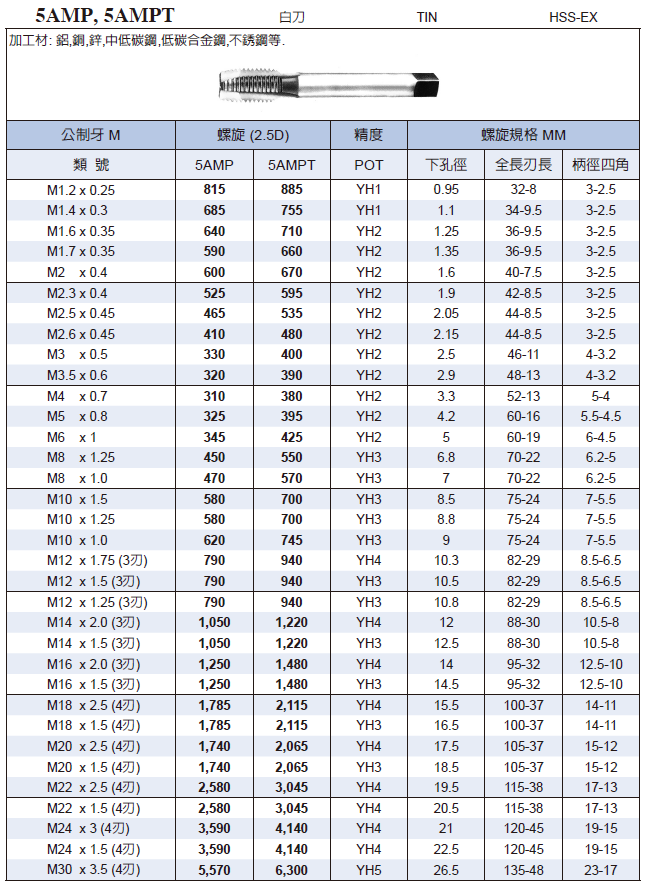

- 68 Metric Specification Wide Coverage: Available in thread diameter 1.2–30mm and pitch 0.25–3.5mm across 68 specifications — recommended as the dedicated high-performance stock tool for non-ferrous metal metric through-hole tapping.
【Machining Applications & Uses】
- Primary Use: Aluminum alloy and copper metric through-hole thread tapping, non-ferrous metal structural component precision thread forming, and NC machining center non-ferrous metal automatic tapping.
- Recommended Work Materials:
- N-Class (Non-Ferrous Metals): Aluminum alloys (6061, 7075, 5-series aluminum), pure copper, brass, bronze, and other non-ferrous metals — the dedicated core recommended application scenario for this series, where the short thread long-chip material dedicated geometry combined with HSS-EX substrate and TiN coating effectively addresses the long chip management, built-up edge, and adhesion challenges during non-ferrous metal tapping, recommended for use with appropriate cutting fluid to ensure thread quality.
