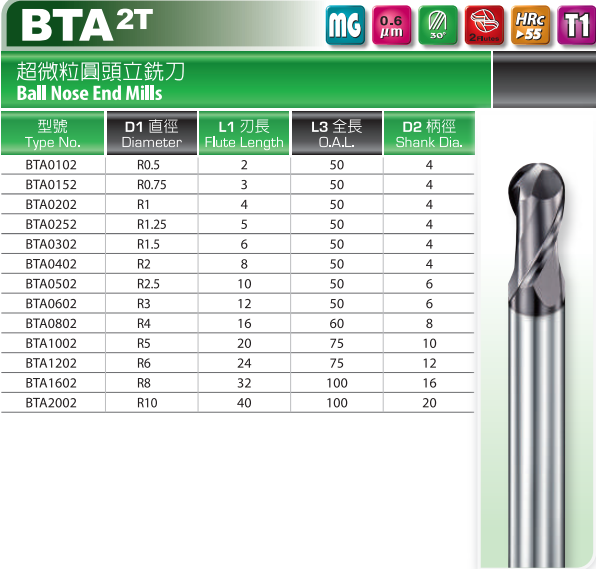

AVFDHBTASolid Carbide Ball Nose End Mill BTA已售出0個Solid Carbide Ball Nose End Mill BTA is a Taiwan-made solid carbide ball nose end mill, ideal for 3D contours, mold cavities, curved surfaces and finishing. Available in ball radius R 0.5~10mm, flute length 2~40mm, overall length 50~100mm, 2-4 flutes. T1-coated edge for wear/heat resistance and longer tool life. Machines carbon & alloy steel, cast iron, up to HRC55. An ideal choice for machining hardened or high-hardness mold steel.
規格
請選擇規格 (可輸入關鍵字快速搜尋)
數量
最低購買數量：1
$ 421 ~ $ 6,947
商品分類
Cutting ToolsEnd MillsBall Nose End Mill
Solid Carbide Ball Nose End Mill BTA
標籤

[Product Name] DHF Solid Carbide Ball Nose End Mill - BTA Series (Part No: AVFDHBTA)

[Features & Recommended Reasons]

  • Standard R0.5 Specification: Features a precision R0.5 ball nose, recommended for high-detail 3D contouring, micro-groove milling, and profile machining in mold components.

  • Wear-Resistant T1 Coating: Equipped with the T1 coating. We recommend this for users seeking consistent performance, as it effectively reduces edge wear during long-cycle steel and iron milling.

  • Tough MG0.6 Carbide: Built with MG0.6 carbide substrate, offering practical impact resistance. It is recommended for materials up to HRC55, providing stability even in varied machining conditions.

  • Balanced 30° Helix Angle: Features a reliable 30-degree helix, recommended for maintaining a balance between smooth chip evacuation and cutting edge strength during complex surface operations.

[Applications]

  • Primary Use: 3D surface finishing, copy milling for mold parts, and circular groove milling.

  • Recommended Materials: Carbon steels (P-class) and high-hardness Cast Irons (K-class).
