AVFDHBTC_LSolid Carbide Ball Nose End Mill for Aluminum Long Shank BTC已售出0個Solid Carbide Ball Nose End Mill for Aluminum Long Shank BTC is a Taiwan-made solid carbide ball nose end mill, ideal for 3D contours, mold cavities, curved surfaces and finishing. Available in ball radius R 2~6mm, flute length 8~24mm, overall length 75~150mm, 2 flutes. Machines aluminum/copper & non-ferrous, up to HRC50. The long-shank design offers extended reach for deep cavities and slots.
商品分類
Cutting ToolsEnd MillsBall Nose End Mill
Solid Carbide Ball Nose End Mill for Aluminum Long Shank BTC
標籤
Aluminum End Mill
Product Overview: Tungsten Carbide Aluminum-Cut Ball Nose End Mill Long Shank – BTC Series
【Product Features & Why We Recommend It】
- Taiwan Brand Professional Manufacturing: Originating from a professional Taiwanese cutting tool brand with strict quality control — recommended for users requiring deep-cavity precision machining of aluminum alloys, copper, and other non-ferrous metals with special demands on tool reach and chip evacuation performance.
- Aluminum-Specific Geometry Design: Optimized for the cutting characteristics of aluminum alloys, copper, and other non-ferrous metals — recommended to minimize built-up edge (BUE) adhesion issues while maintaining excellent workpiece surface finish quality even under high-speed cutting conditions.
- Long Shank Deep-Cavity Solution: Features a specially extended long shank design providing greater reach than standard models — recommended for deep cavities, deep slots, and complex workpieces with significant height differentials, effectively resolving the limitations of standard shank length.
- Ball Nose Precision Contouring: The ball nose design accurately conforms to 3D curved surface profiles and cavity arc floors — recommended for deep-layer curved surface finish machining and high-precision contour forming to ensure superior surface quality on non-ferrous metal workpieces.

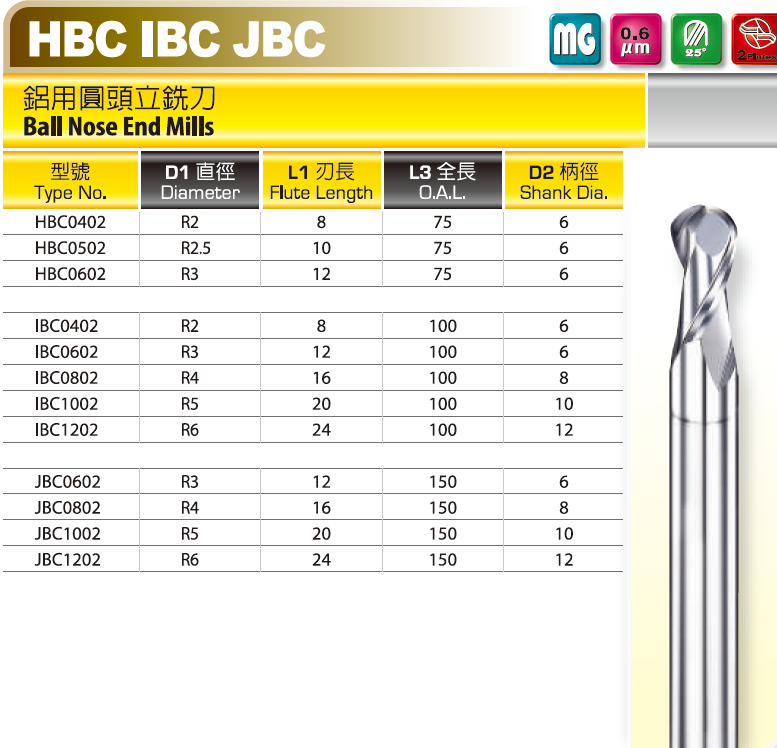

- Streamlined Specification Range: Available in ball nose radius R2–6mm, flute length 8–24mm, overall length 75–150mm, and 2-flute configuration — recommended for flexible selection based on feature depth and workpiece material.
【Machining Applications & Uses】
- Primary Use: Aluminum alloy deep-cavity / deep-slot machining, copper material 3D curved surface finish machining, non-ferrous metal cavity arc floor profiling, and height-differential workpiece contour milling.
- Recommended Work Materials:
- N-Class (Non-Ferrous Metals): Aluminum alloys (6061, 7075, 5-series aluminum), pure copper, brass, and bronze — recommended for hardness within HRC50, representing the ideal application scenario for this series.
