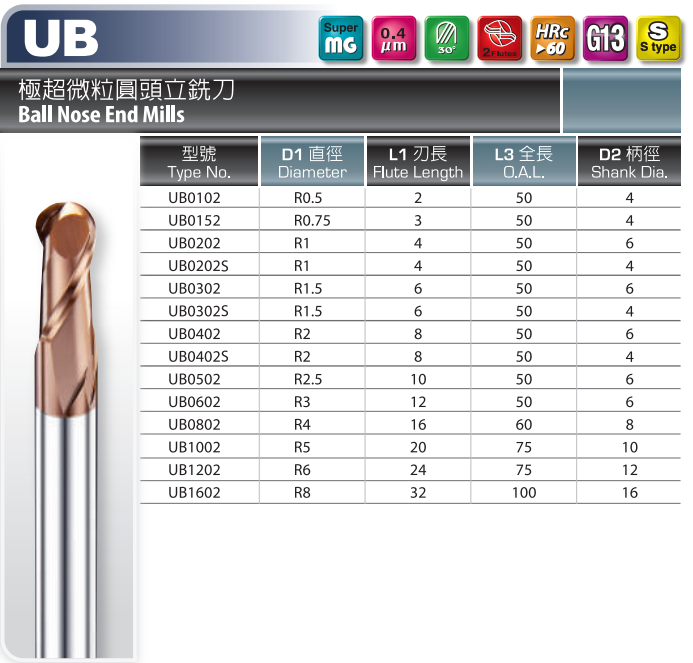

AVFDHUBSolid Carbide Ball Nose End Mill for High Hardness UB已售出2個Solid Carbide Ball Nose End Mill for High Hardness UB is a Taiwan-made solid carbide ball nose end mill, ideal for 3D contours, mold cavities, curved surfaces and finishing. Available in ball radius R 0.5~8mm, flute length 2~32mm, overall length 50~100mm, 2 flutes. G13-coated edge for wear/heat resistance and longer tool life. Machines hardened steel, cast iron, up to HRC60. An ideal choice for machining hardened or high-hardness mold steel.
規格
請選擇規格 (可輸入關鍵字快速搜尋)
數量
最低購買數量：1
$ 600 ~ $ 5,053
商品分類
Cutting ToolsEnd MillsBall Nose End Mill
Solid Carbide Ball Nose End Mill for High Hardness UB
標籤

[Product Name] DHF Solid Carbide Ball Nose End Mill - UB Series (Code: AVFDHUB)

[Features & Recommended Reasons]

  • Specialized for High Hardness: Utilizing SMG0.4 ultra-fine grain carbide substrate, this tool is recommended for machining materials up to HRC60. It provides dependable durability for hardened and heat-treated steels.

  • G13 Advanced Coating: The G13 coating is highly recommended for precision mold work requiring long machining cycles, effectively reducing edge wear and maintaining consistent surface quality.

  • Optimized Ball Nose Geometry: Featuring a 30-degree helix angle, this ball nose mill is a solid choice for 3D contouring, 5-axis profiling, and copy milling. It offers stable cutting performance on complex mold surfaces.

  • High Wear Resistance: We recommend the UB series for H-class (Hardened Steel) and K-class (Cast Iron) materials where long-term tool life is a priority to minimize downtime.

[Applications]

  • Primary Use: Mold surface finishing, circular groove milling, and 3D profiling.

  • Recommended Materials: Hardened steels (HRC48-68), pre-hardened steels, and high-hardness cast irons.
