AVRDHULRSolid Carbide Corner Radius End Mill for High Hardness Long Shank UER已售出0個Solid Carbide Corner Radius End Mill for High Hardness Long Shank UER is a Taiwan-made solid carbide corner radius end mill, balances floor strength and corner radius, ideal for mold roughing/finishing and hardened materials. Available in diameter 6~16mm, corner radius 0.5~2mm, flute length 16~45mm, overall length 75~150mm, 4 flutes. G12-coated edge for wear/heat resistance and longer tool life. Machines hardened steel, cast iron, up to HRC60. The long-shank design offers extended reach for deep cavities and slots. An ideal choice for machining hardened or high-hardness mold steel.
商品分類
Cutting ToolsEnd MillsCorner Radius End Mill
Solid Carbide Corner Radius End Mill for High Hardness Long Shank UER
標籤
Product Overview: Tungsten Carbide High-Hardness Corner Radius End Mill – UER Series
【Product Features & Why We Recommend It】
- Taiwan Brand Quality Manufacturing: Originating from a professional Taiwanese cutting tool brand with strict quality control — recommended for mold machining users who demand high consistency and stable machining performance.
- G12 Coating Enhancement: The cutting edges are treated with G12 coating, providing outstanding wear resistance and heat resistance — recommended for extended continuous machining of high-hardness materials.
- Corner Radius for Bottom Edge Integrity: The ball nose design reinforces both the bottom face and corner strength simultaneously — recommended for both roughing and finishing stages to reduce chipping risk and ensure superior workpiece surface finish.

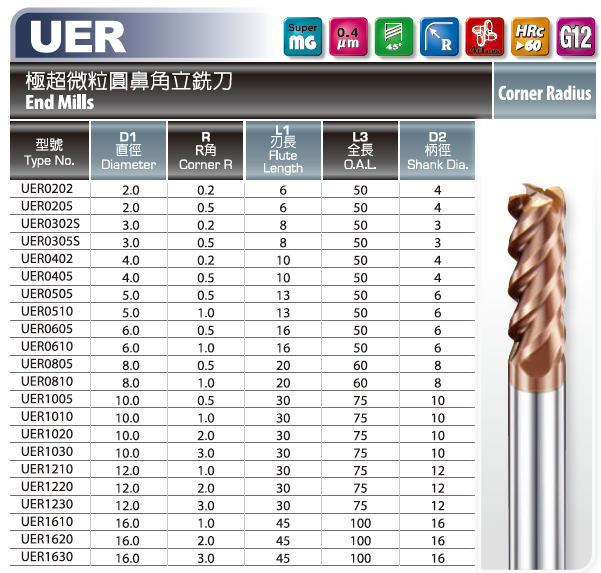

- Wide Specification Range: Available in diameter 2–16mm, corner radius 0.2–3mm, flute length 6–45mm, overall length 50–100mm, and 4-flute configuration — recommended for flexible selection based on mold depth and workpiece hardness.
【Machining Applications & Uses】
- Primary Use: Mold roughing and finish machining, high-hardness material milling, and corner radius profile forming.
- Recommended Work Materials:
- H-Class (Hardened Steel): Quenched steel, heat-treated steel, and high-hardness mold steel (recommended hardness HRC48–60) — the ideal application scenario for this series.
- K-Class (Cast Iron): For high-hardness cast iron and gray iron, the G12 coating delivers stable and consistent wear resistance performance.
