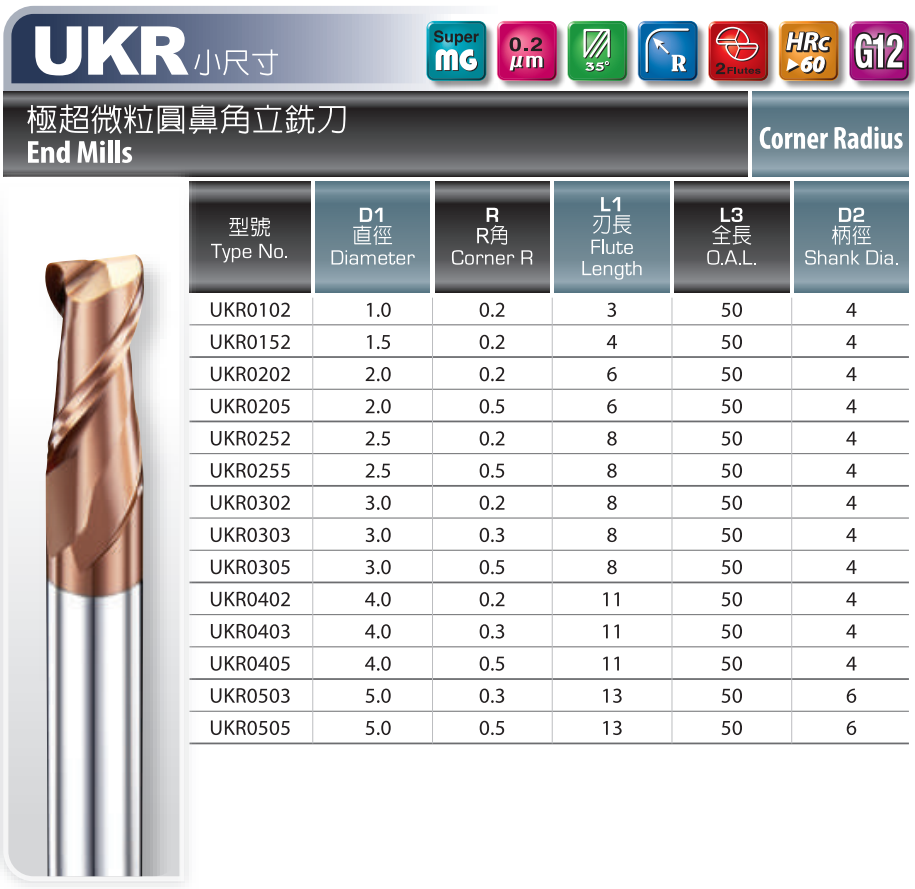

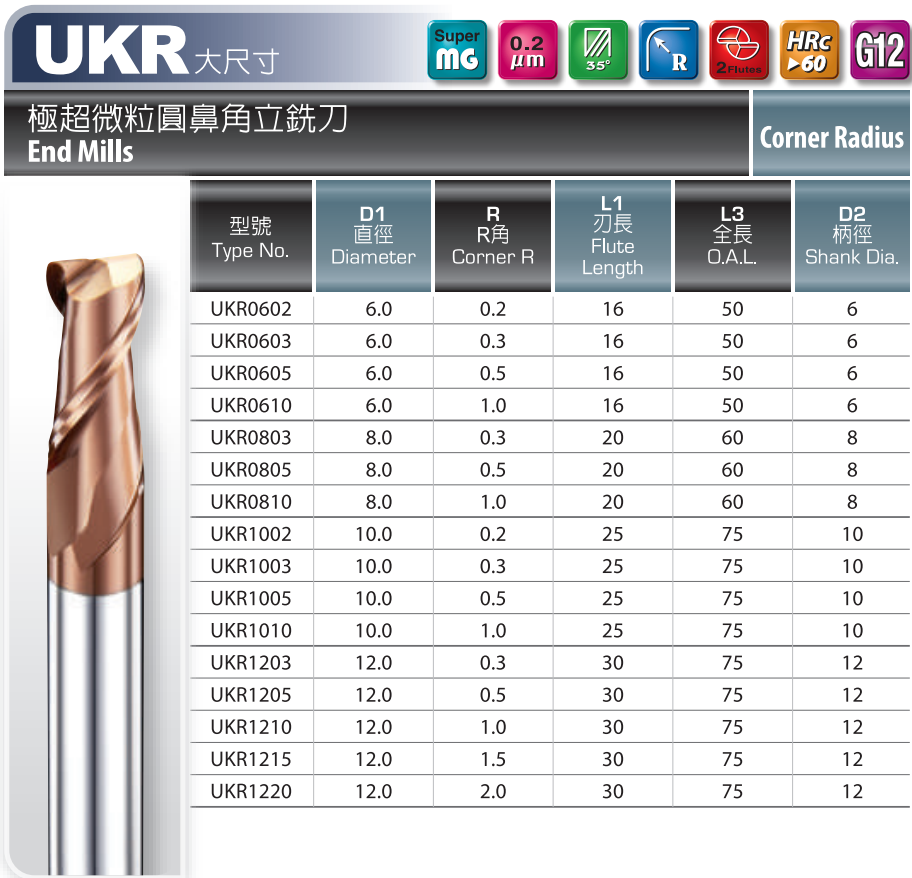

AVRDHUKRSolid Carbide Corner Radius End Mill for High Hardness UKR已售出0個Solid Carbide Corner Radius End Mill for High Hardness UKR is a Taiwan-made solid carbide corner radius end mill, balances floor strength and corner radius, ideal for mold roughing/finishing and hardened materials. Available in diameter 1~12mm, corner radius 0.2~2mm, flute length 3~30mm, overall length 50~75mm, 2 flutes. G12-coated edge for wear/heat resistance and longer tool life. Machines hardened steel, cast iron, up to HRC60. An ideal choice for machining hardened or high-hardness mold steel.
商品分類
Cutting ToolsEnd MillsCorner Radius End Mill
Solid Carbide Corner Radius End Mill for High Hardness UKR
標籤
Product Overview: Tungsten Carbide High-Hardness Corner Radius End Mill – UKR Series
【Key Product Highlights】
- Premium SMG0.2 Substrate: Utilizes the finer-grade SMG0.2 ultra-fine grain tungsten carbide — more refined than standard grades — delivering extreme hardness and wear resistance to effectively combat cutting edge deterioration during high-hardness machining.
- Corner Radius (R-Nose) Reinforcement: The unique R-nose geometry significantly reduces the risk of corner chipping during machining, while notably improving tool durability in flat surface cutting and curved surface semi-rough machining.
- Optimized Cutting Geometry: The 35° helix angle balances cutting forces and rigidity, ensuring consistent precision when machining high-hardness materials up to HRC60.
- Ultimate Wear Resistance: Engineered for extended continuous cutting, maintaining high surface finish quality while prolonging tool change intervals.
【Machining Applications & Uses】
- Primary Use: R-nose profiling, flat surface milling, and pre-finish semi-rough machining of high-hardness molds.
- Machining Performance: Effectively prevents chipping, making it particularly suitable for fine-detail forming of precision mold components.
【Recommended Work Materials】
- H-Class Materials (Hardened Steel): Heat-treated steel, pre-hardened steel, SKD11, SKD61, and similar grades (recommended hardness HRC48–68).
- K-Class Materials (Cast Iron): Delivers excellent chip evacuation and wear resistance for high-hardness gray iron and ductile cast iron that generate powdery chips.
