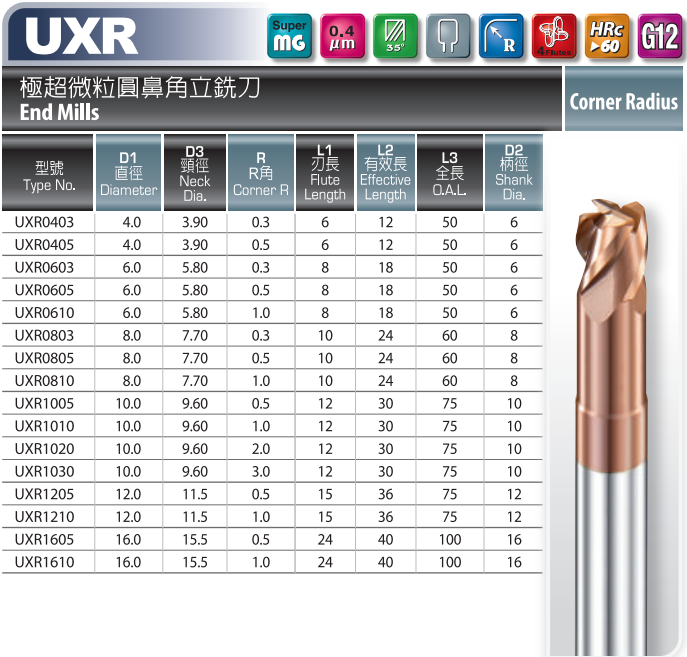

AVRDHUXRSolid Carbide Corner Radius End Mill for High Hardness UXR已售出0個Solid Carbide Corner Radius End Mill for High Hardness UXR is a Taiwan-made solid carbide corner radius end mill, balances floor strength and corner radius, ideal for mold roughing/finishing and hardened materials. Available in diameter 4~16mm, corner radius 0.3~3mm, flute length 6~24mm, effective length 12~40mm, overall length 50~100mm, 4 flutes. G12-coated edge for wear/heat resistance and longer tool life. Machines hardened steel, cast iron, up to HRC60. An ideal choice for machining hardened or high-hardness mold steel.
規格
請選擇規格 (可輸入關鍵字快速搜尋)
數量
最低購買數量：1
$ 880 ~ $ 5,474
商品分類
Cutting ToolsEnd MillsCorner Radius End Mill
Solid Carbide Corner Radius End Mill for High Hardness UXR
標籤
Heat-Treated Machining

【English Description】

Product Name: Solid Carbide Taper Neck Corner Radius End Mill - UXR Series

  • Taper Neck for Deep Reach: Specifically designed with a Taper Neck and Small Diameter for deep grooves. Recommended for mold cavities where interference is a concern, offering better rigidity than standard long-flute tools.

  • HRC60 Hardness Support: Made from SMG0.4 ultra-fine grain carbide. We recommend this for materials up to HRC60, providing dependable wear resistance when machining hardened and heat-treated steels.

  • Corner Radius Protection: The R-angle design strengthens the tool tip. Recommended for flat surface milling to prevent corner chipping, ensuring a stable performance during mid-roughing of curved surfaces.

  • Balanced 35° Helix: Features a reliable 35-degree helix angle, recommended for maintaining a balance between smooth chip evacuation and cutting edge durability in various machining paths.
