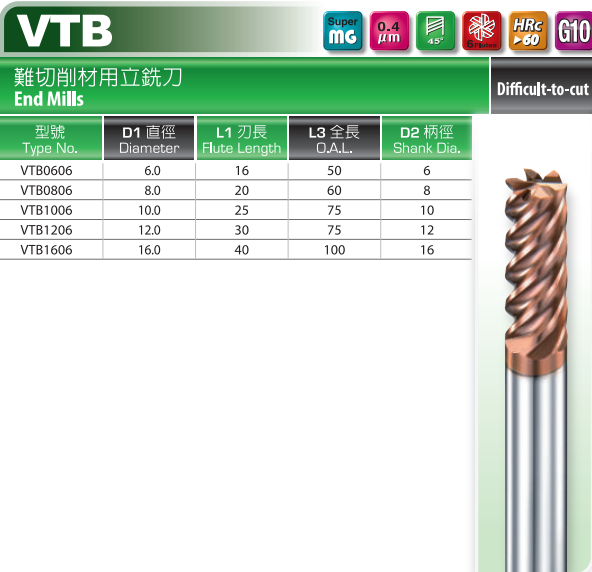

AVQDHVTBSolid Carbide End Mill for Difficult to cut materials VTB已售出0個Solid Carbide End Mill for Difficult to cut materials VTB is a Taiwan-made solid carbide end mill, suitable for general milling, profiling and slotting. Available in diameter 6~16mm, flute length 16~40mm, overall length 50~100mm, 6 flutes. G10-coated edge for wear/heat resistance and longer tool life. Machines stainless steel, titanium & superalloys, up to HRC60. An ideal choice for machining hardened or high-hardness mold steel.
規格
請選擇規格 (可輸入關鍵字快速搜尋)
數量
最低購買數量：1
$ 884 ~ $ 6,211
商品分類
Cutting ToolsEnd MillsFlat End Mill
Solid Carbide End Mill for Difficult to cut materials VTB
標籤

【Product Name】The VTB Series End Mill (Product Code: AVQDHVTB) is a professional tool developed for high-toughness materials, primarily solving issues like tool sticking, heat accumulation, and poor chip breaking in stainless steel and titanium alloy machining.

【Key Features & Benefits】

  • Tailored for Tough Materials: Optimized for ISO M (Stainless Steel) and ISO S (Superalloys/Titanium). It maintains consistent performance even in workpieces up to HRC60 with high tensile strength.

  • Optimized Chip Evacuation: The 45-degree helix angle design ensures rapid removal of tough, stringy chips, reducing cutting resistance and vibration during operation.

  • G10 Coating Technology: Features G10 coating and SMG0.4 micro-grain carbide to enhance anti-sticking properties, preventing material welding on the cutting edge.

  • Practical Reliability: A dependable choice for profiling and slotting in aerospace or medical component manufacturing involving 64 Titanium or Inconel.

【Applications & Usage】

  • Primary Applications: Ideal for profiling, slotting, and side milling of precision parts.

  • Recommended Materials:

    • ISO M (Stainless Steel, SUS304, SUS316): Tackles materials with high toughness and difficult chip breaking.

    • ISO S (Titanium Alloys, Nickel-based Alloys, Stellite 6): Specifically for hard, tough, and sticky materials.
