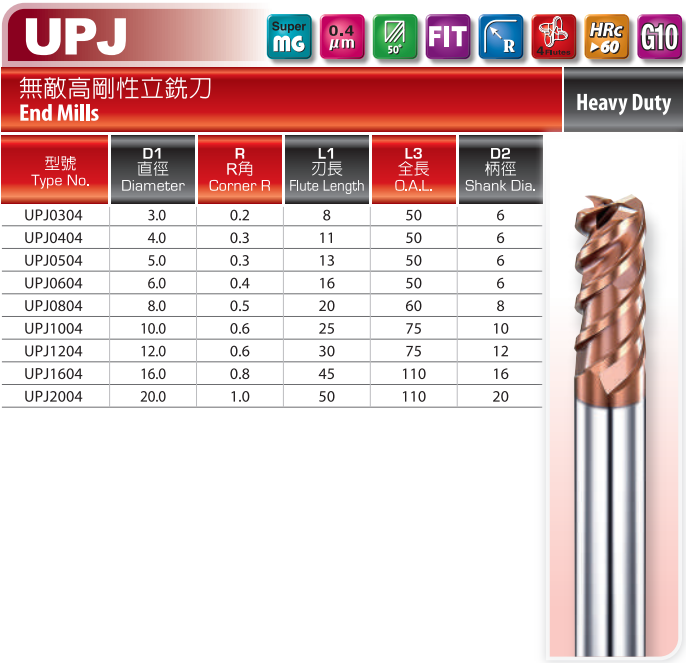

AVRDHUPJSolid Carbide Heavy Duty End Mill UPJ已售出0個Solid Carbide Heavy Duty End Mill UPJ is a Taiwan-made solid carbide corner radius end mill, balances floor strength and corner radius, ideal for mold roughing/finishing and hardened materials. Available in diameter 3~20mm, corner radius 0.2~1mm, flute length 8~50mm, overall length 50~110mm, 4 flutes. G10-coated edge for wear/heat resistance and longer tool life. Machines stainless steel, up to HRC60. An ideal choice for machining hardened or high-hardness mold steel.
規格
請選擇規格 (可輸入關鍵字快速搜尋)
數量
最低購買數量：1
$ 1,263 ~ $ 10,526
商品分類
Cutting ToolsEnd MillsCorner Radius End Mill
Solid Carbide Heavy Duty End Mill UPJ
標籤

[Product Name] High Rigidity Solid Carbide End Mill - UPJ Series

[Features & Recommended Reasons]

  • Powerful 50° Helix Angle: Specifically recommended for "Heavy-Duty Cutting" operations. The large 50-degree helix provides a superior shearing action that reduces cutting resistance and effectively dissipates heat during high-speed machining.

  • High Rigidity Construction: We recommend this tool for high-feed rate applications. The reinforced core design offers the necessary rigidity to handle heavy loads while maintaining precision and reducing tool deflection.

  • Corner Radius Protection: Features a rounded tip (R-angle) to distribute cutting forces. This design is highly recommended for roughing to prevent corner chipping, ensuring longer tool life even in challenging materials up to HRC60.

  • Reliable SMG0.4 Substrate: Built with ultra-fine grain carbide. It is recommended for those who need a balance of toughness and hardness when dealing with heat-treated or stainless steels.

[Applications]

  • Primary Use: High-efficiency roughing of stainless steel parts, heavy-duty profile milling, and corner profiling.

  • Recommended Materials: M-class Stainless Steels (SUS304, SUS316, SUS420), known for their high toughness and chip-management challenges.
