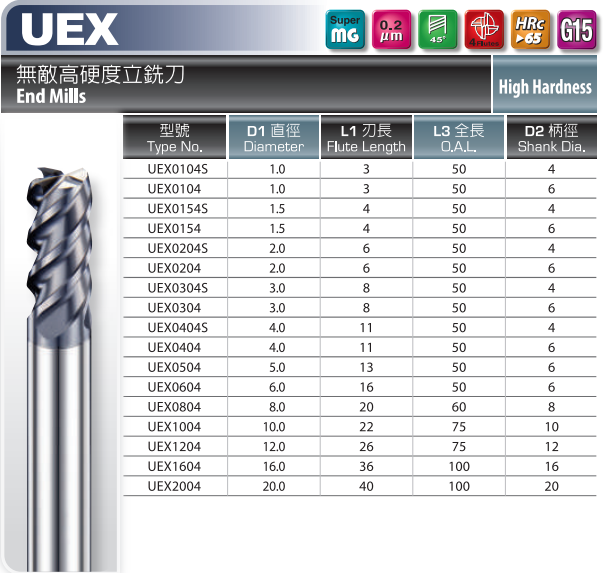

AVQDHUEXSolid Carbide High Hardness End Mill UEX已售出0個Solid Carbide High Hardness End Mill UEX is a Taiwan-made solid carbide end mill, suitable for general milling, profiling and slotting. Available in diameter 1~20mm, flute length 3~40mm, overall length 50~100mm, 4 flutes. G15-coated edge for wear/heat resistance and longer tool life. Machines hardened steel, cast iron, up to HRC65. An ideal choice for machining hardened or high-hardness mold steel.
規格
請選擇規格 (可輸入關鍵字快速搜尋)
數量
最低購買數量：1
$ 758 ~ $ 10,526
商品分類
Cutting ToolsEnd MillsFlat End Mill
Solid Carbide High Hardness End Mill UEX
標籤
High Hardness End Mill
Heat-Treated Machining

[Product Name] DHF Solid Carbide End Mill for Ultra-High Hardness - UEX Series (Code: AVQDHUEX)

[Features & Recommended Reasons]

  • Engineered for Extreme Hardness: Utilizing SMG0.2 ultra-fine grain carbide. We recommend this for materials up to HRC65, as it maintains superior edge stability and impact resistance during extreme cutting conditions.

  • Optimized 45° Helix Angle: The high helix angle ensures a sharp shearing action. Highly recommended for "High-Speed Machining," effectively reducing cutting resistance and heat buildup for a superior surface finish.

  • High-End G15 Coating: Equipped with the advanced G15 coating. Recommended for precision mold making that requires exceptional thermal stability and long tool life under high-hardness milling.

  • Rigid & Stable Construction: Recommended for profiling, slotting, and side milling. Its reinforced core handles the demands of high-speed cutting on heat-treated steels with minimal deflection.

[Applications]

  • Primary Use: High-speed machining of hardened materials, profiling, precision slotting, and side finishing.

  • Recommended Materials: Hardened steels (HRC48-68), pre-hardened steels, and high-hardness Cast Irons (K-class).
