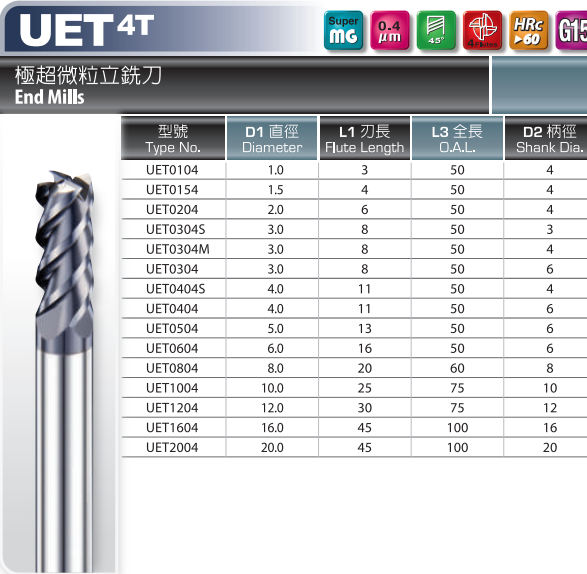

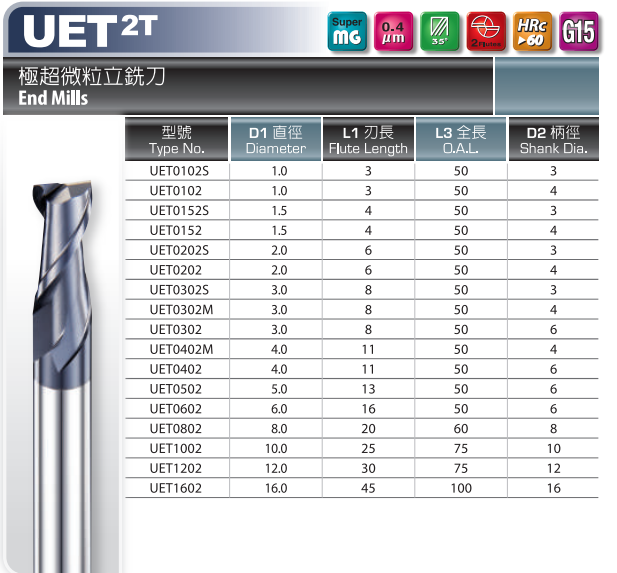

AVQDHUETSolid Carbide High Speed & High Hardness End Mill UET已售出0個Solid Carbide High Speed & High Hardness End Mill UET is a Taiwan-made solid carbide end mill, suitable for general milling, profiling and slotting. Available in diameter 1~20mm, flute length 3~45mm, overall length 50~100mm, 2-4 flutes. G15-coated edge for wear/heat resistance and longer tool life. Machines hardened steel, cast iron, up to HRC60. An ideal choice for machining hardened or high-hardness mold steel.
規格
請選擇規格 (可輸入關鍵字快速搜尋)
數量
最低購買數量：1
$ 547 ~ $ 7,158
商品分類
Cutting ToolsEnd MillsFlat End Mill
Solid Carbide High Speed & High Hardness End Mill UET
標籤
High Hardness End Mill
Heat-Treated Machining

【Product Name】The UET Series End Mill (Product Code: AVQDHUET) is a practical tool developed specifically for hard materials, primarily addressing the issues of premature tool wear and chipping in mold and component processing.

【Key Features & Benefits】

  • Designed for Hardened Materials: Recommended for processing hardened steel, pre-hardened steel, and heat-treated steel between HRC48~68. It maintains stable cutting performance even under HRC60 conditions.

  • Material Versatility: Beyond steel, it delivers excellent cutting results on ISO K materials (Cast Iron and Pig Iron), which typically produce powdery chips during machining.

  • Balanced Helix Angle: The 35° helix angle design strikes a perfect balance between side milling and slotting, reducing vibration while maintaining high machining accuracy.

  • Coating Technology: The G15 coating enhances thermal resistance, making it ideal for high-speed machining or dry cutting environments, effectively extending tool life cycles.

【Applications & Usage】

  • Primary Applications: Commonly used for profiling, slotting, and side milling in precision parts and mold manufacturing.

  • Recommended Materials: ISO H (Heat-treated/Pre-hardened steel) and ISO K (Cast Iron/Pig Iron). Specially suited for high-hardness materials that generate powdery debris.
