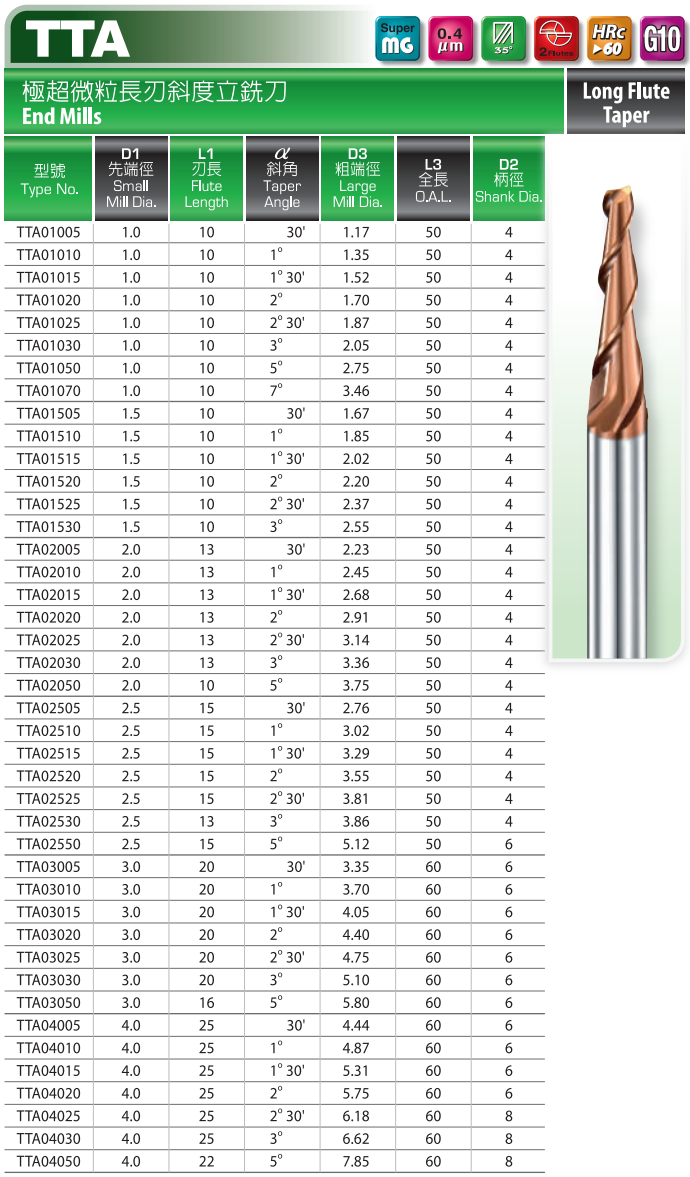

AVVDHTTASolid Carbide Long Flute Taper End Mill TTA已售出0個Solid Carbide Long Flute Taper End Mill TTA is a Taiwan-made solid carbide tapered end mill, ideal for draft angles, tapered side walls and engraving. Available in diameter 1~4mm, angle 0.5~7°, flute length 10~25mm, overall length 50~60mm, 2 flutes. G10-coated edge for wear/heat resistance and longer tool life. Machines carbon & alloy steel, stainless steel, up to HRC60. An ideal choice for machining hardened or high-hardness mold steel.
商品分類
標籤
Surface Machining
Long Flute End Mill
Product Overview: Tungsten Carbide Long Flute Taper End Mill – TTA Series
【Core Technical Advantages】
- Long Flute Design: The extended flute length allows for completing deeper tapered cuts in a single pass, minimizing tool mark overlap and improving workpiece surface quality.
- Premium Coating & Material: Manufactured with SMG0.4 ultra-fine grain tungsten carbide substrate and G10 coating, providing exceptional heat resistance and extreme hardness capability (HRC60).
- High-Efficiency Chip Evacuation: Optimized 35° helix angle design maintains superior chip evacuation performance even during deep-layer cutting, reducing cutting resistance and built-up edge formation.
【Machining Applications & Uses】
- Primary Use: Developed specifically for deep-layer tapered surface machining and large-area draft angle cutting.
- Typical Scenario: Precision machining of concave draft angle surfaces in large molds or deep-cavity structures.
【Recommended Work Materials】
- P-Class Materials (Structural Steel / Carbon Steel / Alloy Steel): Delivers stable cutting performance for materials below HRC30.
- M-Class Materials (Stainless Steel): Handles high-toughness, difficult-to-chip materials such as SUS304 and SUS316, maintaining consistent cutting stability and extended tool life.
