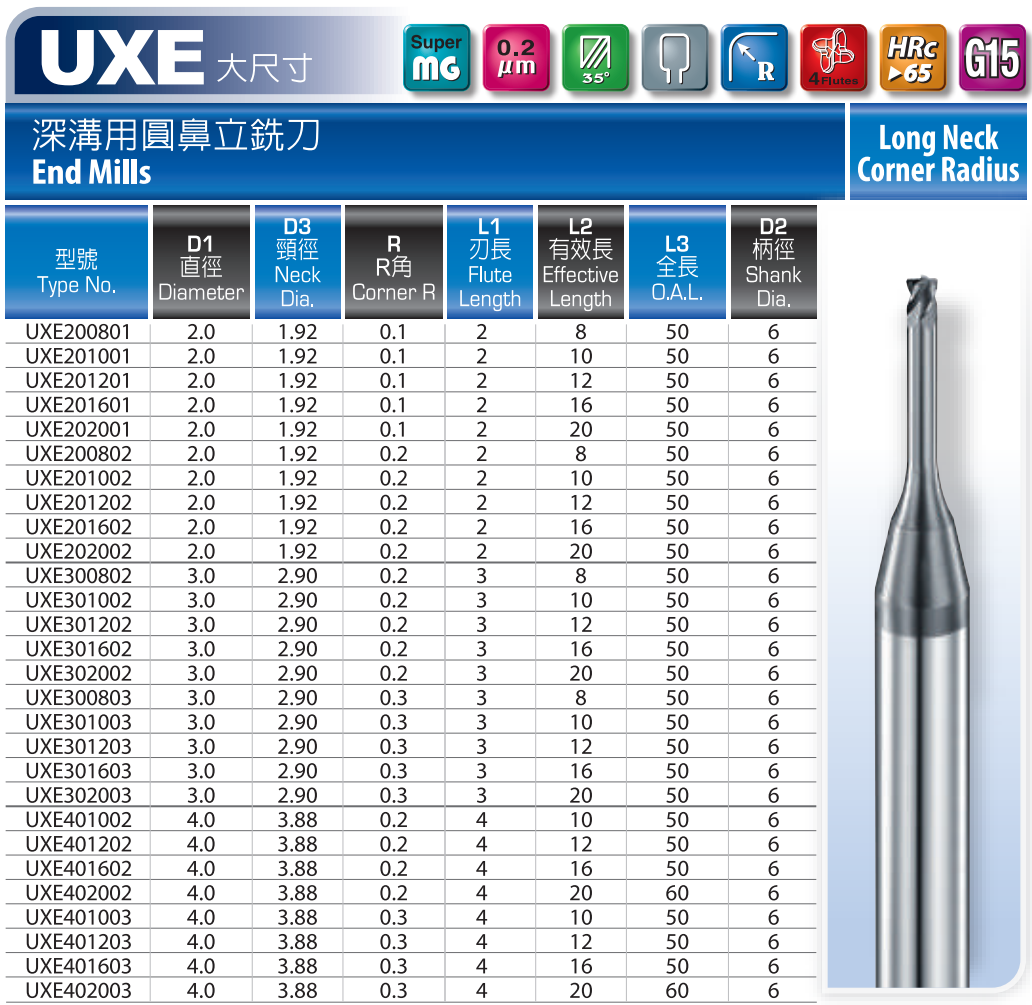

AVRDHUXESolid Carbide Long Neck Corner Radius End Mill UXE已售出0個Solid Carbide Long Neck Corner Radius End Mill UXE is a Taiwan-made solid carbide corner radius end mill, balances floor strength and corner radius, ideal for mold roughing/finishing and hardened materials. Available in diameter 1~4mm, corner radius 0.1~0.3mm, flute length 1.5~4mm, effective length 4~20mm, overall length 50~60mm, 4 flutes. G15-coated edge for wear/heat resistance and longer tool life. Machines carbon & alloy steel, hardened steel, stainless steel, cast iron, titanium & superalloys, up to HRC65. An ideal choice for machining hardened or high-hardness mold steel.
商品分類
標籤
Micro Diameter End Mill
Deep Groove End Mill
Product Overview: Tungsten Carbide Deep-Slot Corner Radius End Mill – UXE Series (Product No.: AVRDHUXE100401)
【Product Features & Why We Recommend It】
- Deep-Slot & Micro-Diameter Solution: Specifically designed with a deep-slot Neck-Down structure, recommended for narrow and deep-cavity areas in precision molds — effectively reducing interference risk during machining while providing better rigidity than standard long-flute tools.
- Ultra-Fine Grain SMG0.2 Substrate: Manufactured with high-quality SMG0.2 tungsten carbide substrate, enabling the tool to maintain excellent cutting stability and wear resistance even when facing extreme hardness materials up to HRC65.
- R-Nose Geometry Protection: The ball nose design effectively distributes cutting forces. Recommended when machining hardened steel or difficult-to-machine materials, utilizing the R-nose to prevent the brittle corner chipping associated with traditional sharp-corner tools, while improving workpiece surface finish quality.
- 35° Helix Angle Balance: The stable 35° helix angle achieves a well-balanced relationship between chip evacuation efficiency and cutting edge strength, recommended for complex cutting paths across a wide range of materials.
【Machining Applications】
- Primary Use: Micro-diameter deep-slot machining, precision mold R-nose profiling, and deep-layer clearance milling.
- Recommended Work Materials:
- H-Class (Hardened Steel): Recommended for heat-treated steel in the HRC48–68 range.
- S-Class (Superalloys / Titanium Alloys): Delivers stable performance for hard, tough, and adhesion-prone difficult-to-machine materials.
- M/P/K-Class: Versatile compatibility with stainless steel, alloy steel, and high-hardness cast iron.
