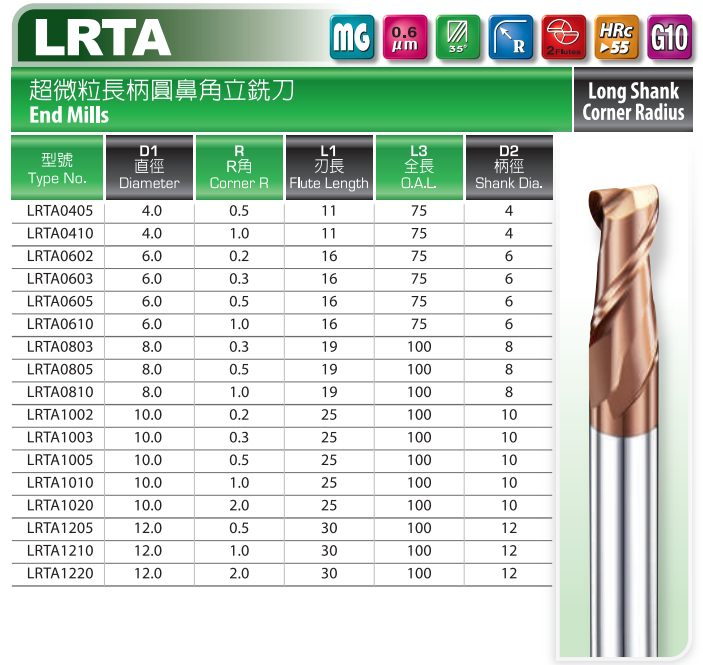

AVRDHLRTASolid Carbide Long Shank Corner Radius End Mill LRTA已售出2個Solid Carbide Long Shank Corner Radius End Mill LRTA is a Taiwan-made solid carbide corner radius end mill, balances floor strength and corner radius, ideal for mold roughing/finishing and hardened materials. Available in diameter 4~12mm, corner radius 0.2~3mm, flute length 11~30mm, overall length 75~100mm, 2 flutes. G10-coated edge for wear/heat resistance and longer tool life. Machines carbon & alloy steel, stainless steel, up to HRC55. An ideal choice for machining hardened or high-hardness mold steel.
規格
請選擇規格 (可輸入關鍵字快速搜尋)
數量
最低購買數量：1
$ 632 ~ $ 2,316
商品分類
Cutting ToolsEnd MillsCorner Radius End Mill
Solid Carbide Long Shank Corner Radius End Mill LRTA
標籤
Long Shank End Mill

[Product Name] Solid Carbide Long Shank Corner Radius End Mill - LRTA Series

[Features & Recommended Reasons]

  • Long Shank for Deep Reach: Specifically recommended for deep mold cavities or workpiece features with large height differences. The Long Shank design provides the necessary reach while maintaining stable performance in deep-seated machining areas.

  • Tough MG0.6 Carbide: Built with MG0.6 carbide substrate, which offers superior impact resistance. We recommend this for applications where vibration or impact is a concern, especially during extended-reach operations.

  • Corner Radius Protection: The R-angle geometry helps distribute cutting forces. It is highly recommended for flat surface milling to prevent corner chipping, ensuring a longer tool life compared to standard square end mills.

  • Stable 35° Helix Angle: The 35-degree helix provides a reliable balance between chip evacuation and edge strength. It is a solid choice for general-purpose machining of various steels and stainless steels.

[Applications]

  • Primary Use: Deep cavity milling, corner profiling, and roughing operations in deep mold areas.

  • Recommended Materials: Carbon steel, Alloy steel (under HRC30), and Stainless Steel (M-class).
