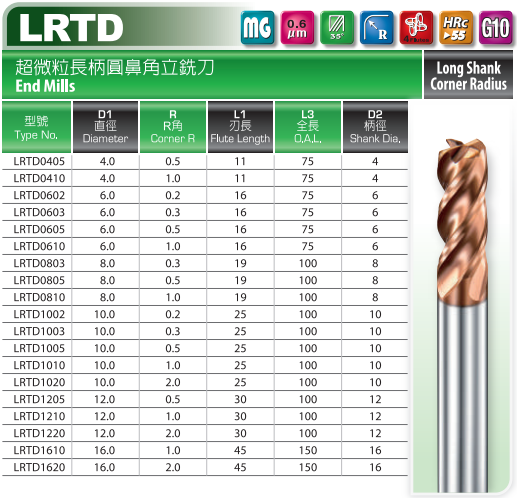

AVRDHLRTDSolid Carbide Long Shank Corner Radius End Mill LRTD已售出0個Solid Carbide Long Shank Corner Radius End Mill LRTD is a Taiwan-made solid carbide corner radius end mill, balances floor strength and corner radius, ideal for mold roughing/finishing and hardened materials. Available in diameter 4~16mm, corner radius 0.2~2mm, flute length 11~45mm, overall length 75~150mm, 4 flutes. G10-coated edge for wear/heat resistance and longer tool life. Machines carbon & alloy steel, stainless steel, up to HRC55. An ideal choice for machining hardened or high-hardness mold steel.
規格
請選擇規格 (可輸入關鍵字快速搜尋)
數量
最低購買數量：1
$ 632 ~ $ 6,947
商品分類
Cutting ToolsEnd MillsCorner Radius End Mill
Solid Carbide Long Shank Corner Radius End Mill LRTD
標籤
Long Shank End Mill

Product Name: Solid Carbide Long Shank Corner Radius End Mill - LRTD Series

  • Long Shank for Deep Reach: Specifically recommended for machining deep mold cavities or workpieces with height variations. The Long Shank design provides the necessary reach while avoiding interference issues.

  • Tough MG0.6 Carbide: Built with MG0.6 carbide substrate, which offers superior impact resistance. We recommend this for applications where vibration or cutting impact is a concern, providing better reliability in deep-seated areas.

  • Corner Radius Protection: The R-angle design strengthens the tool tip. Recommended for flat surface milling to prevent corner chipping, ensuring a more stable performance compared to standard square end mills.

  • Standard 35° Helix Angle: Features a reliable 35-degree helix angle, recommended for general-purpose machining of various steels and stainless steels, balancing chip evacuation and edge strength.
