AVFDHUMBSolid Carbide Micro Diameter Ball Nose End Mill UMB已售出0個Solid Carbide Micro Diameter Ball Nose End Mill UMB is a Taiwan-made solid carbide ball nose end mill, ideal for 3D contours, mold cavities, curved surfaces and finishing. Available in ball radius R 0.1~2mm, flute length 0.4~8mm, overall length 50mm, 2 flutes. G15-coated edge for wear/heat resistance and longer tool life. Machines carbon & alloy steel, hardened steel, stainless steel, cast iron, titanium & superalloys, up to HRC65. An ideal choice for machining hardened or high-hardness mold steel.
規格
請選擇規格 (可輸入關鍵字快速搜尋)
數量
最低購買數量：1
$ 632 ~ $ 1,600
商品分類
Cutting ToolsEnd MillsBall Nose End Mill

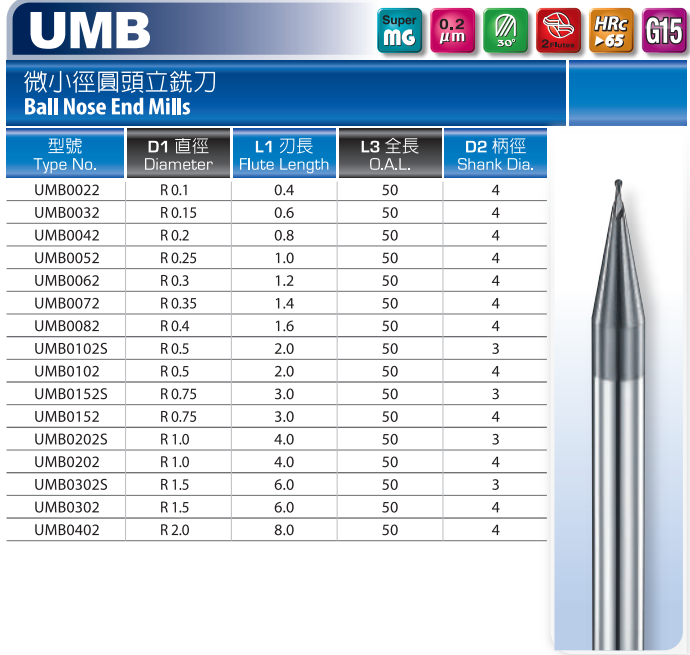

Solid Carbide Micro Diameter Ball Nose End Mill UMB
標籤

[Product Name] DHF Solid Carbide Micro Ball Nose End Mill - UMB Series (Code: AVFDHUMB)

[Features & Recommended Reasons]

  • Specialized Micro Machining: Designed specifically for Micro-diameter applications. We recommend this for precision electronics, medical components, and intricate mold cavity finishing.

  • Ultra-Fine SMG0.2 Substrate: Utilizing 0.2µm ultra-fine grain carbide. Recommended for extreme hardness up to HRC65, ensuring edge sharpness and excellent resistance to micro-chipping.

  • High-End G15 Coating: Featuring the advanced G15 coating, which is highly recommended for tasks requiring superior wear resistance and thermal stability, particularly when machining S-class alloys and hardened steels.

  • Versatile Material Compatibility: With a balanced 30-degree helix, this tool is recommended for stainless steel, titanium, and cast iron. It offers dependable tool life even when dealing with gummy or high-toughness materials.

[Applications]

  • Primary Use: Micro-groove milling, high-precision 3D profiling, and 5-axis micro-machining.

  • Recommended Materials: Hardened steels (up to HRC65), Stainless steels, Titanium alloys (S-class), and high-hardness Cast Iron.
