AVQDHLFTHSolid Carbide Micro Grain Long Flute End Mill LFTH已售出0個Solid Carbide Micro Grain Long Flute End Mill LFTH is a Taiwan-made solid carbide end mill, suitable for general milling, profiling and slotting. Available in diameter 2~20mm, flute length 12~60mm, overall length 50~150mm, 2-4 flutes. G10-coated edge for wear/heat resistance and longer tool life. Machines carbon & alloy steel, stainless steel, up to HRC55. An ideal choice for machining hardened or high-hardness mold steel.
規格
請選擇規格 (可輸入關鍵字快速搜尋)
數量
最低購買數量：1
$ 621 ~ $ 9,737
商品分類
Cutting ToolsEnd MillsFlat End Mill

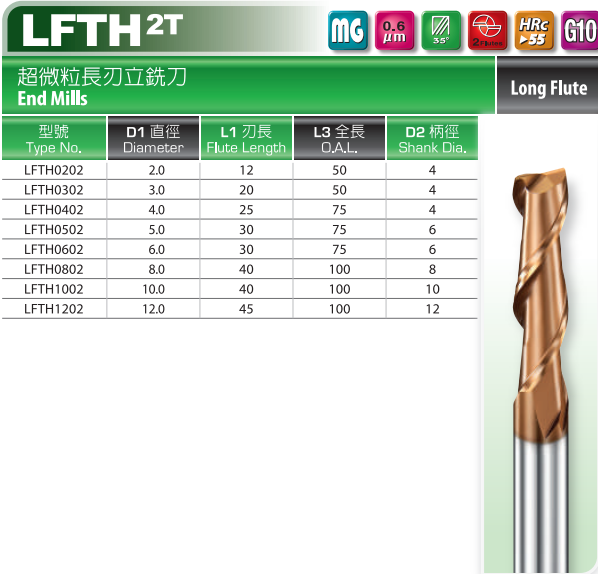

Solid Carbide Micro Grain Long Flute End Mill LFTH
標籤

【Product Name】The LFTH Series Long Flute End Mill (Product Code: AVQDHLFTH) is a versatile tool developed for applications requiring significant axial depths, primarily addressing the efficiency loss from multiple passes needed by standard length tools.

【Key Features & Benefits】

  • Extended Flute Advantage: Features a longer cutting edge than standard mills, enabling greater depth of cut in a single pass. This significantly boosts production efficiency and reduces overall cycle times.

  • Versatile Material Support: Recommended for structural and carbon steels under HRC30, as well as ISO M materials (Stainless Steel like SUS304, SUS316) known for high toughness and difficult chip breaking.

  • Standard Build Quality: Built with MG0.6 micro-grain carbide and G10 coating, supporting consistent machining up to HRC55. It offers dependable wear resistance for everyday manufacturing tasks.

  • Balanced Cutting Performance: The 35-degree helix angle balances material removal and tool rigidity, essential for minimizing the vibration and deflection often seen in long flute tools.

【Applications & Usage】

  • Primary Applications: Ideal for large-depth profiling, deep slotting, and side milling of precision components.

  • Recommended Materials:

    • ISO P (Structural, Carbon, and Alloy Steel): Best for general steel machining under HRC30.

    • ISO M (Stainless Steel): Reliable performance for tough and stringy materials.
