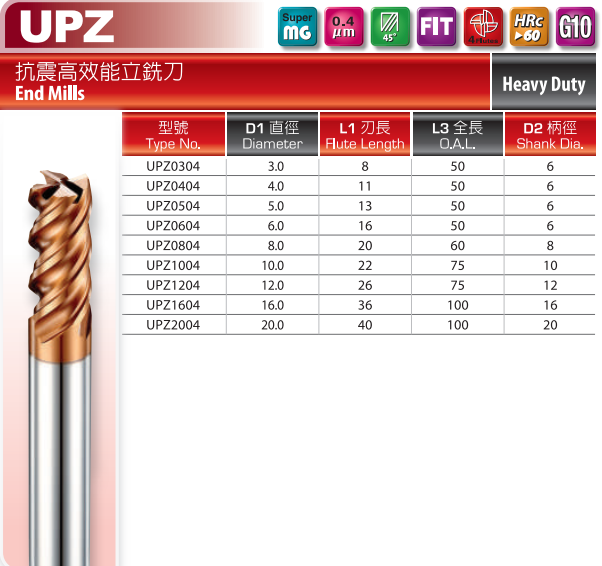

AVQDHUPZSolid Carbide Unequal Flute Spacing & Variable Helix End Mill UPZ已售出10個Solid Carbide Unequal Flute Spacing & Variable Helix End Mill UPZ is a Taiwan-made solid carbide end mill, suitable for general milling, profiling and slotting. Available in diameter 3~20mm, flute length 8~40mm, overall length 50~100mm, 4 flutes. G10-coated edge for wear/heat resistance and longer tool life. Machines carbon & alloy steel, stainless steel, up to HRC60. An ideal choice for machining hardened or high-hardness mold steel.
規格
請選擇規格 (可輸入關鍵字快速搜尋)
數量
最低購買數量：1
$ 758 ~ $ 9,263
商品分類
Cutting ToolsEnd MillsFlat End Mill
Solid Carbide Unequal Flute Spacing & Variable Helix End Mill UPZ
標籤

【Product Name】The UPZ Series End Mill (Product Code: AVQDHUPZ) is a high-performance tool engineered with anti-vibration features, primarily addressing chatter marks and tool breakage caused by resonance during stainless steel and alloy steel machining.

【Key Features & Benefits】

  • Large Helix & Anti-Vibration: Features a 45-degree helix angle and unequal division design to disrupt cutting frequencies. This effectively suppresses vibration and ensures superior surface finish even during aggressive cutting.

  • Versatile Material Support: Recommended for structural and carbon steels under HRC30, and specifically optimized for ISO M materials (Stainless Steel like SUS304) known for high ductility and difficult chip control.

  • Premium Material Specs: Built with SMG0.4 carbide and G10 coating, capable of handling up to HRC60. This ensures the edge toughness and wear resistance needed for continuous high-load tasks.

  • Practical Choice for Efficiency: Due to its excellent dampening properties, it is highly recommended for trochoidal milling or deep side milling, protecting the machine spindle while maintaining productivity.

【Applications & Usage】

  • Primary Applications: Ideal for high-efficiency profiling, slotting, and side milling of precision components.

  • Recommended Materials:

    • ISO M (Stainless Steel, SUS304): Tackles high-ductility materials and resonance issues.

    • ISO P (Structural, Carbon, and Alloy Steel): Best for general steel machining under HRC30 where stability is prioritized.
