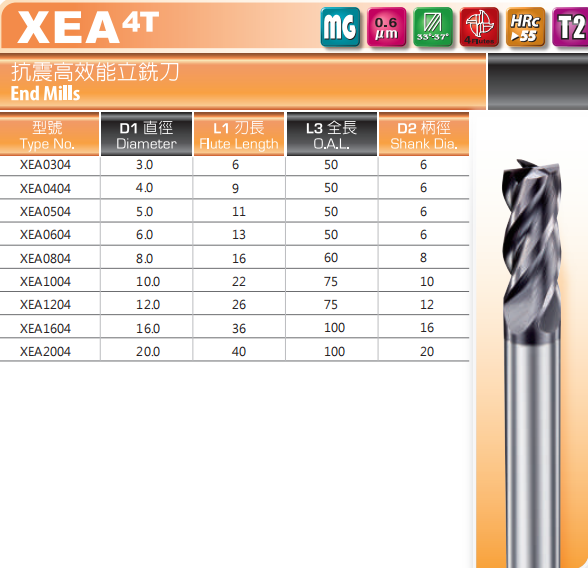

AVQDHXEASolid Carbide Unequal Flute Spacing & Variable Helix End Mill XEA已售出0個Solid Carbide Unequal Flute Spacing & Variable Helix End Mill XEA is a Taiwan-made solid carbide end mill, suitable for general milling, profiling and slotting. Available in diameter 3~20mm, flute length 6~40mm, overall length 50~100mm, 4 flutes. T2-coated edge for wear/heat resistance and longer tool life. Machines carbon & alloy steel, up to HRC55. An ideal choice for machining hardened or high-hardness mold steel.
規格
請選擇規格 (可輸入關鍵字快速搜尋)
數量
最低購買數量：1
$ 400 ~ $ 7,158
商品分類
Cutting ToolsEnd MillsFlat End Mill
Solid Carbide Unequal Flute Spacing & Variable Helix End Mill XEA
標籤
Variable Pitch End Mill
High Speed Machining
Anti-Vibration
Trochoidal Machining

【Product Name】The XEA Series End Mill (Product Code: AVQDHXEA) is a high-performance tool engineered with anti-vibration features, primarily addressing the noise and chatter marks caused by resonance during steel machining.

【Key Features & Benefits】

  • Unequal Division Technology: Features unequal division edges and a 33~37 degree helix angle to disrupt cutting frequencies. This effectively suppresses vibration and ensures a stable machining process.

  • Optimized for P-class Steel: Recommended for structural steel, carbon steel, and alloy steel under HRC30. It protects the machine spindle while maintaining a high material removal rate.

  • Reliable Material Specs: Built with MG0.6 carbide and T2 coating, capable of handling up to HRC55. This combination offers dependable wear resistance for high-volume production.

  • Practical Choice: Due to its dampening properties, it is highly recommended for trochoidal milling or high-feed side milling, balancing efficiency and tool life.

【Applications & Usage】

  • Primary Applications: Ideal for high-efficiency profiling, slotting, and side milling where vibration control is essential.

  • Recommended Materials: ISO P (Structural Steel, Carbon Steel, Alloy Steel). Specially recommended for materials under HRC30 for smooth and quiet operation.
