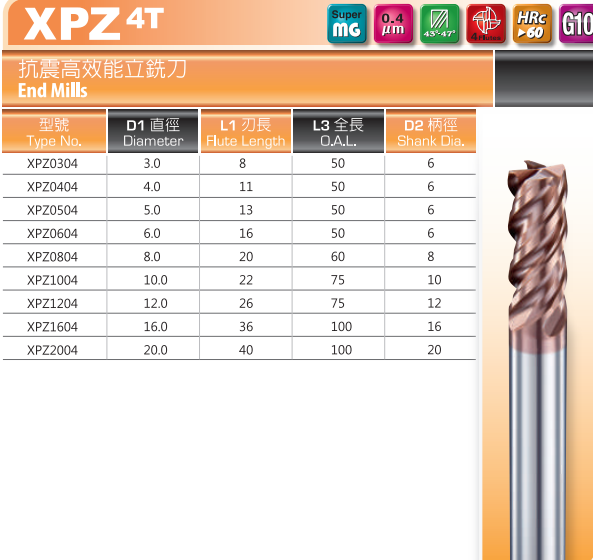

AVQDHXPZSolid Carbide Unequal Flute Spacing & Variable Helix End Mill XPZ已售出0個Solid Carbide Unequal Flute Spacing & Variable Helix End Mill XPZ is a Taiwan-made solid carbide end mill, suitable for general milling, profiling and slotting. Available in diameter 3~20mm, flute length 8~40mm, overall length 50~100mm, 4 flutes. G10-coated edge for wear/heat resistance and longer tool life. Machines carbon & alloy steel, stainless steel, up to HRC60. An ideal choice for machining hardened or high-hardness mold steel.
規格
請選擇規格 (可輸入關鍵字快速搜尋)
數量
最低購買數量：1
$ 830 ~ $ 10,000
商品分類
Cutting ToolsEnd MillsFlat End Mill
Solid Carbide Unequal Flute Spacing & Variable Helix End Mill XPZ
標籤
Variable Pitch End Mill
High Speed Machining
Anti-Vibration
Trochoidal Machining

【Product Name】The XPZ Series End Mill (Product Code: AVQDHXPZ) is a high-performance tool engineered with anti-vibration technology, primarily addressing the noise, chatter marks, and inconsistent tool life caused by resonance during steel and stainless steel machining.

【Key Features & Benefits】

  • Unequal Division Anti-Vibration: Features unequal division edges and a 43~47 degree variable helix angle to disrupt cutting frequencies. This effectively suppresses vibration and ensures a superior surface finish even during high-feed operations.

  • Versatile Material Support: Recommended for structural and carbon steels under HRC30, and specially optimized for ISO M materials (Stainless Steel like SUS304) known for high ductility and difficult chip control.

  • Premium Material Specs: Built with SMG0.4 micro-grain carbide and G10 coating, capable of handling up to HRC60. This combination offers the balance of toughness and wear resistance needed for continuous high-load tasks.

  • Practical Choice for Efficiency: Due to its excellent dampening properties, it is highly recommended for trochoidal milling or deep side milling, protecting the machine spindle while maintaining production quality.

【Applications & Usage】

  • Primary Applications: Ideal for high-efficiency profiling, slotting, and side milling where surface integrity and vibration control are essential.

  • Recommended Materials:

    • ISO M (Stainless Steel, SUS304): Tackles high-ductility materials and resonance issues.

    • ISO P (Structural, Carbon, and Alloy Steel): Best for general steel machining under HRC30 where stability is a priority.
