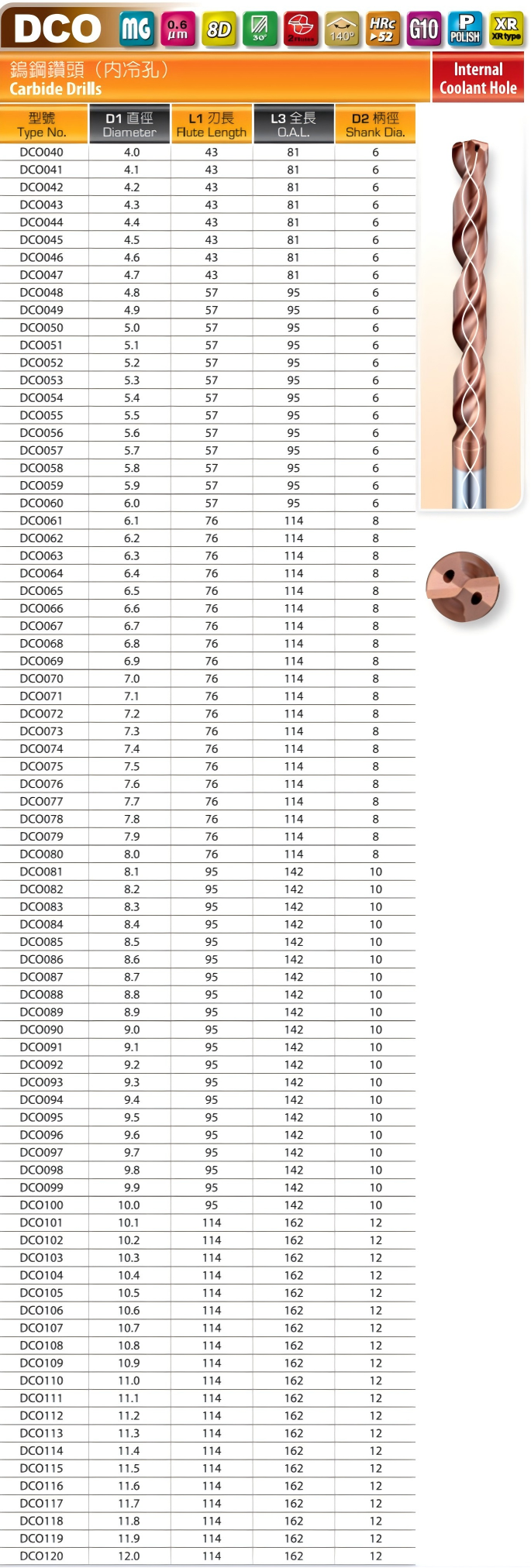

AYCDHDCOSolid Carbide Through-Coolant Drill DCO已售出2個Solid Carbide Through-Coolant Drill DCO, an MG0.6 solid carbide drill built for 8xD deep holes, with internal coolant securing chip flow and heat removal. Diameter 4~12mm, overall length 81~162mm, 9~12xD, available in 81 sizes. G10 coating boosts wear resistance and tool life. Drills carbon steel, alloy steel and cast iron up to HRC52. Taiwanese brand, consistent quality.
規格
請選擇規格 (可輸入關鍵字快速搜尋)
數量
最低購買數量：1
$ 3,789 ~ $ 7,895
商品分類
Cutting ToolsDrill bitEnd Mill Shank Drill
Solid Carbide Through-Coolant Drill DCO
標籤
Through-Coolant Drill
8xD Drilling Depth

【Product Name】The DHF MG 0.6 8D Deep-Hole Drill (SKU: AYCDHDCO) is a precision tool engineered for high-stability deep hole processing. It effectively addresses the challenges of chip evacuation, heat buildup, and hole deviation in 8-times diameter (8D) applications.

【Key Features & Benefits】

  • 8D Depth Capacity & Internal Coolant: Features high-pressure internal coolant ports that force chips out of deep 8D holes. This prevents chip packing and premature tool failure—a reliable recommendation for automated deep-hole production.

  • G10 Wear-Resistant Coating: Enhanced with G10 coating, specifically optimized for abrasive materials like cast iron. It offers superior surface lubricity and hardness up to HRC52, extending tool life in dry or wet environments.

  • Premium MG 0.6 Micro-Grain Substrate: Crafted from ultra-fine MG 0.6 carbide to maintain high rigidity during long-reach machining, effectively dampening harmonic vibrations and ensuring hole straightness.

  • 140° Point Angle for Precision: The 140-degree point angle improves self-centering capability and reduces axial thrust, ensuring excellent dimensional stability for the entire hole length.

【Applications & Usage】

  • Primary Applications: Specifically designed for 8x diameter (8D) deep hole drilling. Ideal for hydraulic components, mold cooling channels, and automotive engine parts.

  • Recommended Materials:

    • ISO P (Carbon/Alloy Steel): For reliable deep drilling in steels under HRC30.

    • ISO K (Cast Iron): Provides exceptional durability against abrasive powdery chips.
